Chapter 2: BIOS setup

2.4.5

Chipset

The Chipset menu allows you to change the advanced chipset settings. Select an

item then press to display the sub-menu.

Advanced Chipset Settings

WARMING: Setting wrong values in below sections

may cause system to malfunction.

North Bridge Configuration

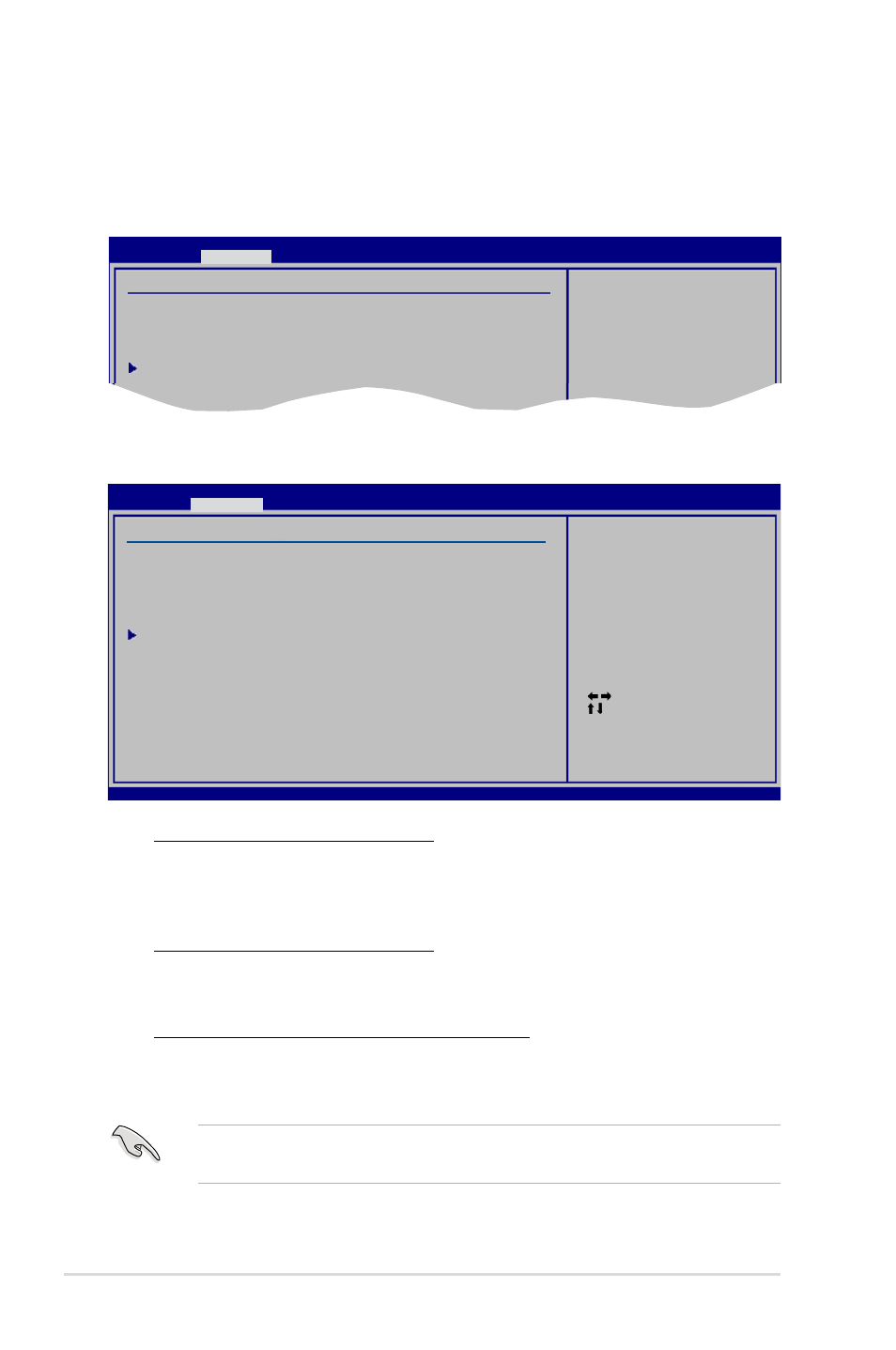

BIOS SETUP UTILITY

Advanced

Configure North Bridge

features.

North Bridge Configuration

Select Screen

Select Item

+-

Change Option

F1 General Help

F10 Save and Exit

ESC Exit

v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.

BIOS SETUP UTILITY

Advanced

ENABLE: Allow

remapping of

overlapped PCI memory

above the total

physical memory.

DISABLE: Do not allow

remapping of memory.

North Bridge Chipset Configuration

Memory Remap Feature

[Enabled]

Initiate Graphic Adapter

[PEG/PCI]

Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Control

[Auto]

PEG Port Force x1

[Disabled]

Video Function Configuration

Memory Remap Feature [Enabled]

Allows you to enabled or disable the remapping of the overlapped PCI

memory above the total physical memory. Enable this option only when you

install 64-bit operating system. Configuration options: [Disabled] [Enabled]
Initiate Graphic Adapter [PEG/PCI]

Allows you to decide which graphics controller to use as the primary boot device.

Configuration options: [IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI]
Internal Graphics Mode Select [Enabled, 8MB]

Allows you to decide whether to use the internal graphics device and select

the amount of memory used by the device.

Configuration options: [Disabled] [Enabled, 1MB] [Enabled, 8MB]

Set this item to [Disabled] if you intend to install a PCIE x16 graphics card to the

PCIE x16 slot.
