1-18

Chapter 1: Product Introduction

Channel

Sockets

Channel A

DIMM_A1 and DIMM_A2

Channel B

DIMM_B1 and DIMM_B2

1.7

System memory

1.7.1

Overview

The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory

Modules (DIMM) sockets.

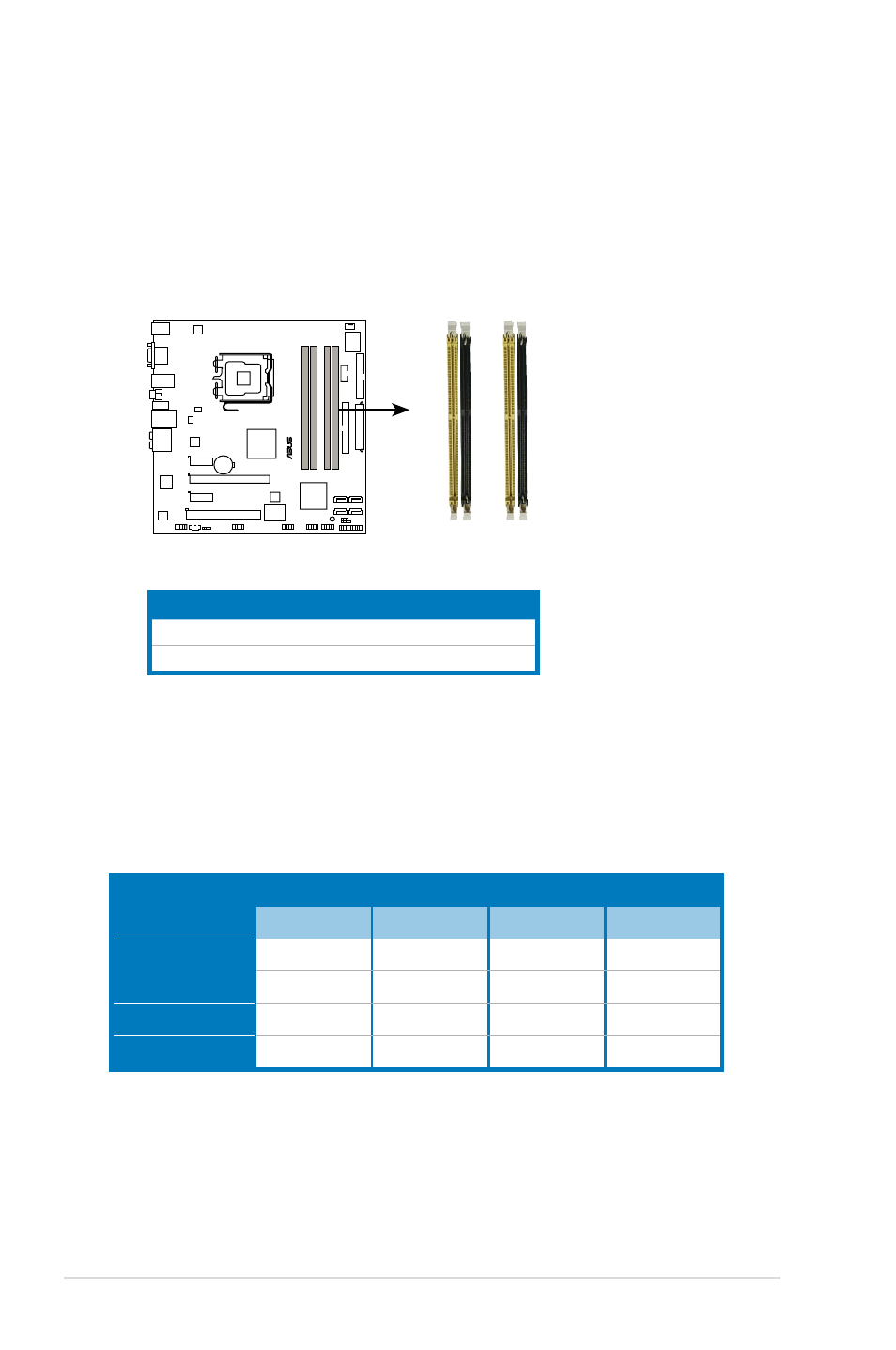

The figure illustrates the location of the DDR2 DIMM sockets:

P

5

E

-V

M

S

E

®

P5E-VM SE 240-pin DDR2 DIMM sockets

DIMM_A2

DIMM_A1

DIMM_B2

DIMM_B1

1.7.2

Memory configurations

You may install 256 MB, 512 MB, 1 GB, and 2 GB unbuffered non-ECC DDR2

DIMMs into the DIMM sockets.

Recommended Memory Configurations

Mode

Sockets

DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2

Single-Channel

Populated

Populated

Dual-channel (1)

Populated

Populated

Dual-channel (2)

Populated

Populated

Populated

Populated
