ASUS B85M-G 1-17

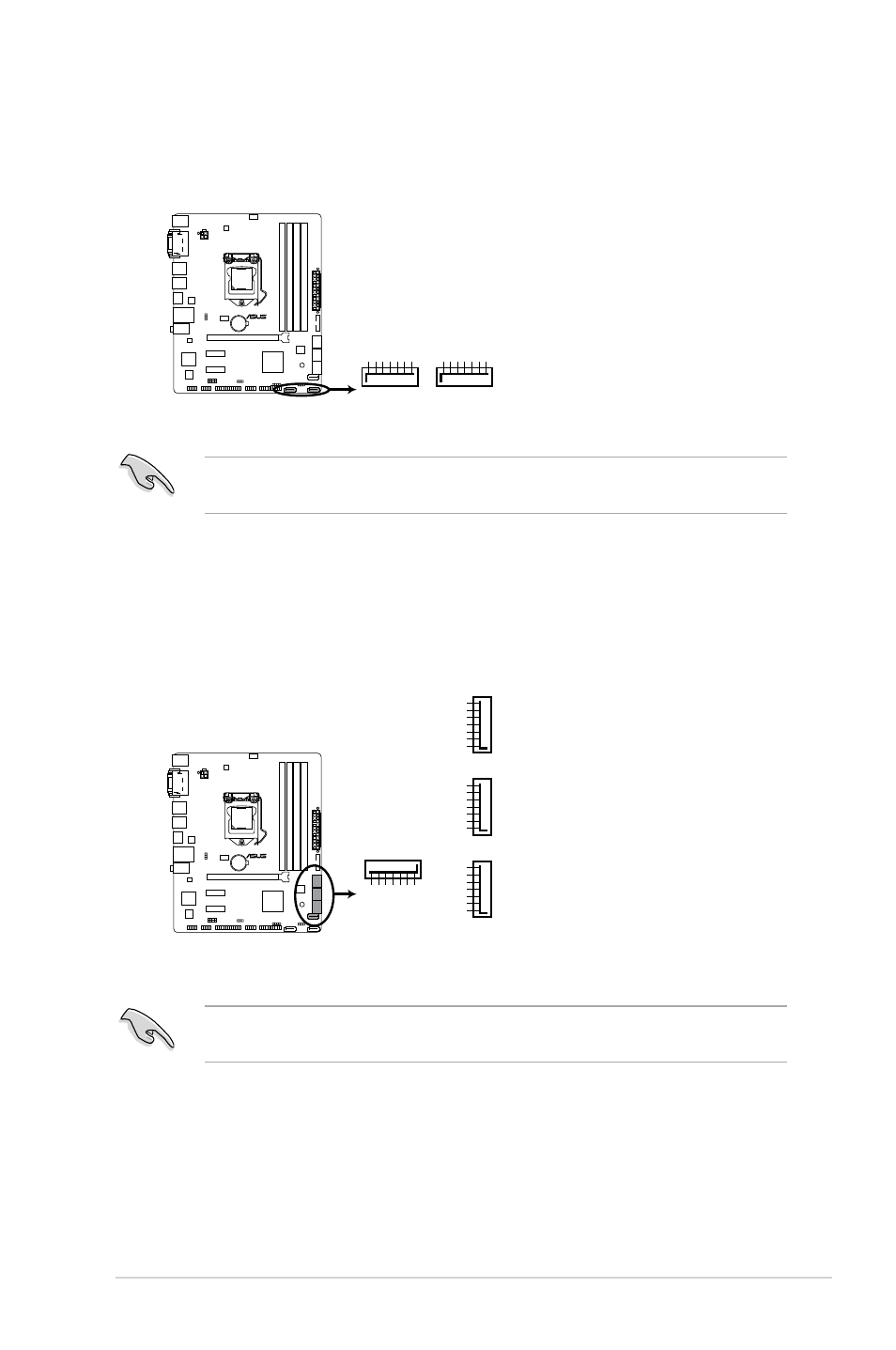

8. Intel ® B85 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4 [yellow])
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s
signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section 2.6.3 SATA Configuration for details.
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA6G_2
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA6G_3 SATA6G_4
GND
RSATA_TXP4 RSATA_TXN4
GND
RSATA_RXN4 RSATA_RXP4
GND
B85M-G
B85M-G Intel ® SATA 6.0Gb/s connectors
7. Intel ® B85 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~2 [black])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section 2.6.3 SATA Configuration for details.
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA3G_1
GND RSATA_RXP2 RSATA_RXN2 GND RSATA_TXN2 RSATA_TXP2 GND
SATA3G_2
B85M-G
B85M-G Intel ® SATA 3.0Gb/s connectors
