1-12 Chapter 1: Product introduction
1.7 Connectors

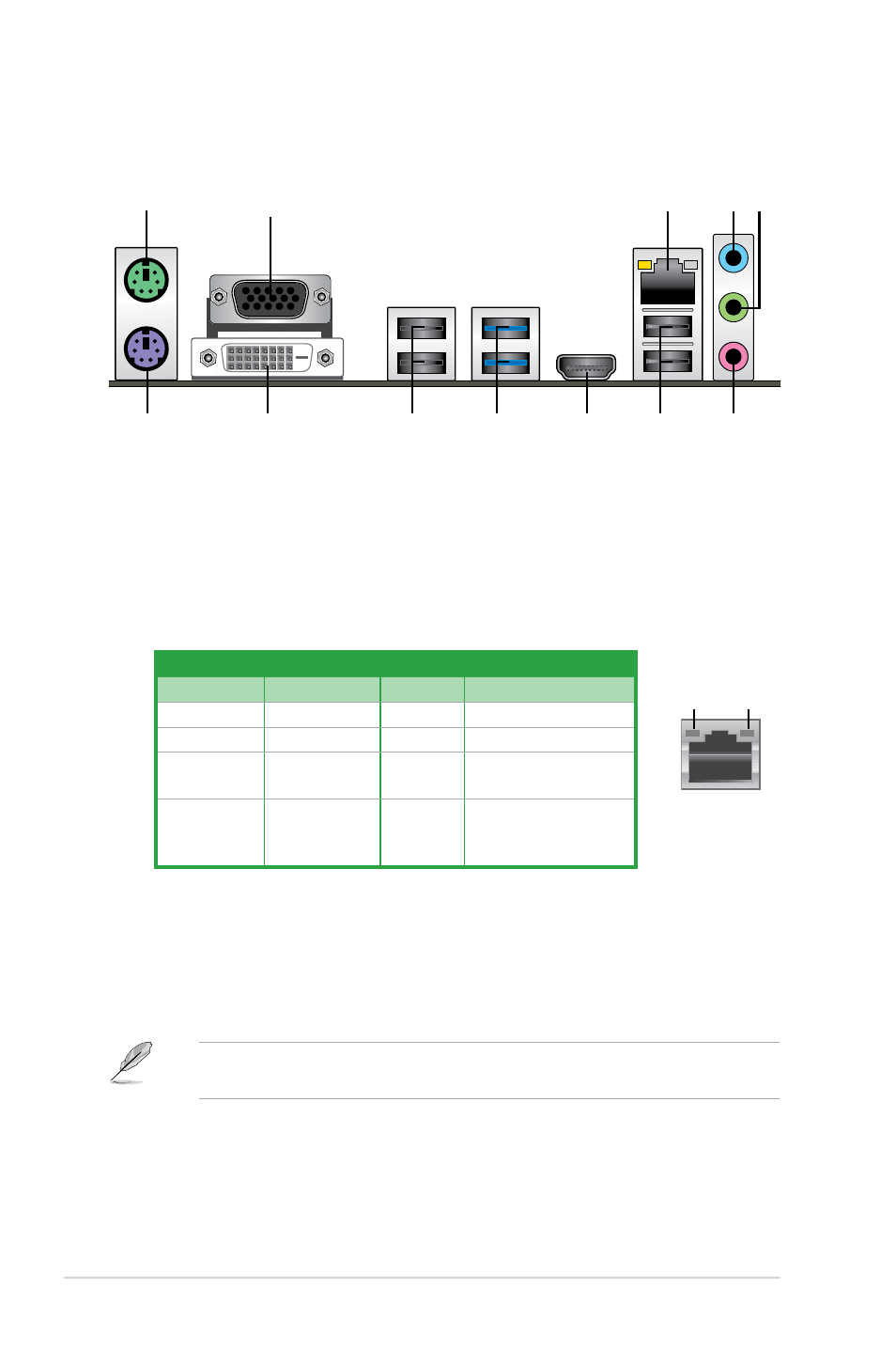

1.7.1 Rear panel connectors
LAN port
Speed
LED
Activity Link
LED
4 5 3
6 9 10 7
1
12
2
11 8
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange
(Blinking)
Data activity GREEN 1Gbps connection
Orange
(Blinking
then steady)
Ready to
wake up from
S5 mode
Refer to the audio configuration table for the function of the audio ports in 2, 4, 6, or 8-
channel configuration.
5. Line Out port (lime). This port connects to a headphone or a speaker. In the 4, 6 and
8-channel configurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
