1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-14
2. Keyboard and USB device wakeup (KB_USBPWB) 1-11
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-16
4. Intel ® LGA1150 CPU socket 1-3
5. DDR3 DIMM slots 1-7
6. USB 3.0 connector (20-1 pin USB3_12) 1-18
7. Onboard LED (SB_PWR) 1-20
8. Intel ® B85 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4 [yellow]) 1-17
9. Clear RTC RAM (3-pin CLRTC) 1-10
10. Intel ® B85 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~2 [black]) 1-17
11. Speaker connector (4-pin SPEAKER) 1-16
12. System panel connector (10-1 pin F_PANEL) 1-19
13. USB 2.0 connectors (10-1 pin USB1112, USB1314) 1-18
14. USB device wake-up (USBPWF) 1-11
15. LPT connector (26-1 pin LPT) 1-14
16. Chassis intrusion connector (4-1 pin CHASSIS) 1-20
17. Serial port connectors (10-1 pin COM) 1-15
18. Front panel audio connector (10-1 pin AAFP) 1-15
19. Digital audio connector (4-1 pin SPDIF_OUT) 1-19
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel ® 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium ® , Celeron ® processors.

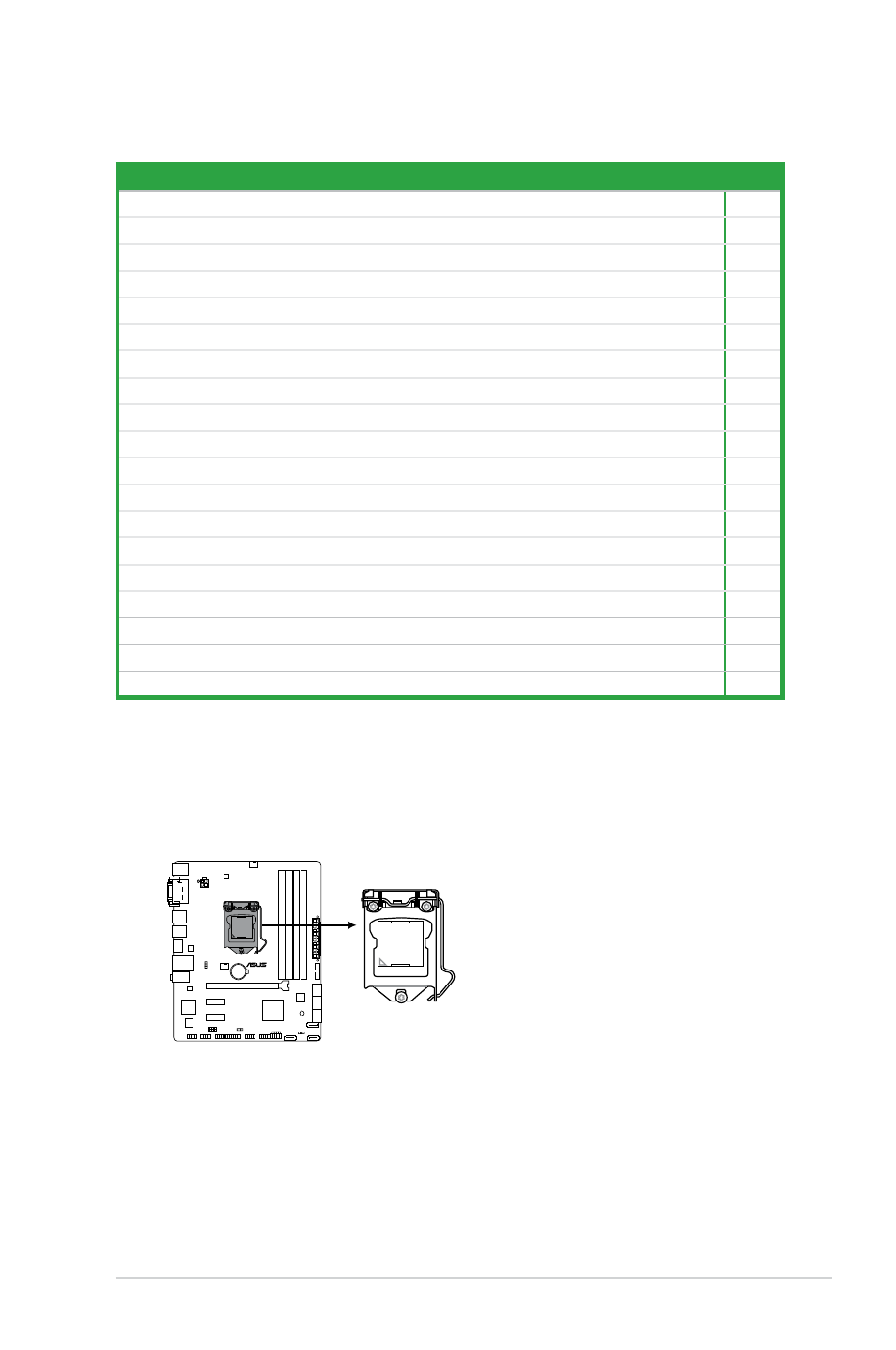

B85M-G
B85M-G CPU socket LGA1150
