ASUS P4P800S SE motherboard user guide 1-25
P4P800S SE
®

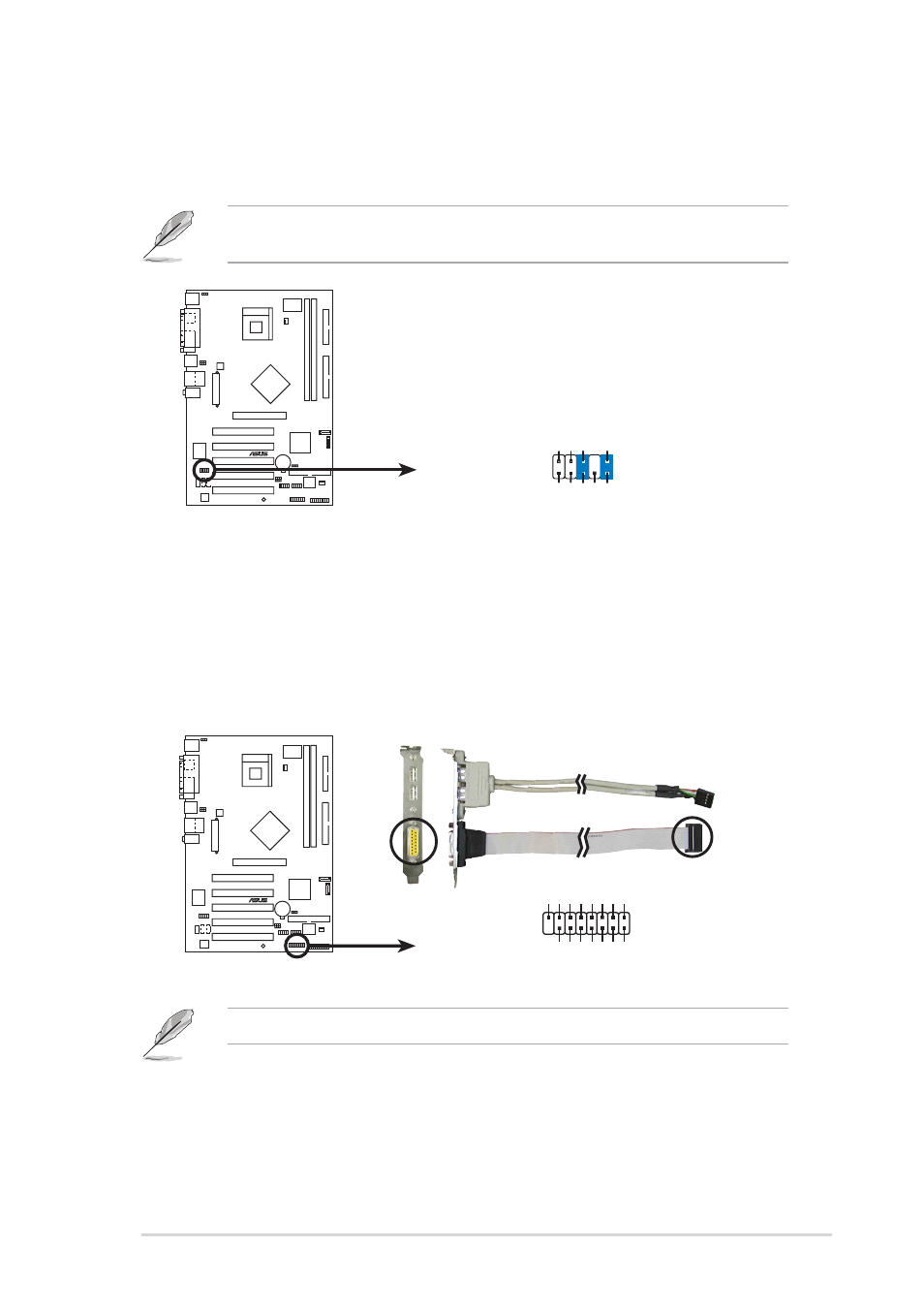

P4P800S SE Front Panel Audio Connector
FP_AUDIO1
BLINE_OUT_L
MIC2
Line out_R Line out_L
BLINE_OUT_R
NC
MICPWR
+5V
A
AGND
P4P800S SE
®
P4P800S SE Game Connector
GAME1
+5V
+5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2
MIDI_IN
J1B1 J1CX GND GND J1CY J1B2 +5V
10. GAME/MIDI connector (16-1 pin GAME1)
This connector supports a GAME/MIDI module. Connect the GAME/MIDI cable
with yellow connector to the yellow header onboard. The GAME/MIDI port on
the module connects a joystick or a game pad for playing games, and MIDI
devices for playing or editing audio files.
9. Front panel audio connector (10-1 pin FP_AUDIO1)
This is an interface for the Intel front panel audio cable that allow convenient
connection and control of audio devices.
Remove the caps from the Line out_R, BLINE_OUT_R, Line out_L and
BLINE_OUT_L jumpers if you want to install an Intel front panel audio cable.
The GAME/MIDI module is purchased separately.
