2.3.3

CPU heatsink and fan assembly installation

Apply the Thermal Interface

Material to the CPU heatsink

and CPU before you install the

heatsink and fan if necessary.

2

B

B

A

A

1

3

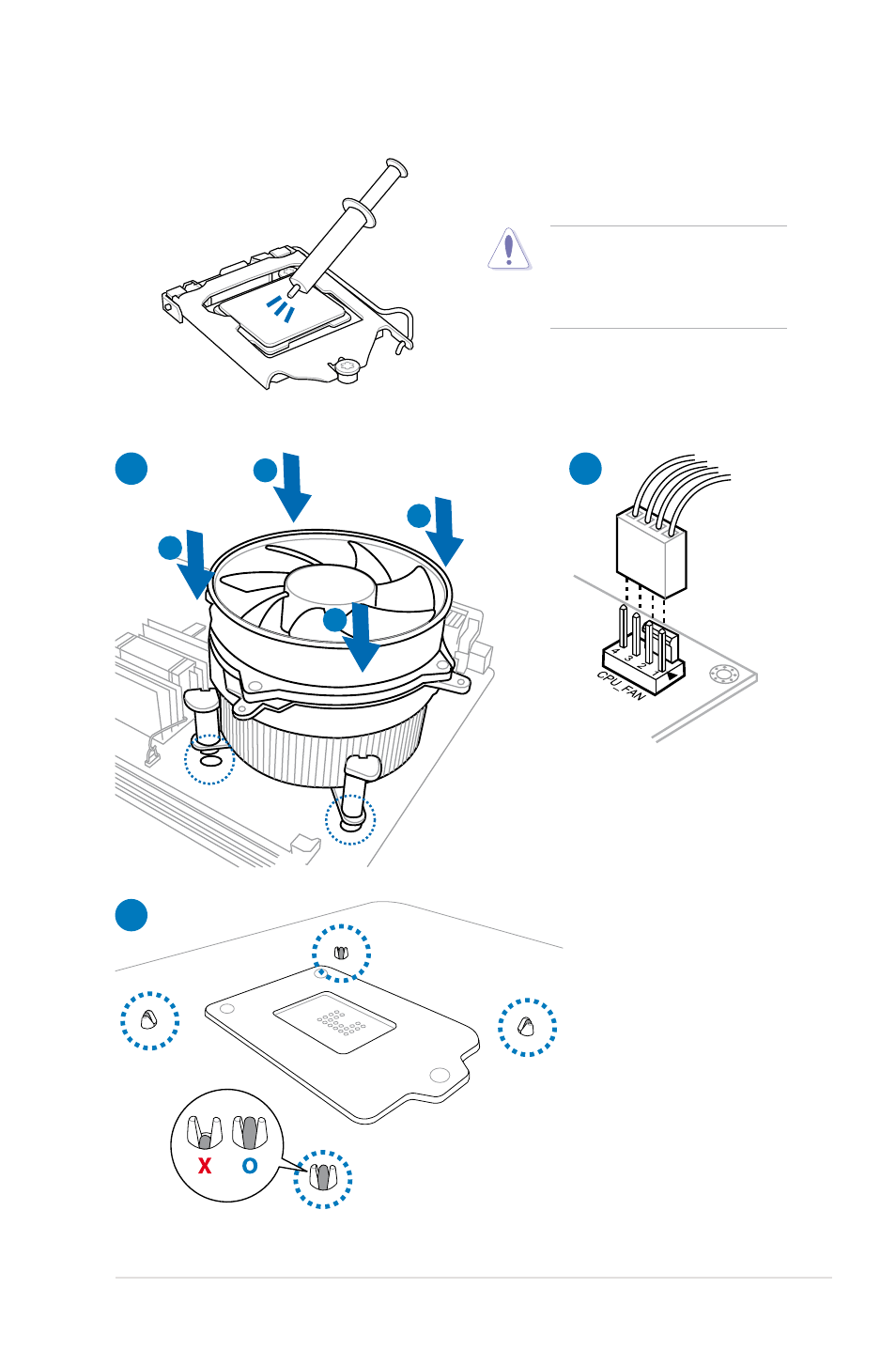

To install the CPU heatsink and fan assembly

ASUS Maximus IV GENE-Z

2-39
