Chapter 2: Basic Installation

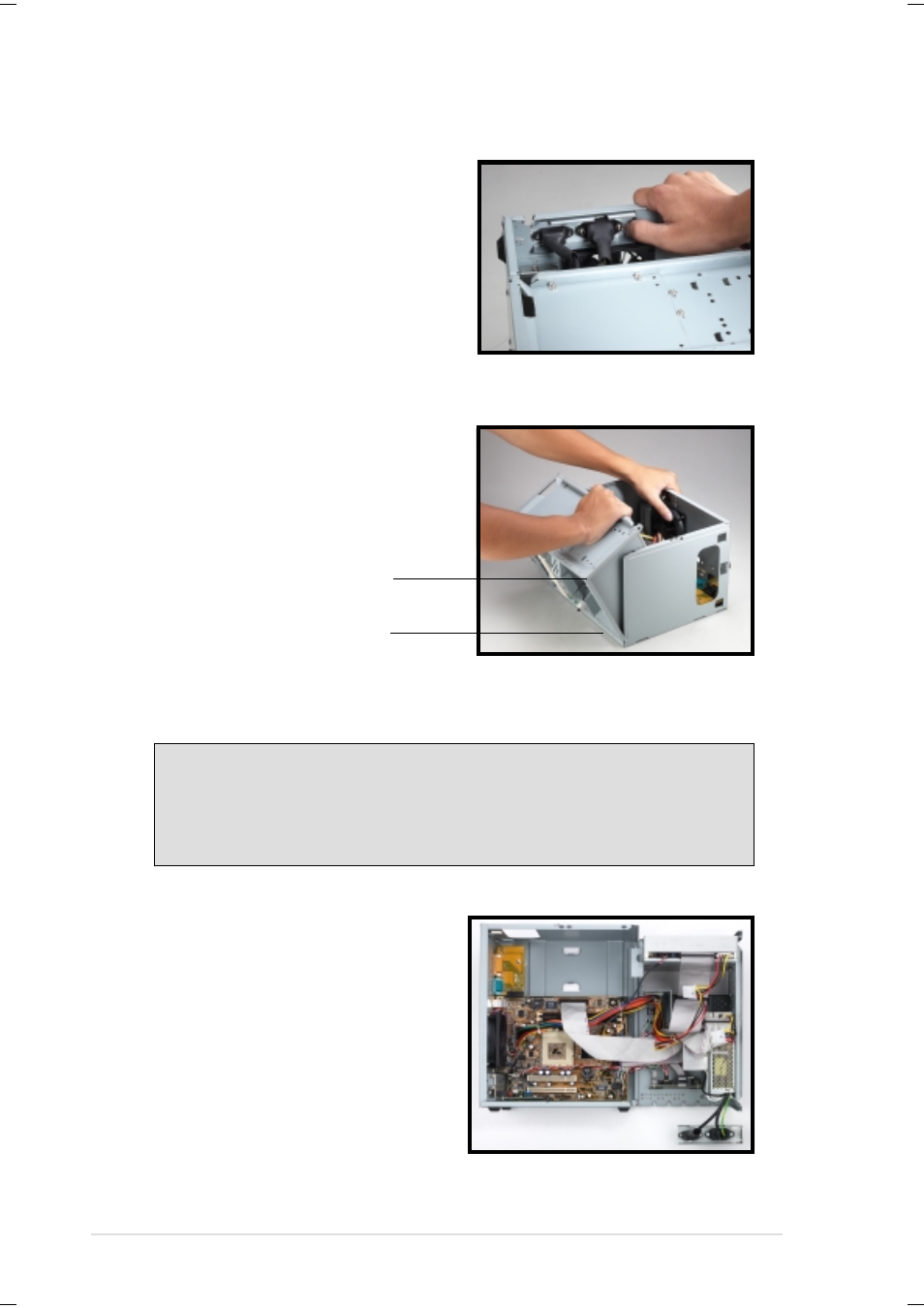

4. Unlatch the drive frame by

pulling it outward.

5. Carefully lay the drive

frame alongside the main
chassis frame.

2.2 Detach the Drive Frame

3. Place your thumb on the right

edge of the power socket
module, and slide it to the right
until it is completely detached
the module from the rear
panel.

Swivel Edge

Drive Frame

NOTE

The drive frame has a swivel (hinge-like) edge that is attached
to the main chassis. It is not necessary to completely detach the
drive frame from the chassis when installing components.
