38 Chapter 2: Hardware information
P4S533-VM
®

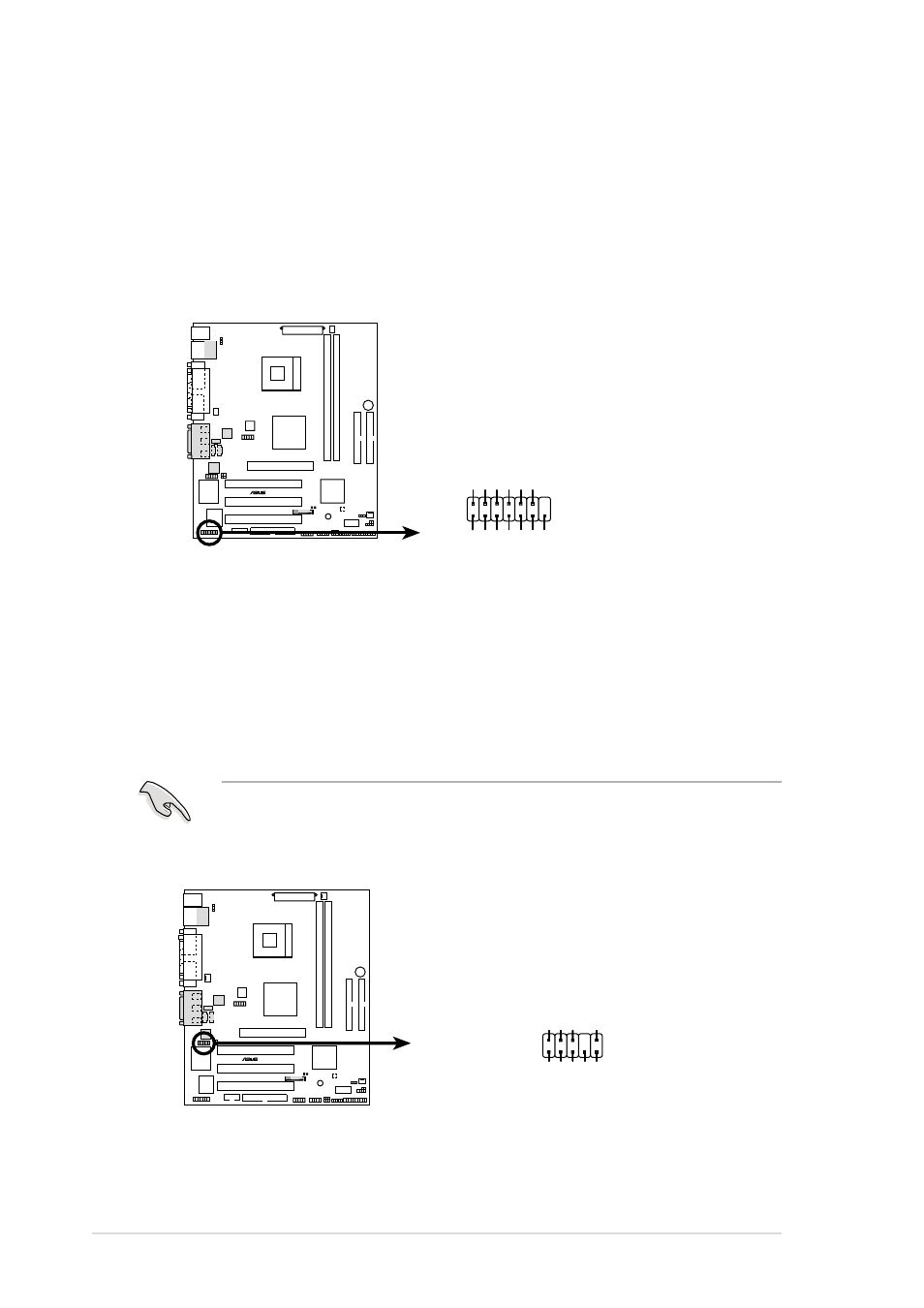

P4S533-VM Intel Panel Connector
FP_AUDIO1
BOUT_L
MIC2
LOUT_R LOUT_L
NC
MICPWR
+5V
A
AGND_A
1
BOUT_R
20. Front panel audio connector (10-1 pin FP_AUDIO1)
(on audio models only)
This is an interface for the Intel ® front panel audio cable that supplies
convenient connection and control of audio devices.
19. Smart Card Reader connector (14-1 pin SMARTCON1) (optional)
This connector accommodates a Smart Card Reader that allows you to
conveniently make transactions such as financial, health care, telephony,
or traveling services through a Smart Card user interface software. When
using this connector, configure the UART2 Use As parameter in BIOS to
set UART2 for use with Smart Card. See section “4.4.2 I/O Device
Configuration” for details.
P4S533-VM
®
P4S533-VM Smartcard
SMARTCON1
1
NC
SCPWR
NC RFU2
NC2 VCC GND
SCIO SCPSNT NC
SCRCLK
NC
SCRST
Ensure that the jumper caps are removed from the FP_LO_SWR and
FP_LO_SWL jumpers if you installed the Intel front panel audio cable.
Refer to page 27 for the location of the audio jumpers.
