36 Chapter 2: Hardware information
16. Internal audio connectors (4-pin CD1, AUX1, MODEM) (optional)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in (such
as a phone) and a mono_out (such as a speaker) between the audio and
a voice modem card.
P4S533-VM
®

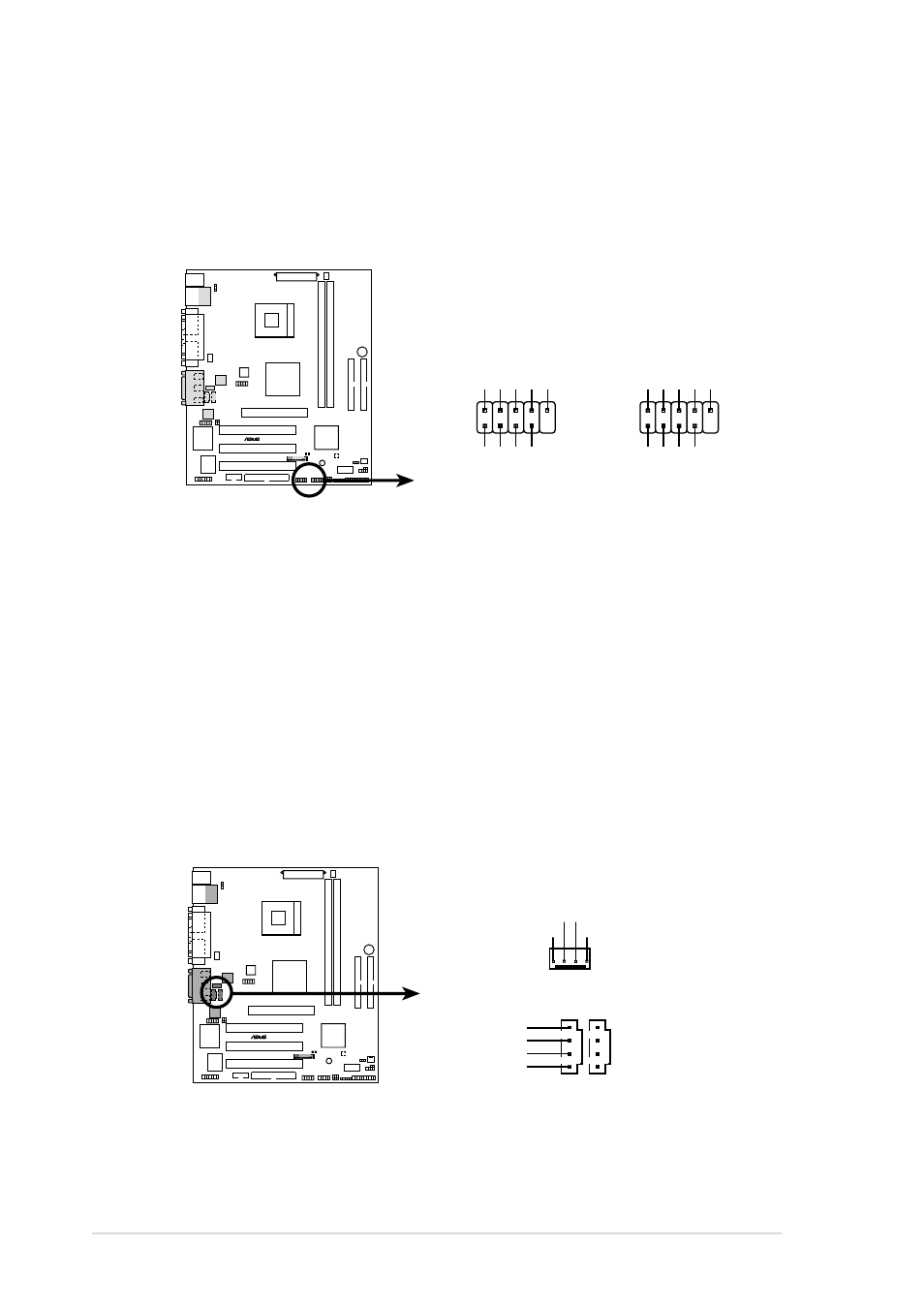

P4S533-VM Internal Audio Connectors
CD1 (Black) AUX1 (White)
MODEM1
Right Audio Channel
Left Audio Channel
Ground
Ground
Modem-Out
Ground
Modem-In
Ground
15. USB header (2x10-1 pin USB_34, _56)
If the USB port connectors on the rear panel are inadequate, a USB header
is available for additional USB port connectors. Connect the bundled 2-port
USB connector set to this header and mount the USB bracket to an open
slot in the chassis.
P4S533-VM
®
P4S533-VM USB Header
USB_34
USB P4- USB P4+
USB Power
GND
1
USB P3- USB P3+ USB Power GND NC
2
9
10
USB_56
USB P4- USB P4+
USB Power
GND
1
USB P3- USB P3+ USB Power GND NC
2
9
10
