ASUS P4S533-VM motherboard user guide 31

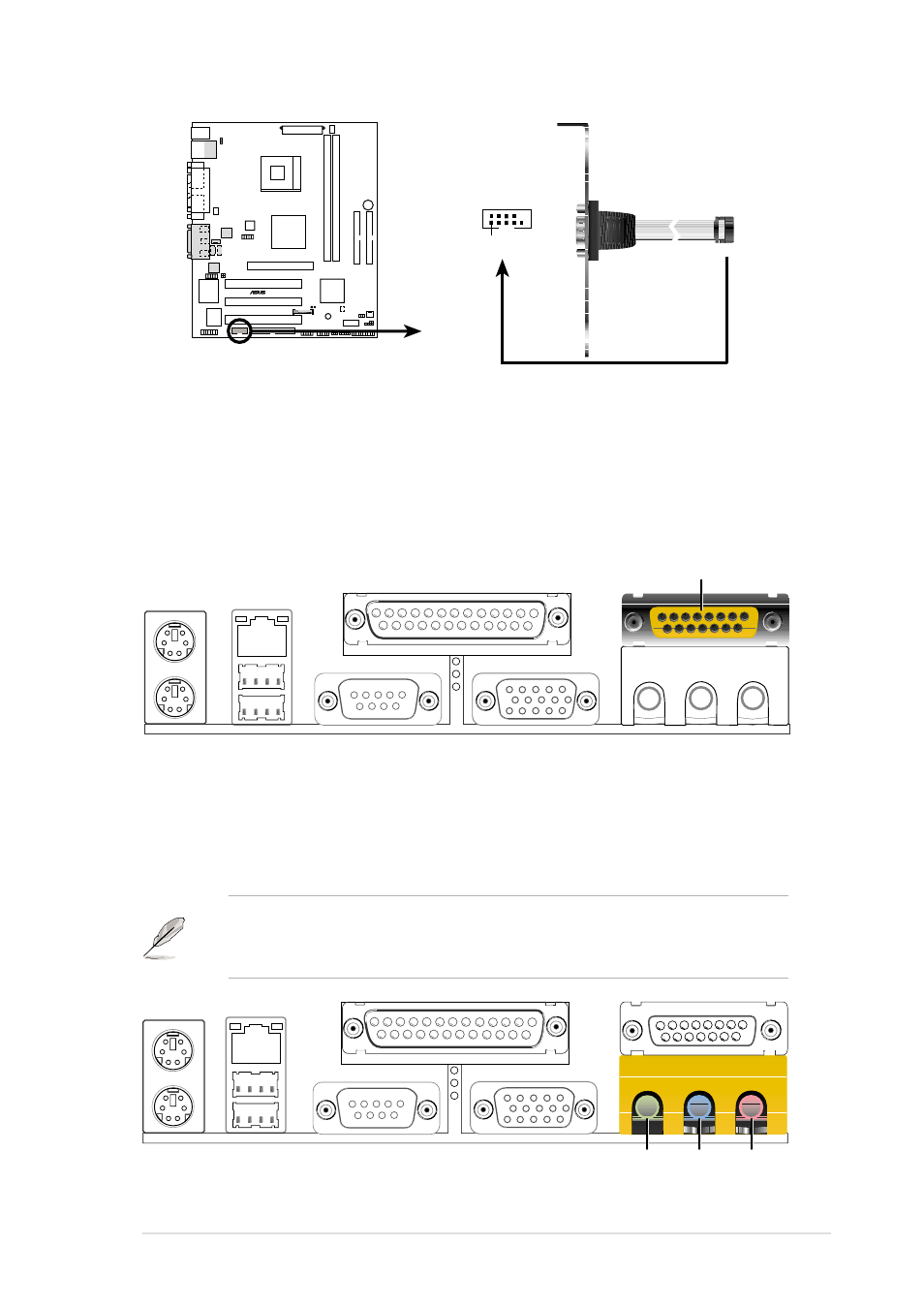

Mic Line In Line Out
1/8" Stereo Audio Connectors
7. Audio Connectors (Three 1/8” AUDIO) (optional)
The Line Out (lime) connects a headphone or speakers. The Line In
(light blue) connects a tape players or other audio sources. The Mic (pink)
connects a microphone.
NOTE! The functions of the audio connectors Line Out, Line In, and Mic
change when the 6-channel audio feature is enabled. Refer to Chapter
5. SOFTWARE SETUP.
Game/MIDI (15-pin female)
6. Game/MIDI Ports (Gold 15-pin GAME_AUDIO) (optional)
This connector supports a joystick or a game pad for playing games, and
MIDI devices for playing or editing audio files.
P4S533-VM
®
P4S533-VM Serial COM2 Bracket
PIN 1
COM2
