3. HARDWARE SETUP

ASUS CUR-DLSR User’s Manual

3. H/W SETUP

Connectors

5) IDE/SCSI Activity LED (2-pin IDELED) (also in Panel Connectors)

This connector supplies power to the cabinet’s activity LED. Read and write
activity by devices connected to the Primary/Secondary IDE and SCSI connectors
cause the LED to light up.

6) Two 68-pin Ultra160 SCSI Connectors (SCSI-A, SCSI-B)

This motherboard has two 68-Pin Ultra160 SCSI connectors; one for each of the
two channels. Each channel can support a maximum of 15 devices as specified
by Ultra160 standards.

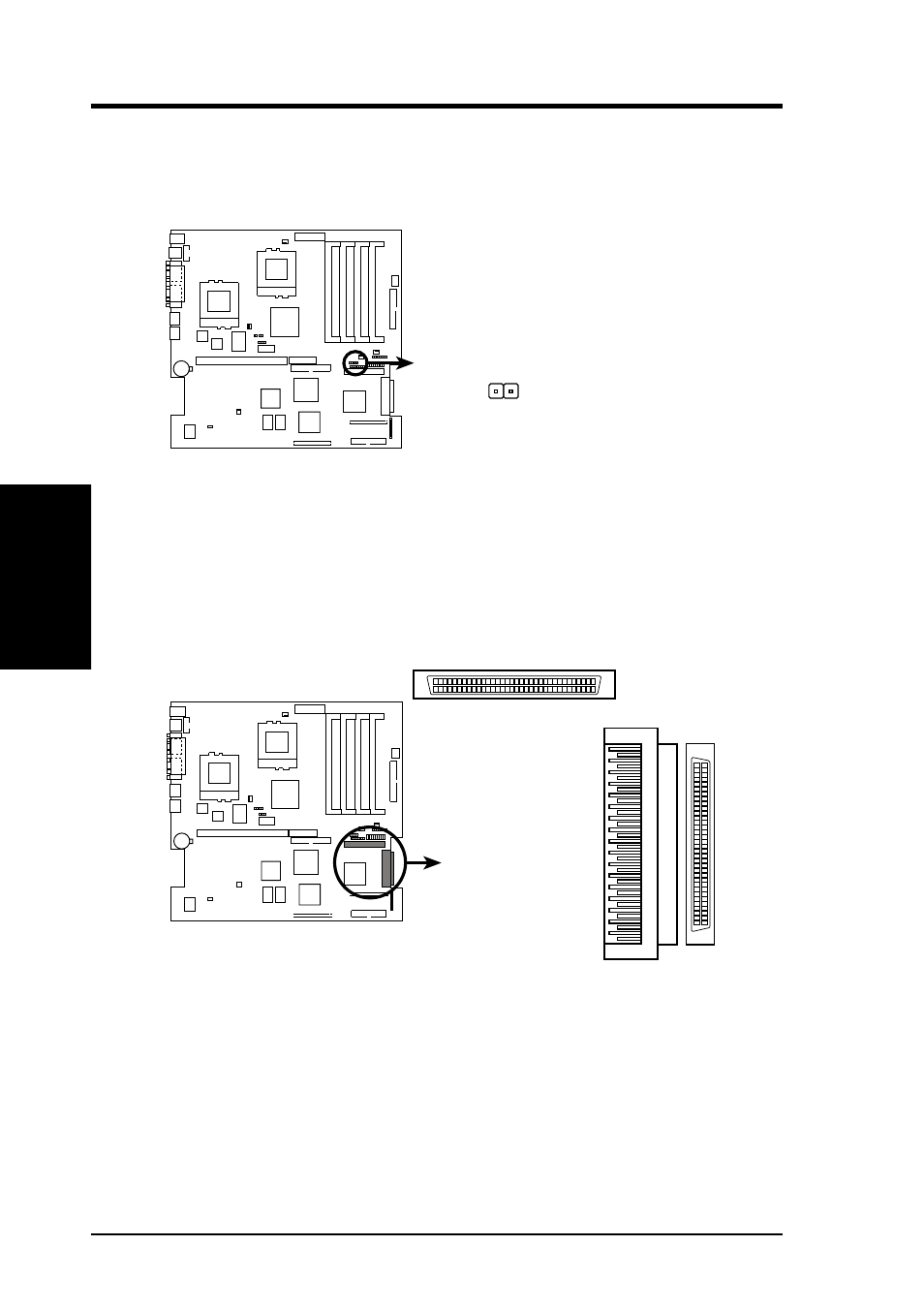

CUR-DLSR

CUR-DLSR IDE Activity LED

IDELED

+ -

*Same as the “HDD Access
LED” in the panel connectors

CUR-DLSR

CUR-DLSR Onboard SCSI Connectors

SCSI-A (Internal)

68-Pin Ultra160/Ultra2-Wide SCSI Connector

SCSI-B (External)

68-Pin Ultra160/
Ultra2-Wide SCSI Connector
