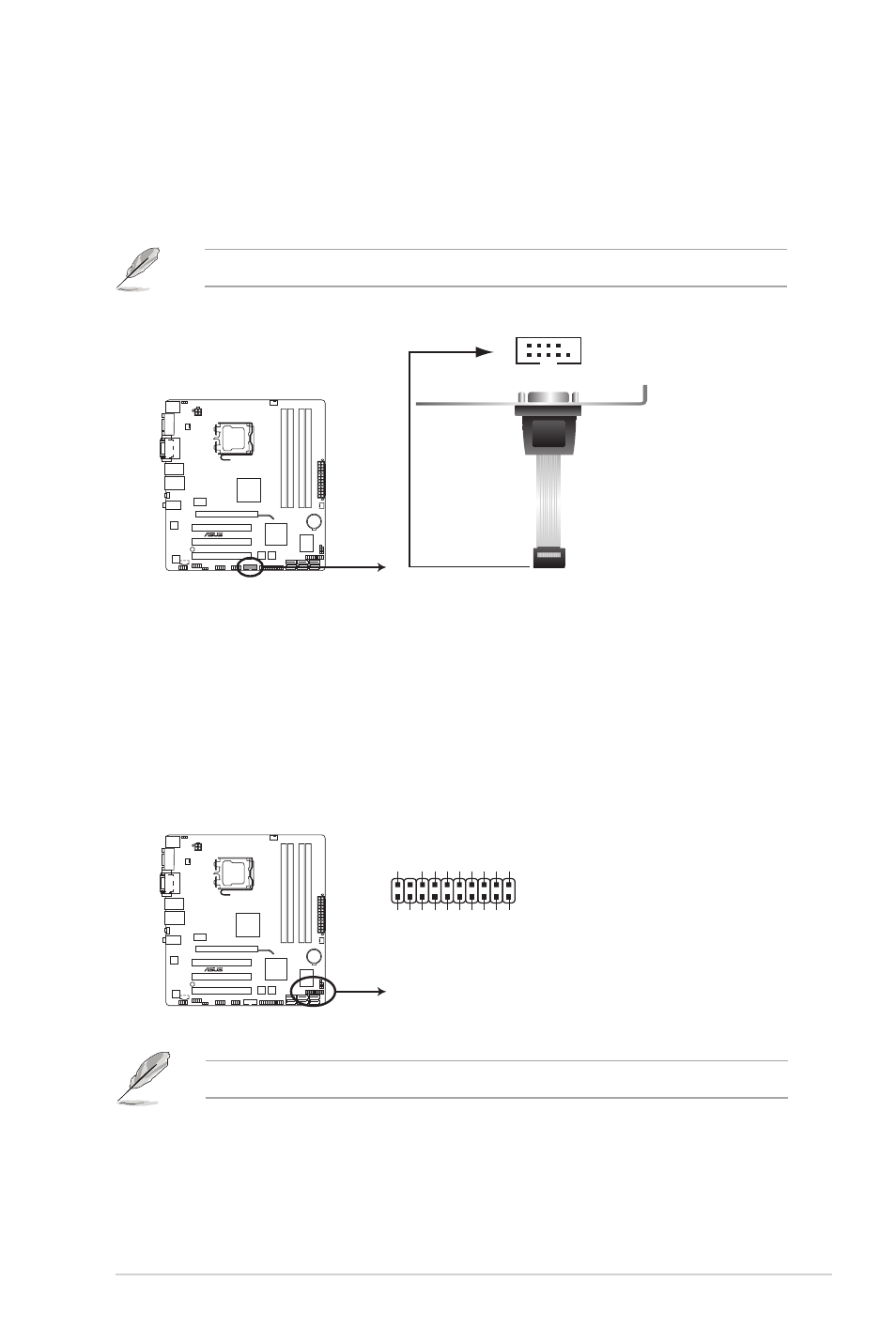

10. Serial port connectors (10-1 pin COM2)
The connector is for a serial (COM) port. Connect the serial port module cable to the
connector, then install the module to a slot opening at the back of the system chassis.
The serial port bracket (COM2) is purchased separately.
P5QL-VM DO
P5QL-VM DO Serial port (COM2) connector
PIN 1
COM2
11. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely
store keys, digital certificates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
P5QL-VM DO
P5QL-VM DO TPM Connector
PIN 1
TPM
GN
D
S_SMBCLIK_MAIN S_SMBCLIK_MAIN
F_LAD2 F_LAD1
GN
D
F_SERIRQ
#
GN
D
C_PCICLK_TPM F_FRAME# S_PLTRST
#
F_LAD
3
+3
V
F_LAD
0
+3
V
+3VSB GND S_PWRDWN#
The TPM module is purchased separately.
1-17 ASUS P5QL-VM DO
