1.10 Connectors

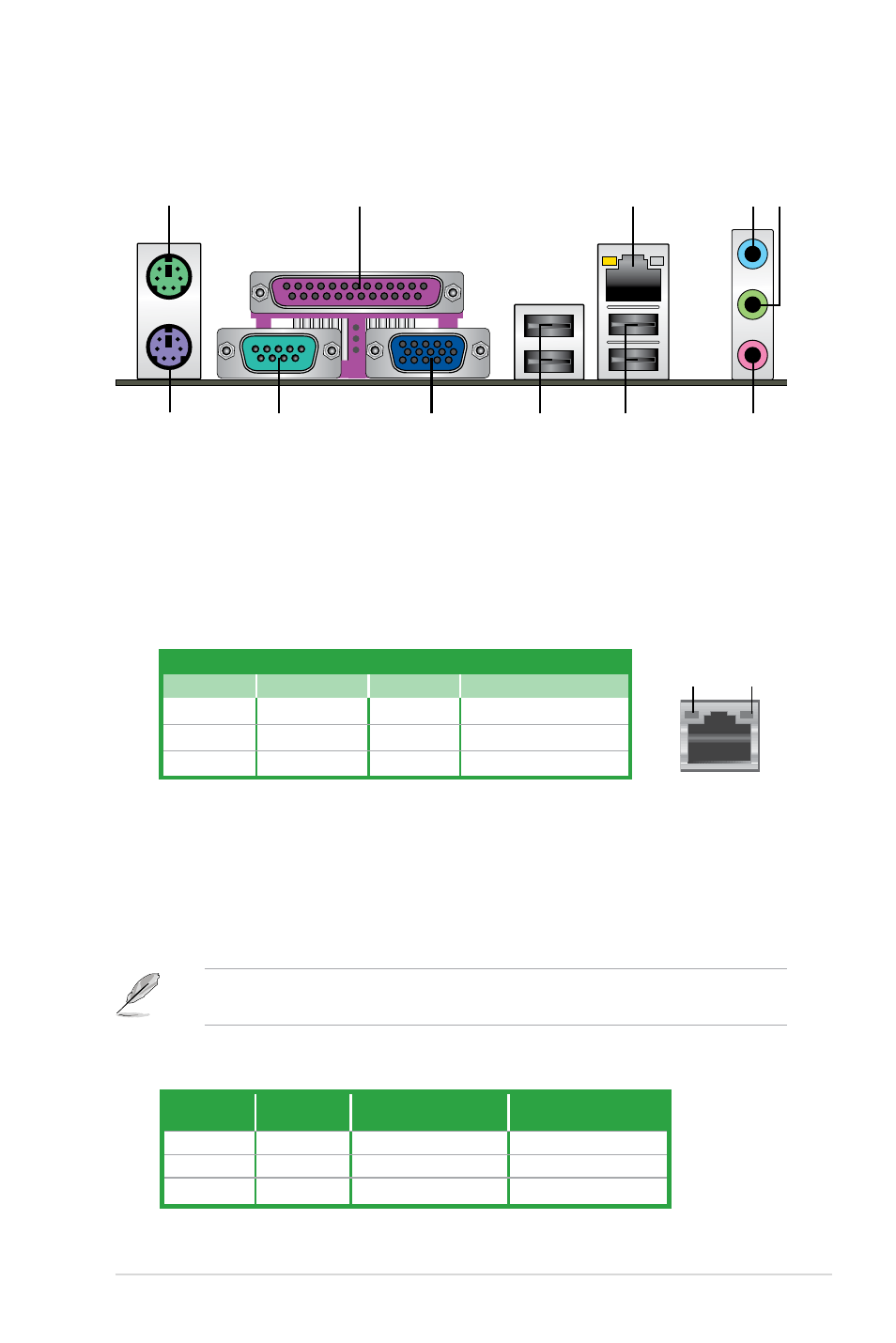

1.10.1 Rear panel ports
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. Supported by RTL8211CL PHY Gigabit LAN controller, this port
allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer
to the table below for the LAN port LED indications.
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel and 6-channel configuration, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink). This port connects a microphone.
Activity/Link LED Speed LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Refer to the audio configuration below for the function of the audio ports in 2, 4,
or 6-channel configuration.
4 5 3
6 8 7
2
10 9
1
11
Audio 2, 4, or 6-channel configuration
Port Headset
2-channel
4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
Chapter 1: Product introduction 1-19
