ASUS E45M1-M PRO
1-16
5.

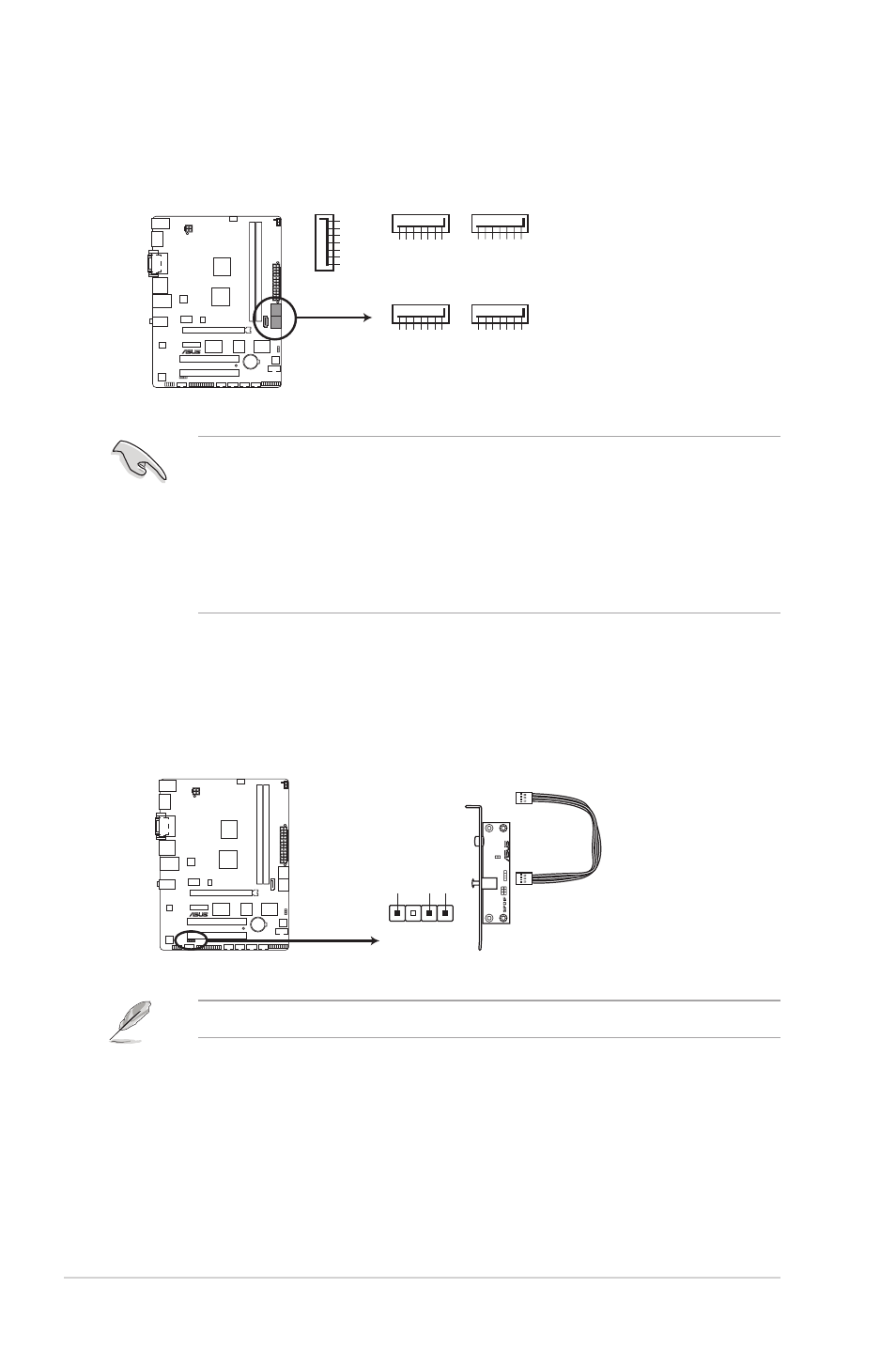

Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
SPDIF_OUT
+5
V
SPDIFOUT
GND
E45M1-M PRO
E45M1-M PRO Digital audio connector
4.
Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~5)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• These connectors are set to [IDE] by default. In IDE mode, you can connect Serial ATA
boot/data hard disk drives to these connectors. See section 2.5.2 SATA Configuration
for details.
• When using hot-plug and NCQ, set the OnChip SATA Type item in the BIOS to [AHCI].
See section 2.5.2 SATA Configuration for details.
GN
D
RSATA_TXP
1
RSATA_TXN1
GN
D
RSATA_RXP
1
RSATA_RXN1
GN
D
SATA6G_1
SATA6G_2
GN
D
RSATA_TXP
2
RSATA_TXN2
GN
D
RSATA_RXP
2
RSATA_RXN2
GN
D
GN
D
RSATA_TXP
3
RSATA_TXN3
GN
D
RSATA_RXP
3
RSATA_RXN3
GN
D
SATA6G_3
GND
RSATA_RXN5
RSATA_RXP5
GND
RSATA_TXN5
RSATA_TXP5
GND
SATA6G_5
SATA6G_4
GN
D
RSATA_TXP
4
RSATA_TXN4
GN
D
RSATA_RXP
4
RSATA_RXN4
GN
D
E45M1-M PRO
E45M1-M PRO SATA connectors
