ASUS E45M1-M PRO 1-8
E45M1-M PRO
E45M1-M PRO 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2
1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

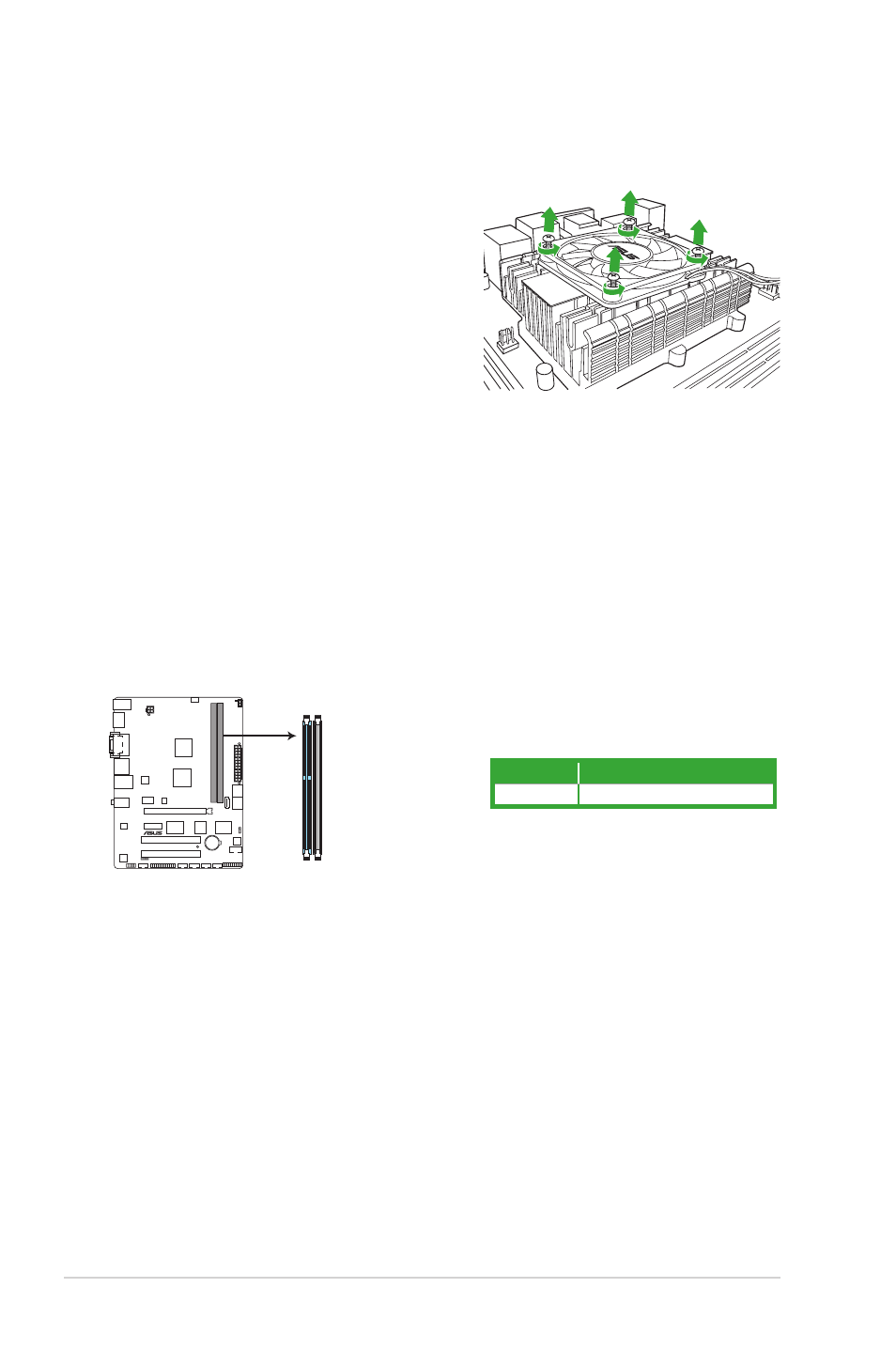

The figure illustrates the location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 DIMM_A2
1.6.2 Uninstalling the CPU fan
To uninstall the CPU fan:
1.
Disconnect the CPU fan cable from the
connector on the motherboard.
2. Remove the four screws from the CPU fan.
3. Remove the CPU fan from the CPU
heatsink.
