4 connecting to two monitors – Asus MA3850 Series User Manual
Page 16
ASUS Splendid HD1
10

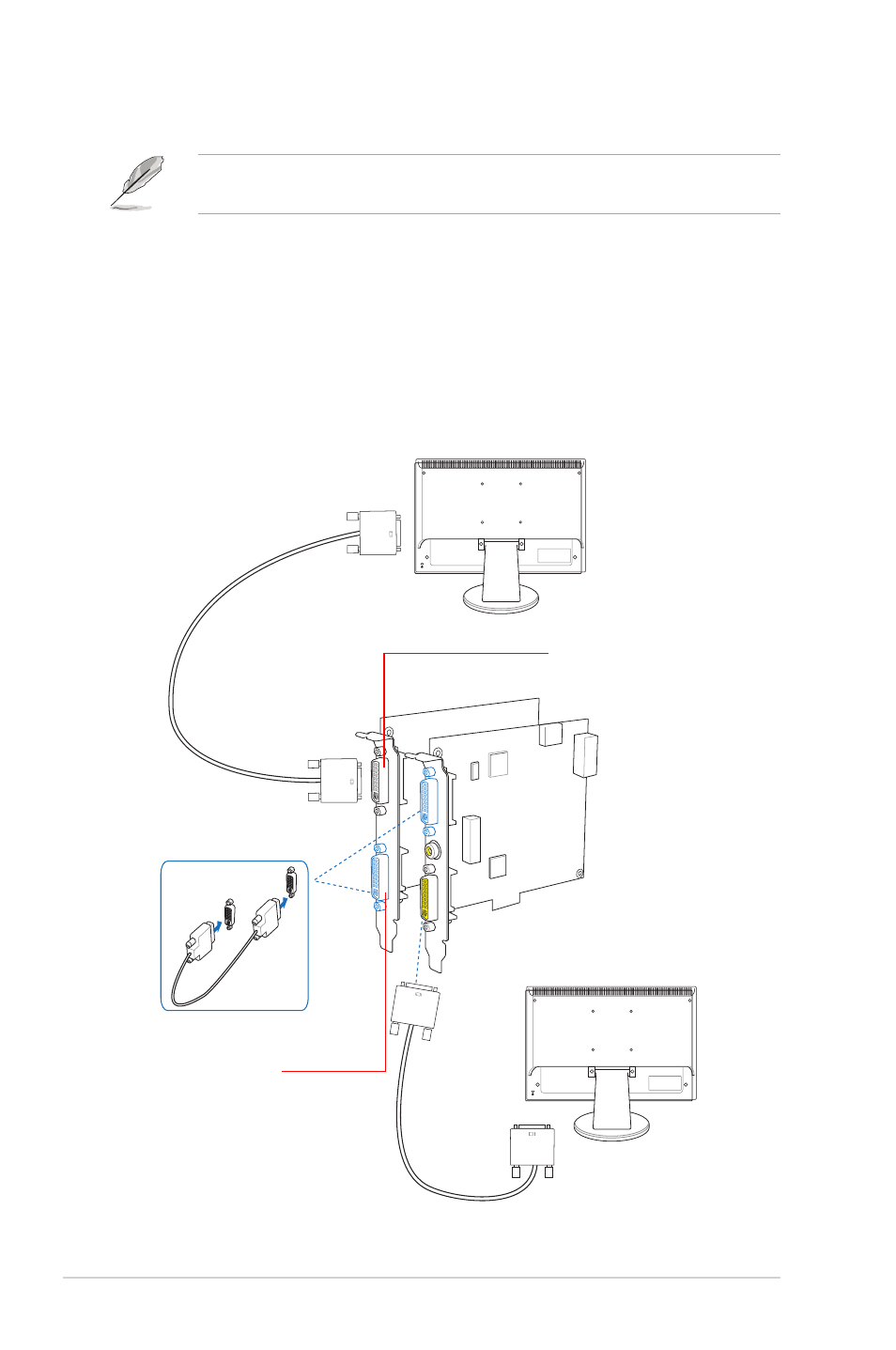

3.2.4 Connecting to two monitors
If you use two monitors, always connect the primary monitor to the Splendid
HD1 card to ensure the correct signal transmission.
1.
Using a DVI cable, connect the primary DVI-I out port of your graphics card to
the DVI in port of the Splendid HD1.
2.
Connect one end of the DVI cable to the primary monitor and connect the
other end to the yellow-colored DVI-I out port of the Splendid HD1.
3.
Using another DVI cable, connect one end of the DVI cable to the secondary
monitor, then connect the other end to the DVI-I out port of your graphics
card.
1
1
graphics card
Splendid HD1
Primary monitor
Secondary monitor
DVI cable
DVI cable
DVI cable
Primary DVI-I
Out port of the
graphics card
Slave DVI-I
Out port of the
graphics card
