ASUS Splendid HD1 5
3.2 Installing the Splendid HD1 card
Securing the Splendid HD card:
1.
Carefully insert the Splendid HD1 card into the PCI Express x1 slot. Ensure
that the card sits properly in place.
2. Secure the card with a screw or a metal bracket.

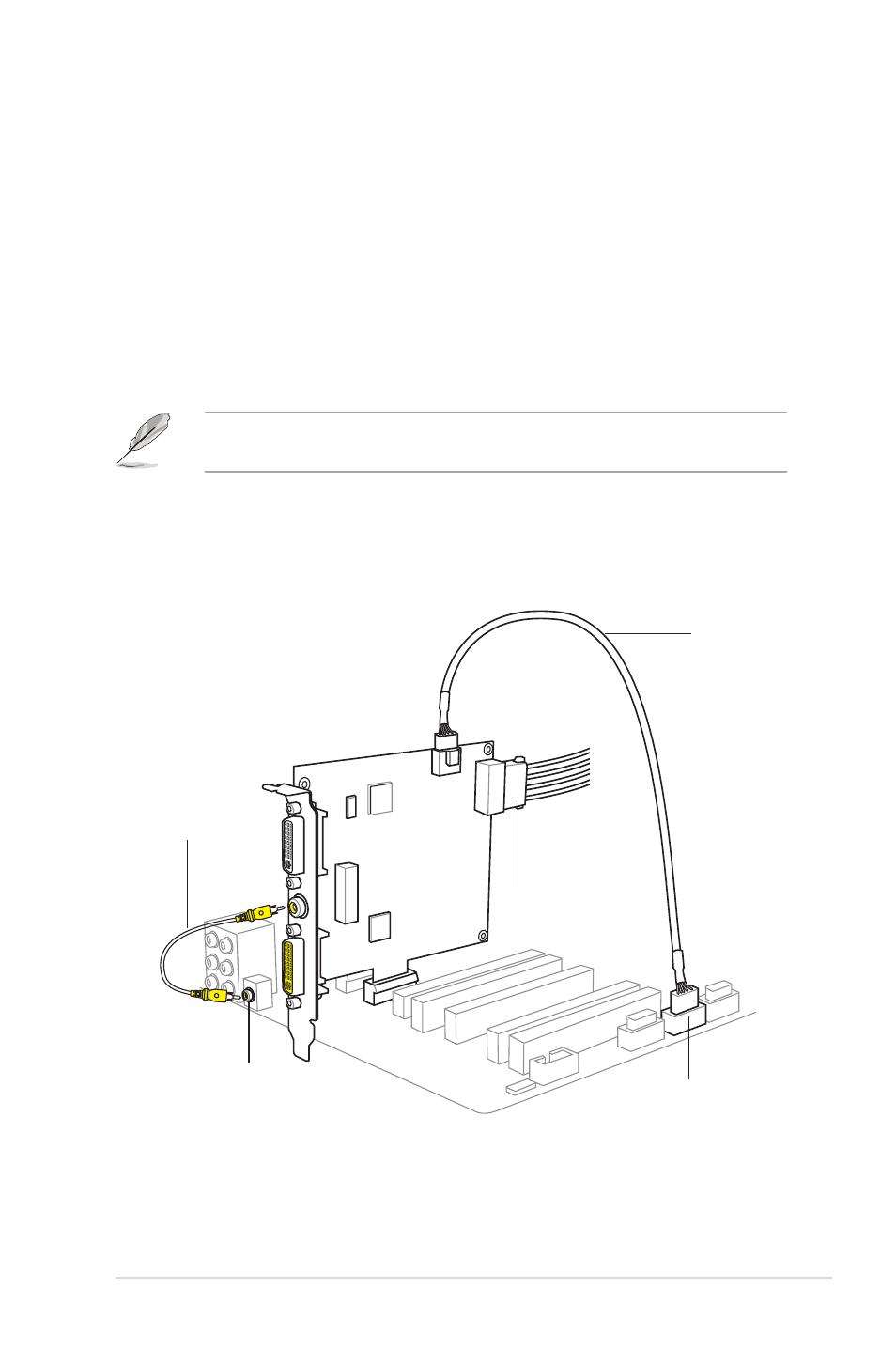

Connecting cables:
1.
Connect one end of the USB cable to the USB port of the card and connect
the other end to a USB connector on your motherboard.
2. Connect a 4-pin ATX power cable to the ATX power connector on the card.
The Splendid HD1 requires additional power to work. Ensure that you connect
the ATX power connector to the card to provide ample power.
3. Using the bundled coaxial cable, connect one end to the S/PDIF port on
Splendid HD1 and connect the other end to the S/PDIF out port of your
motherboard.
1
2
USB cable
ATX power cable
USB connector on
the motherboard
Coaxial cable
Coaxial SPDIF Out port
