ASUS Splendid HD1 7
graphics card
1
1
Splendid HD1
DVI signal
graphics card

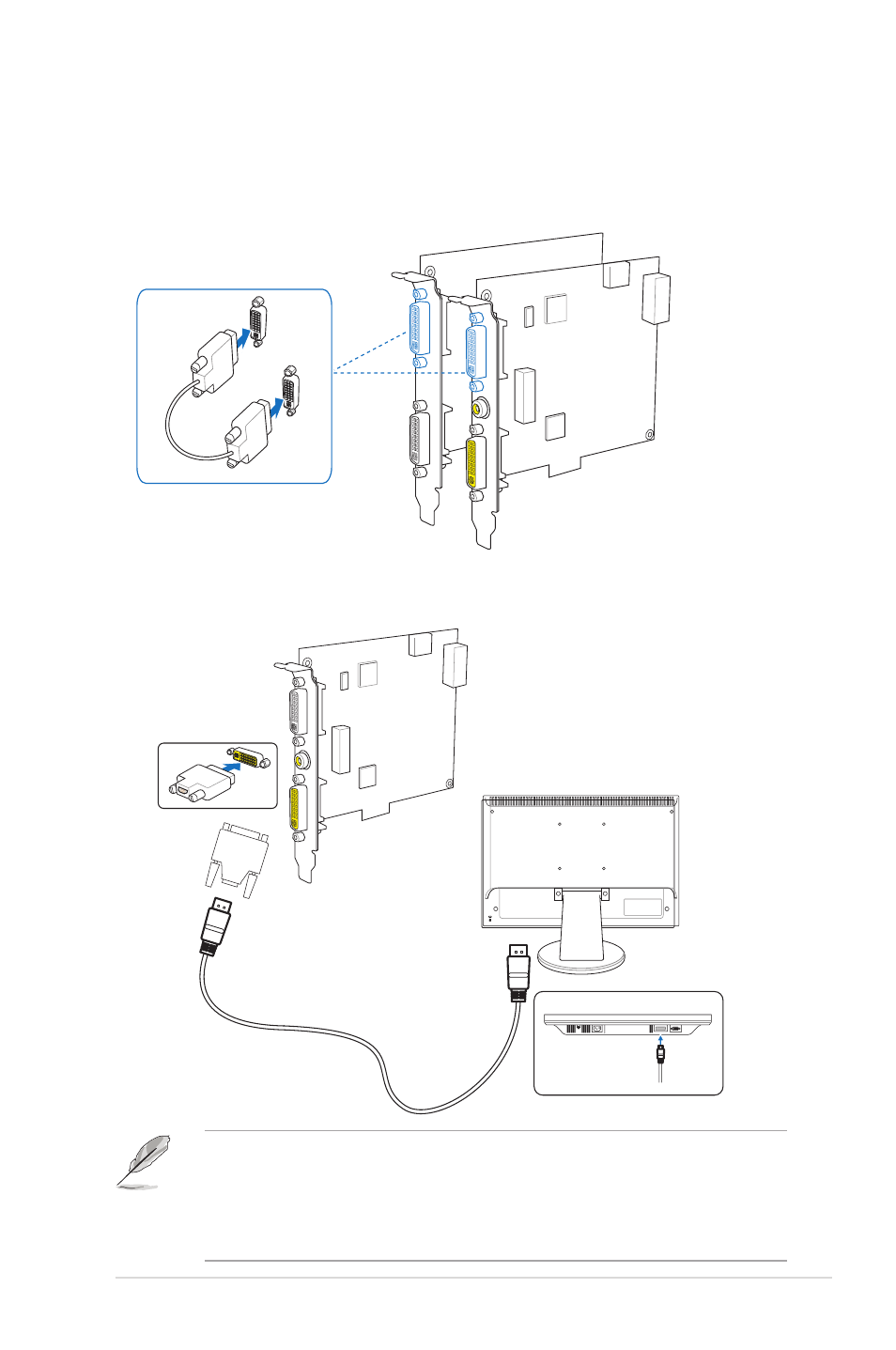

3.2.2 Connecting to graphics card with DVI support and monitor
with HDMI port
1. Using the bundled DVI cable, connect the Splendid HD1 with your graphics
card.
1
1
HDMI cable
(not bundled)
Splendid HD1
DVI-to-HDMI
adapter
(bundled)
HDMI port
HDMI
2. Plug the DVI-to-HDMI adapter into the yellow-colored DVI-I Out port, then
connect the adapter and the monitor with an HDMI cable.
• HDMI output supports the following resolutions only:
480i, 480p, 576i, 576p, 720p, 1080i, 1080p. You may lose audio output if
you use resolutions other than resolutions listed above.
• Use the DVI-to-HDMI adapter that comes with the Splendid HD1 card
package.
