ASUS P4SGL-VM motherboard user guide 2-23
8. Front panel audio connector (10-1 pin FPAUDIO1) (on audio
models only)
This is an interface for the Intel audio cable that allows convenient
audio control from the front panel.
7. Internal audio connectors (4-pin CD, AUX, MODEM) (on audio
models only)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.
P4SGL-VM
®

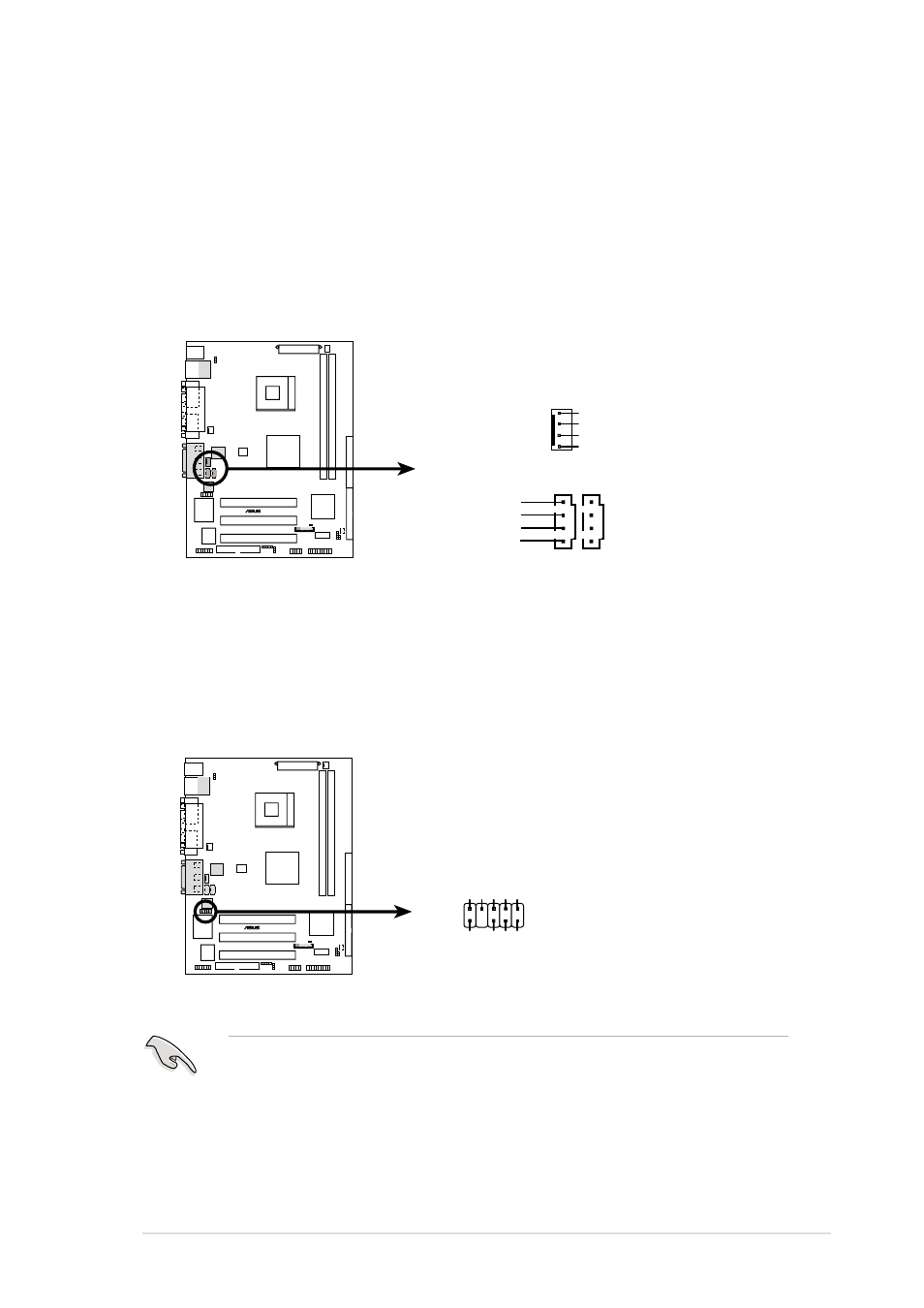

P4SGL-VM Internal Audio Connectors
CD (Black) AUX (White)
MODEM
Right Audio Channel
Left Audio Channel
Ground
Ground
Modem-Out
Ground
Modem-In
Ground
P4SGL-VM
®
BOUT_L
MIC2 LOUT_R LOUT_L NC MICPWR
+5V
A
AGND_A
1
BOUT_R
P4SGL-VM Intel Panel Connector
2
9
10
FPAUDIO1
Make sure to place jumper caps over pins 1-2 and 5-6 if you do not
connect the Intel front panel audio cable. By default, these pins are
shorted. Before using this connector, make sure that your audio cable
and the front panel audio module (if available) comply with the Intel
Front Panel I/O specification.
