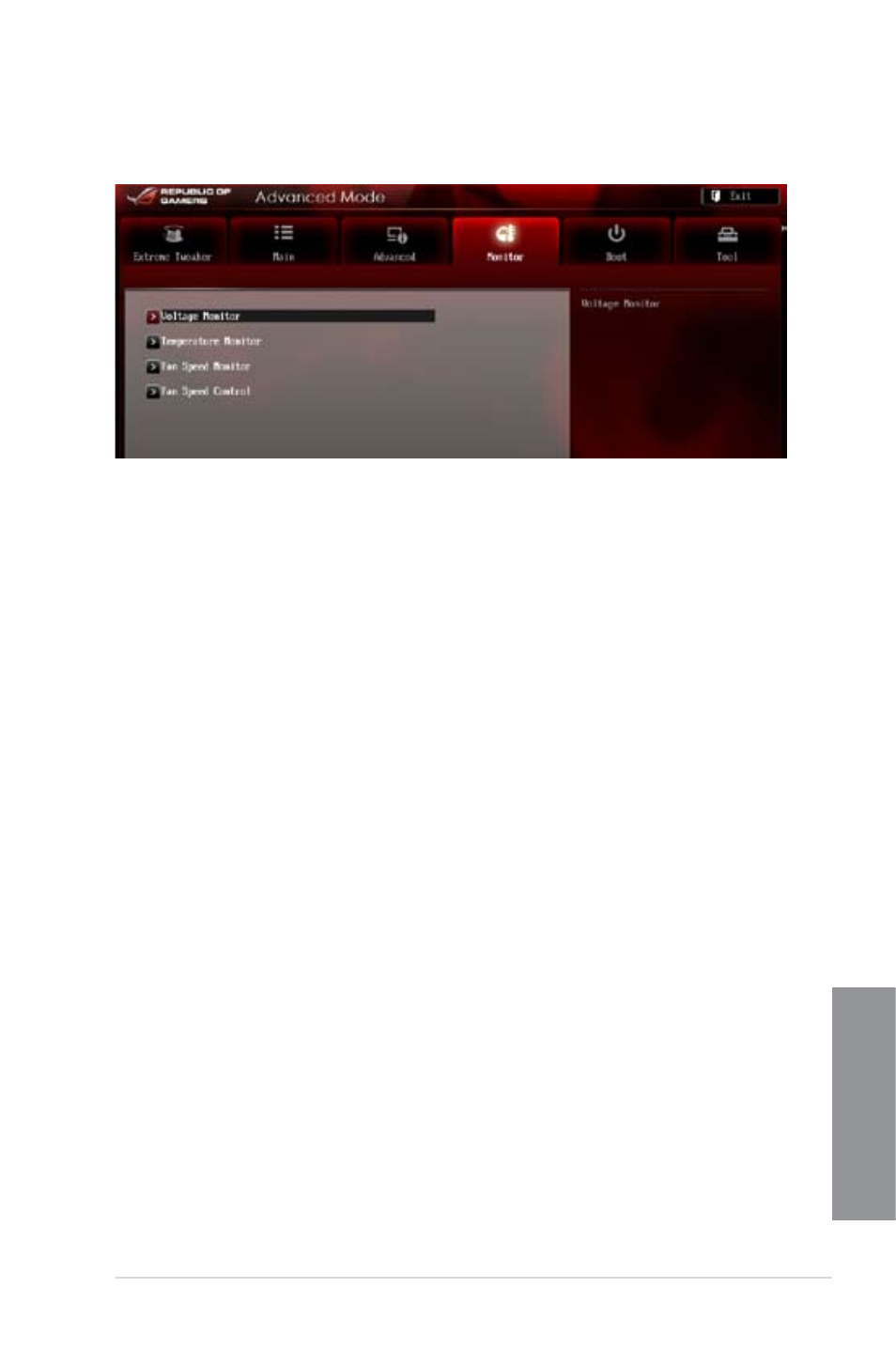

3.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Voltage Monitor
CPU Voltage; 3.3V Voltage; 5V Voltage; 12V Voltage; VDDA Voltage; CPU/NB Voltage;
DRAM Voltage; HT Voltage; NB Voltage; SB Voltage
The onboard hardware monitor automatically detects the voltage output through the
onboard voltage regulators. Press and select [Ignore] if you do not wish to
display the detected temperatures.
Temperature Monitor
CPU Temperature; MB Temperature [xxxºC/xxxºF]; OPT1-3 Temperature;
The onboard hardware monitor automatically detects and displays the CPU, and
motherboard. Press and select [Ignore] if you do not wish to display the
detected temperatures.
NB Overheat Protection [90ºC]
The system automatically shuts down when the NB is heated over the set temperature
to protect it from damage.
Configuration options: [Disabled] [70ºC] [80ºC] [90ºC] [100ºC]
SB Overheat Protection [90ºC]
The system automatically shuts down when the SB is heated over the set temperature
to protect it from damage.
Configuration options: [Disabled] [70ºC] [80ºC] [90ºC] [100ºC]
OPT TEMP1/2/3 Overheat Protection [90ºC]
Allows you to set the temperature over which the system automatically shuts down
when any of the thermal sensor cables connected to the motherboard detects device
overheat to protect the device from damage.
Configuration options: [Disabled] [70ºC] [80ºC] [90ºC] [100ºC]
