A S U S P 5 G D C P r o A S U S P 5 G D C P r o A S U S P 5 G D C P r o A S U S P 5 G D C P r o A S U S P 5 G D C P r o 2 - 3 5 2 - 3 5 2 - 3 5 2 - 3 5 2 - 3 5

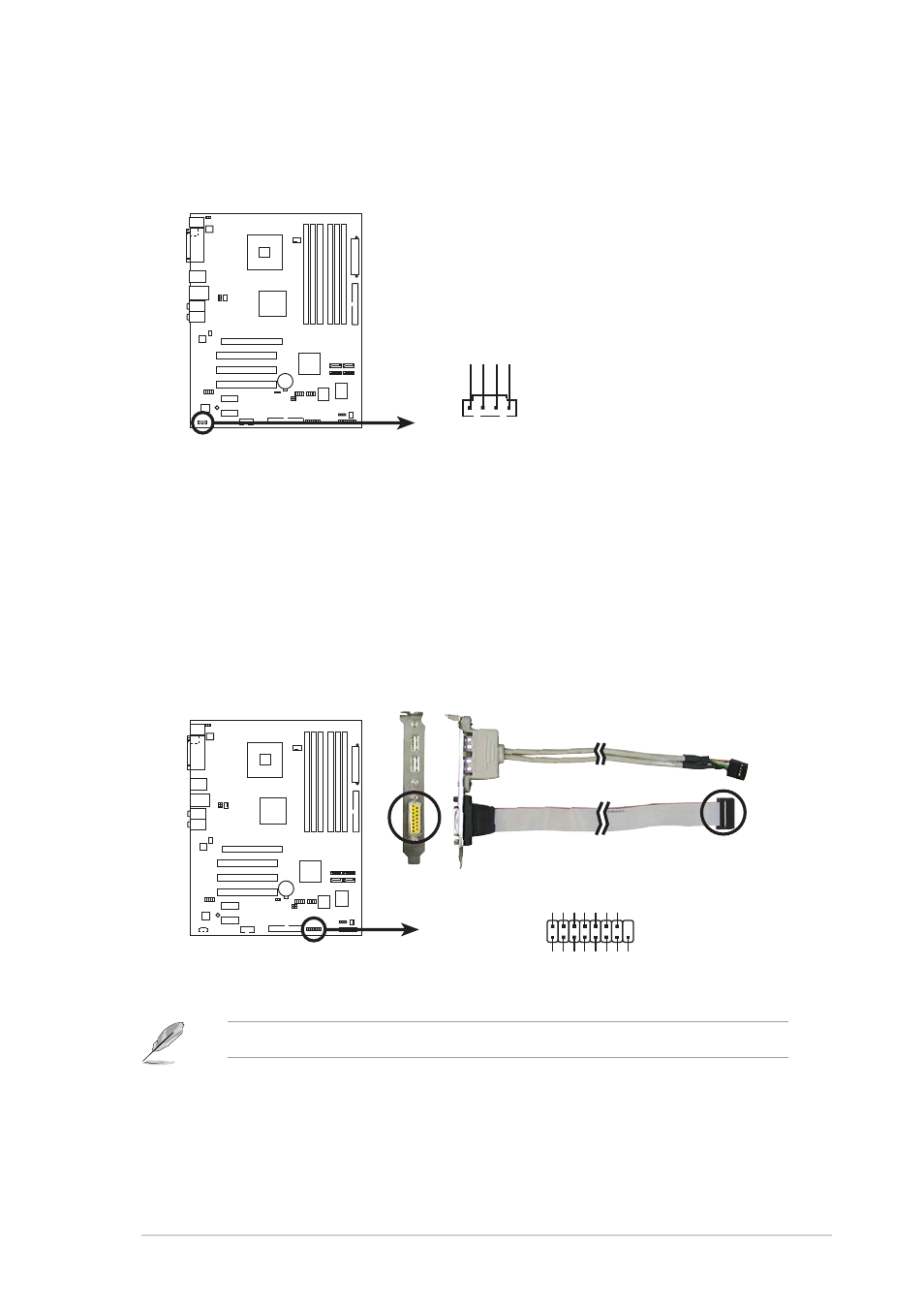

8 . 8 . 8 . 8 . 8 . O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D )
This connector is for the 4-pin audio cable that connects to the audio
connector at the back of the optical drive.
9 . 9 . 9 . 9 . 9 . G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E )
This connector is for a GAME/MIDI port. Connect the USB/GAME
module cable to this connector, then install the module to a slot
opening at the back of the system chassis. The GAME/MIDI port
connects a joystick or game pad for playing games, and MIDI devices
for playing or editing audio files.
P5GDC PRO
P5GDC PRO CD audio connector
CD
Right A
udio Channel
Left A
udio Channel
Ground Ground
P5GDC PRO
P5GDC PRO GAME connector
GAME1
+5V
+5V J2B1 J2CX MIDI_OUT J2CY J2B2 MIDI_IN
J1B1 J1CX GND GND J1CY J1B2
+5V
The GAME/MIDI module is purchased separately.
