3-3 ASUS TW100-E5
Onboard LED
The motherboard comes with a standby power LED that lights up to indicate that
the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you
should shut down the system and unplug the power cable before removing or

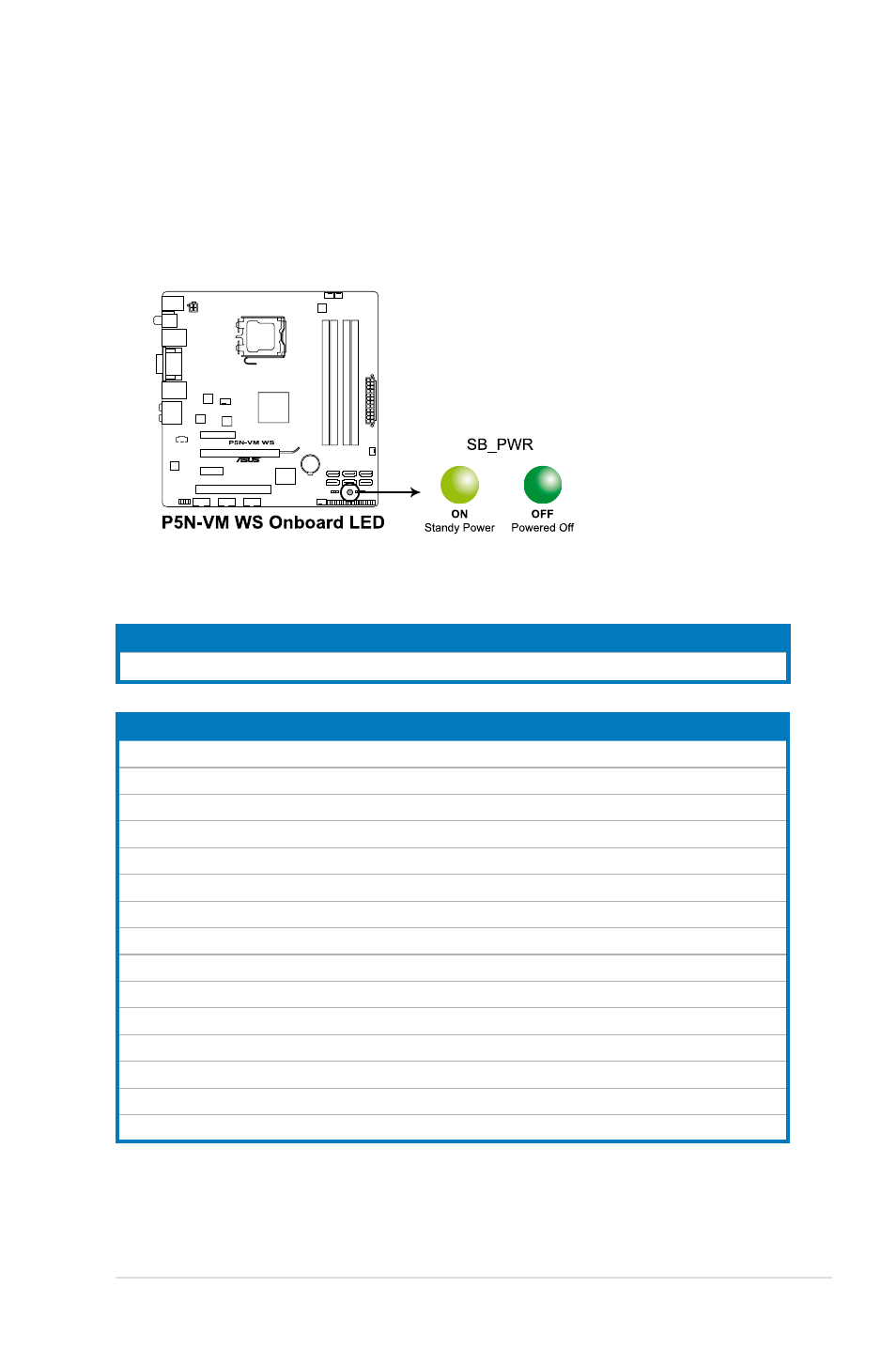

plugging in any motherboard component. The illustration below shows the location
of the onboard LED.
Layout contents
Jumper Page
Clear RTC RAM (3-pin CLRTC) 3-5
Rear panel connectors Page
1. PS/2 keyboard / mouse combo port 3-6
2. Coaxial S/PDIF Out port 3-6
3. LAN2 (RJ-45) port 3-6
4. DVI-I out ports 3-6
5. LAN1 (RJ-45) port 3-6
6. Center/Subwoofer port (orange) 3-7
7. Rear Speaker Out port (black) 3-7
8. Line In port (light blue) 3-7
9. Line Out port (lime) 3-7
10. Microphone port (pink) 3-7
11. Side Speaker Out port (gray) 3-7
12. USB 2.0 ports 1 and 2 3-7
13. USB 2.0 ports 3 and 4 3-7
14. Optical S/PDIF Out port 3-7
15. USB 2.0 ports 5 and 6 3-7
