Page 34

Chapter 2: Hardware setup

2-16

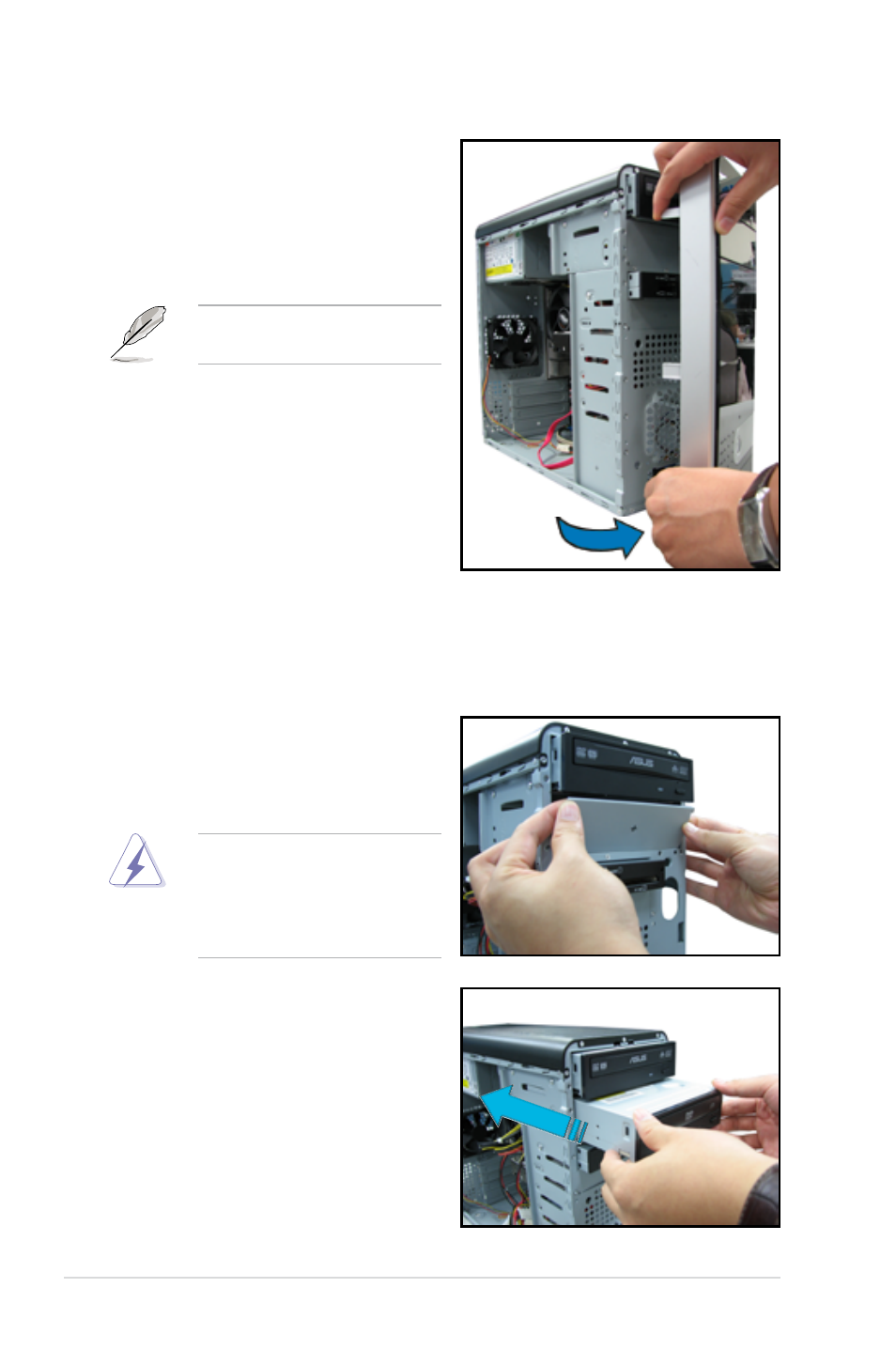

2. Insert the drive into the 5.25-inch

drive bay.

2.6.2

Installing an additional 5.25-inch drive

To install an additional 5.25-inch drive

1. Select the drive bay you intend to

use. Push the knock down metal

cover in and out of the chassis until

it is removed.

Take extra care when removing

the knock down metal cover.

Use tools such as a screw driver

to bend and remove the metal

cover to avoid physical injury.

4. Pull and swing the left edge of the

front panel cover outward.

5. Unhook the hinge-like tabs from

the holes on the right side of the

chassis to completely detach the

front panel cover from the chassis.

Do not use too much force when

removing the front panel cover.
