2-13 ASUS TW100-E5
2.5 Installing hard disk drives
The workstation system provides three (3) internal Serial ATA hard disk drive bays.
To install a Serial ATA hard disk drive
1. Follow the instruction in section 2.1.
Chassis covers to remove the two
side covers.

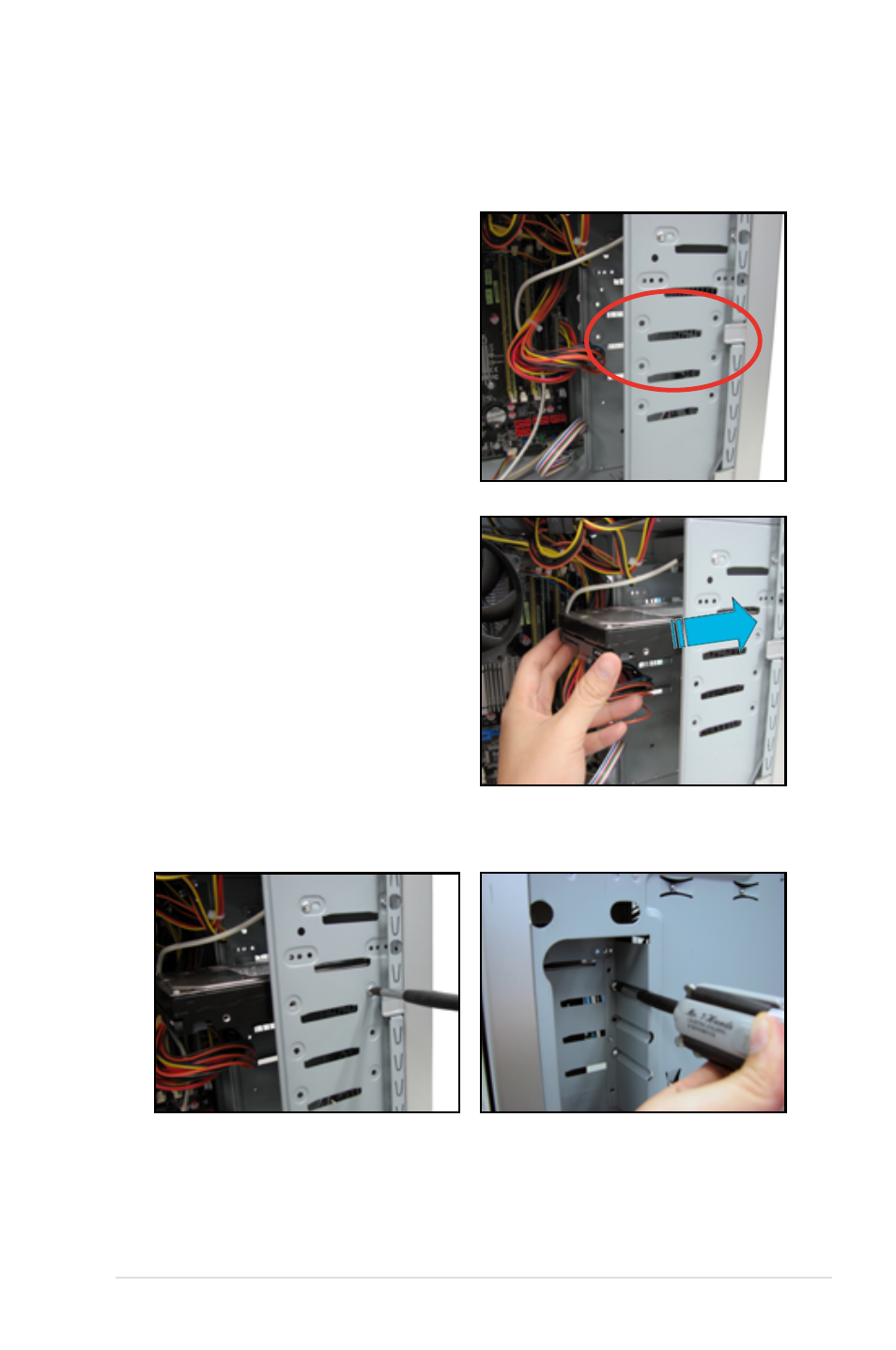

2. Locate to an empty HDD bay, as
shown in the right figure.
3. Gently insert the HDD into the HDD
bay, as shown in the right figure.
4. Secure the HDD with four screws from the two sides of the workstation
chassis, as shown in the following two figures.
Left side Right side
