2-32 Chapter 2: Hardware information
8. RJ-45 ports for LAN. These ports allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.

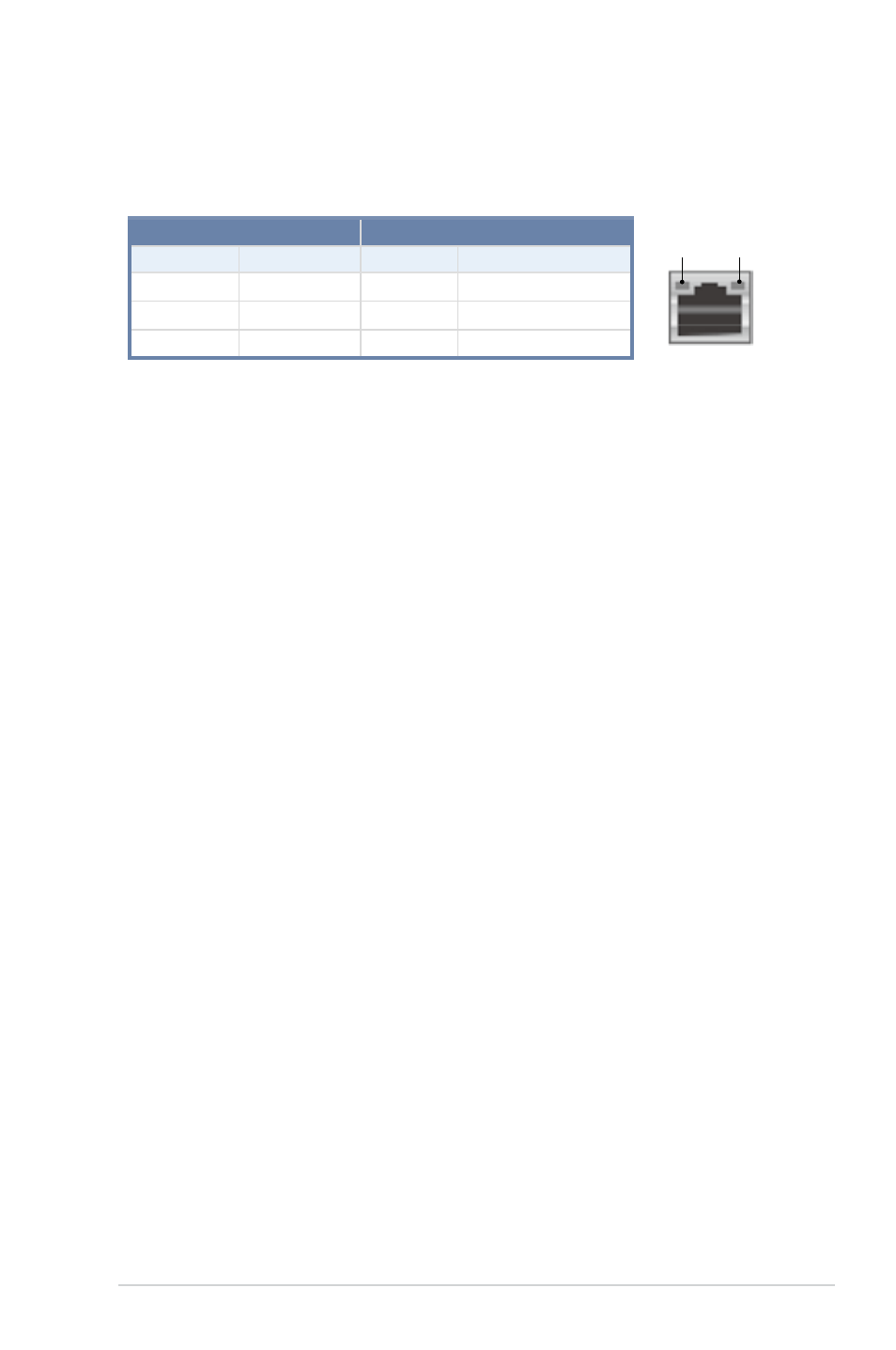

LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
9. Location LED. The Location LED is a user-activated LED on the front of the server module
that can be remotely turned on or off. It is used to find a specific server module within a
chassis.
10. Power-on Button. Press this button to turn on the system.
11. Power LED. This LED lights up when the Power-on button is pressed and the system is
on.
12. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are available
for connecting USB 2.0 devices.
13. USB 3.0 ports 1 and 2. These two 4-pin USB ports are available for connecting USB 3.0
devices.
