ASUS A7S266-VM Motherboard 1-15
8. Front panel audio connectors (5-1 pin FP_AUDIO1)
This is an interface for the Intel front panel audio cable that allow
convenient connection and control of audio devices.
9. Hard disk connector (2-pin IDE_LED1)
This 2-pin connector connects to the front panel HD LED and lights
up on every read/write activity of any of the disc drives connected to
the primary or secondary IDE slots.

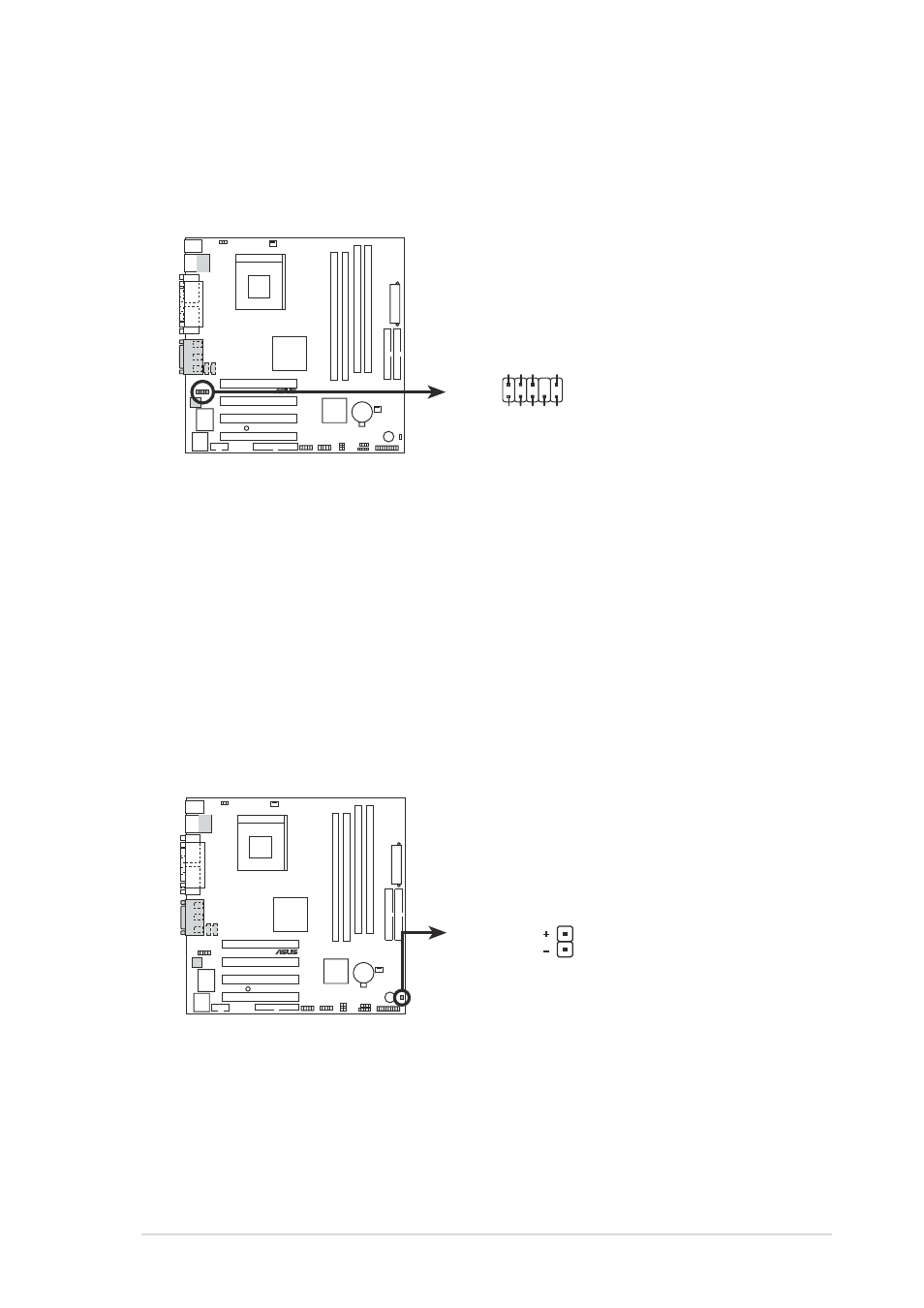

A7S266-VM
®
A7S266-VM Audio Panel Connector
FP_AUDIO1
LineOut_RL
MIC
LineOut_FR LineOut_FL
NC
MICPWR
+5V
A
AGND LineOut_RR
A7S266-VM
®
A7S266-VM IDE Activity LED
TIP: If the case-mounted LED does not
light, try reversing the 2-pin plug.
IDE_LED1
