1-14 Chapter 1: Motherboard Information
Do not forget to connect the fan cables to the fan connectors. Lack of
sufficient air flow within the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
7. Internal audio connectors (4-pin AUX1, CD1)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.

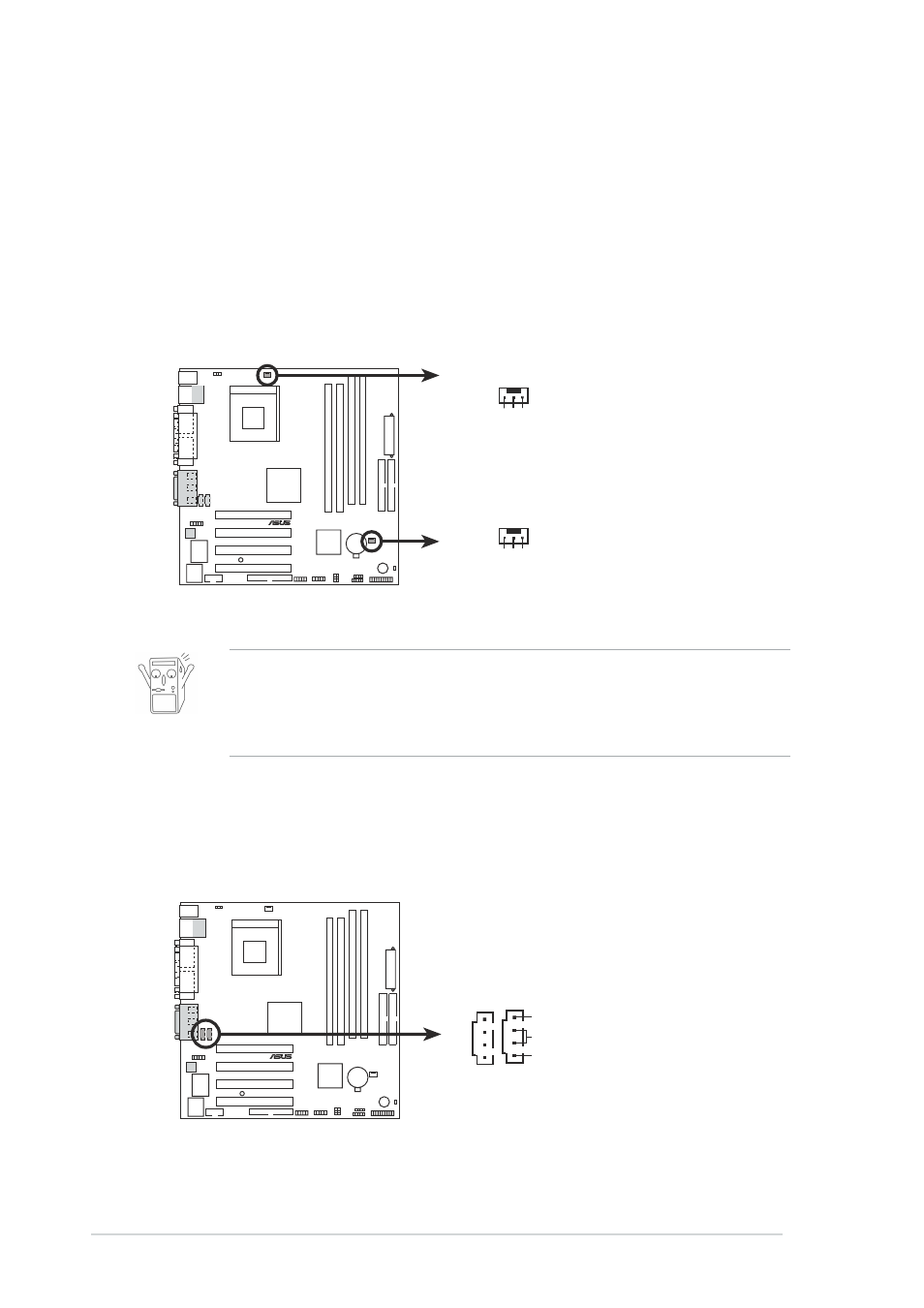

A7S266-VM
®
A7S266-VM Internal Audio Connectors
AUX1
(White)
CD1
(Black)
Right Audio Channel
Left Audio Channel
Ground
6. CPU and Chassis Fan Connectors
(3-pin CPU_FAN1, CHA_FAN1)
The two fan connectors support cooling fans of 350mA (4.2 Watts) or
a total of 1A (12W) at +12V. Orient the fans so that the heat sink fins
allow air flow to go across the onboard heat sinks instead of the
expansion slots. The fan wiring and plug may vary depending on the
fan manufacturer. Connect the fan cable to the connector matching
the black wire to the ground pin.
A7S266-VM
®
A7S266-VM 12-Volt Cooling Fan Power
CPU_FAN1
GND
Rotation
+12V
CHA_FAN1
GND
Rotation
+12V
