4-2 Chapter 4: Motherboard info
4.1 Introduction
The Vintage V4-Series P5P43 barebone system comes with an ASUS
motherboard. This chapter provides technical information about the motherboard
for future upgrades or system reconfiguration.

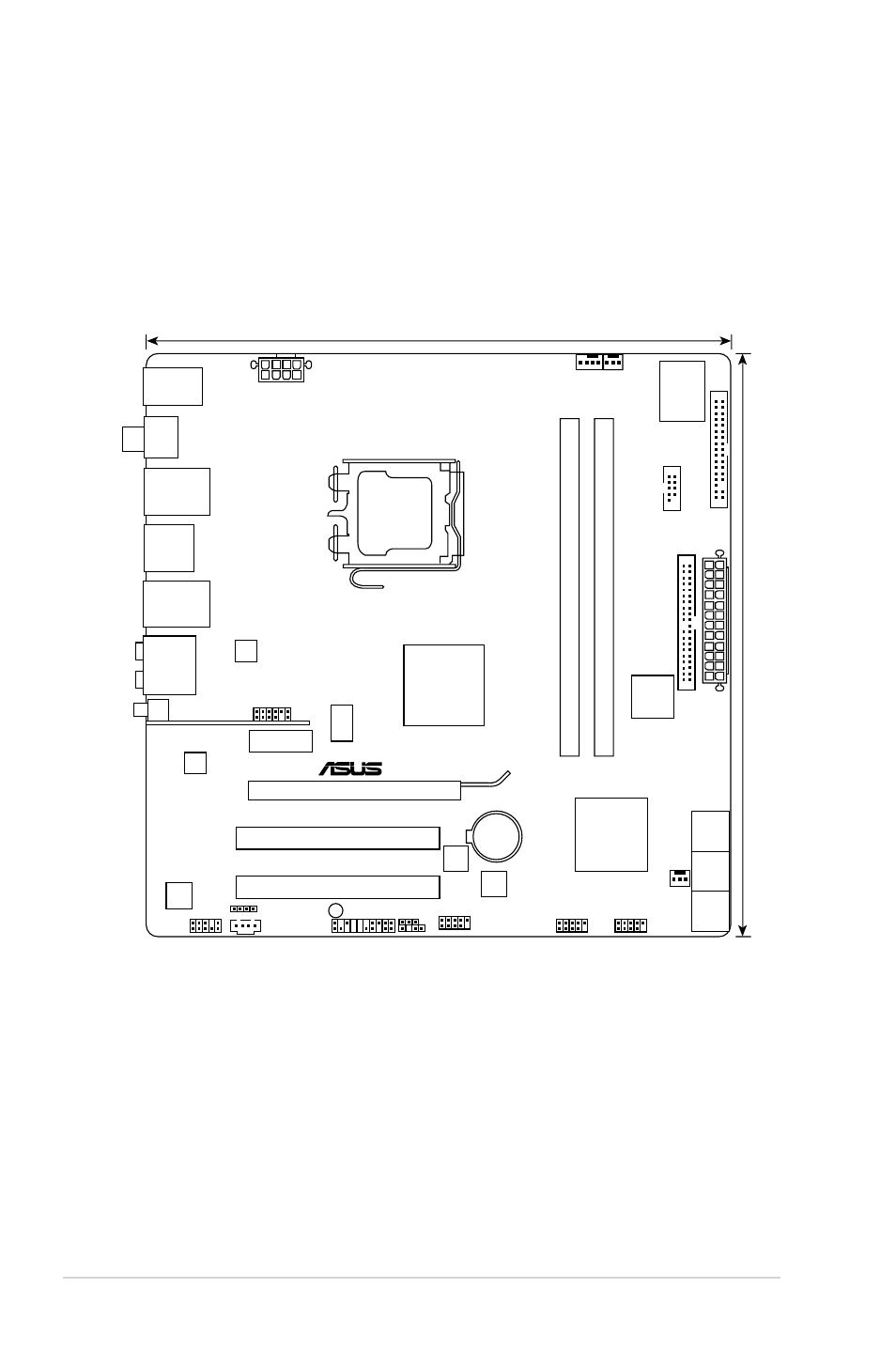

4.2 Motherboard layout
P5QL-M DELUXE/WIFI-AP
PCIEX16
PCIEX1_1
PCI2
PCI1
PRI_IDE
FLOPPY
USB910 USB78 IE1394_2
PANEL
AAFP
CD
ATX12V
EATXPW
R
CPU_FAN
COM1
PWR_FAN
CHA_FAN
Intel ®
P43
Super
I/O
AUDIO
VIA
VT1708S
RTL
8111C
RTL
8111C
RTM870T-95
4
KB_USB56
SB_PWR CLRTC
CHASSIS
24.4cm(9.6in)
24.4cm(9.6in)
LGA775
Intel ®
ICH10R
DDR2 DIMM_A1 (64bit, 240-pin module) DDR2 DIMM_B1 (64bit, 240-pin module)
LAN1_USB12
LAN2_USB34
F_ESATA12
8Mb
BIOS
JMB381
JMB363
Lithium Cell
CMOS Power
SPDIF_OUT
SPDIF_O12
SATA2 SATA1
SATA4 SATA3
SATA6 SATA5
