2-9 ASUS V4-Series P5P43
Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
A
A
B
B
A
A B
B
4. Remove the heatsink and fan assembly from the motherboard.

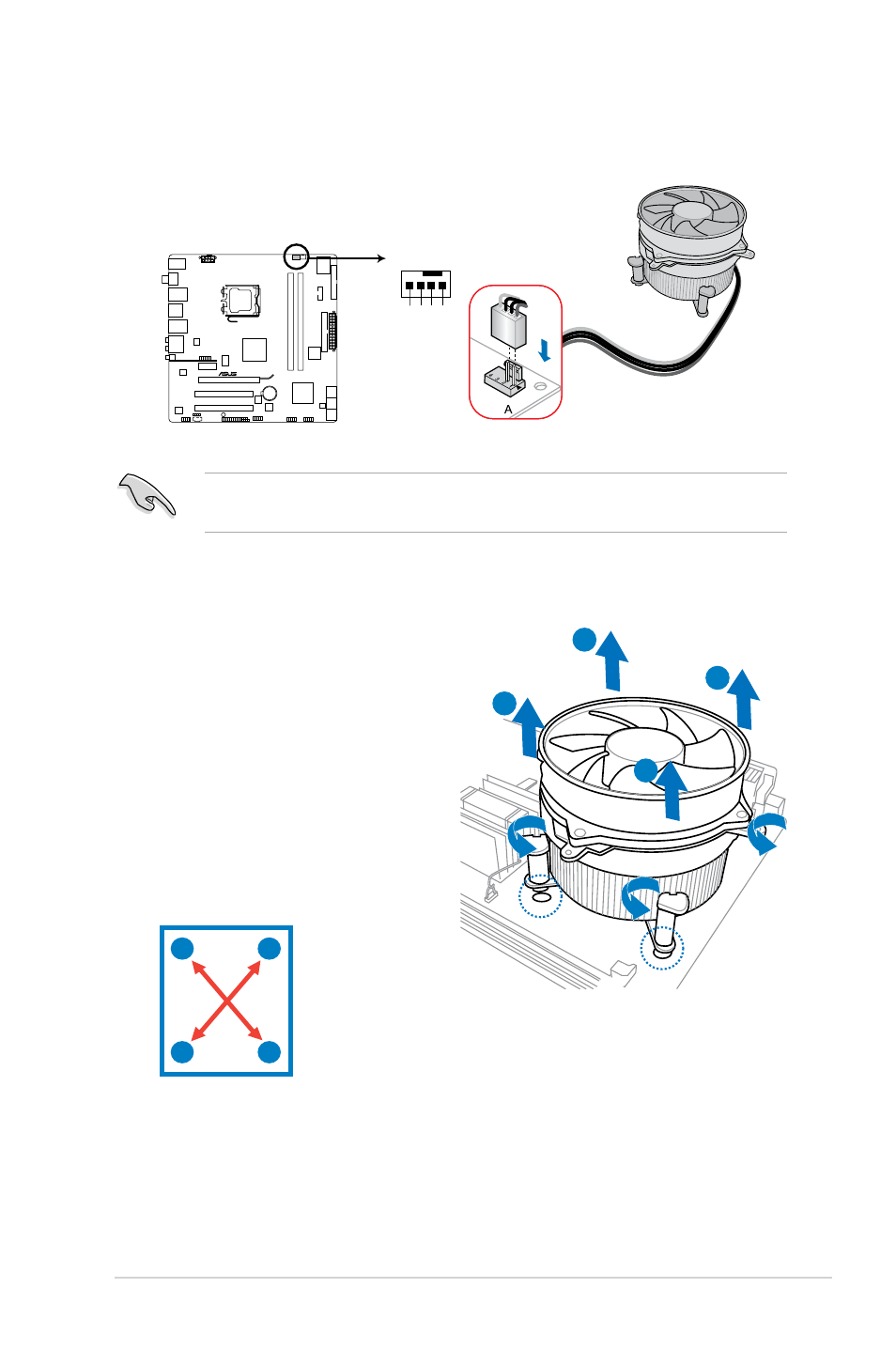

2.4.4 Uninstalling the CPU heatsink and fan assembly
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable
from the CPU_FAN connector on
the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time
in a diagonal sequence to
disengage the heatsink and fan
assembly from the motherboard.
3. When the fan and heatsink assembly is in place, connect the CPU fan cable
to the connector on the motherboard.
CPU_FAN
CPU
FA
N PWM
CPU
FA
N IN
CPU F
AN PWR
GND
P5QL-M DELUXE/WIFI-AP
P5QL-M DELUXE/WIFI-AP CPU fan connector
