2-6
Chapter 2: Basic installation
To prevent damage to the
socket pins, do not remove
the PnP cap unless you are
installing a CPU.

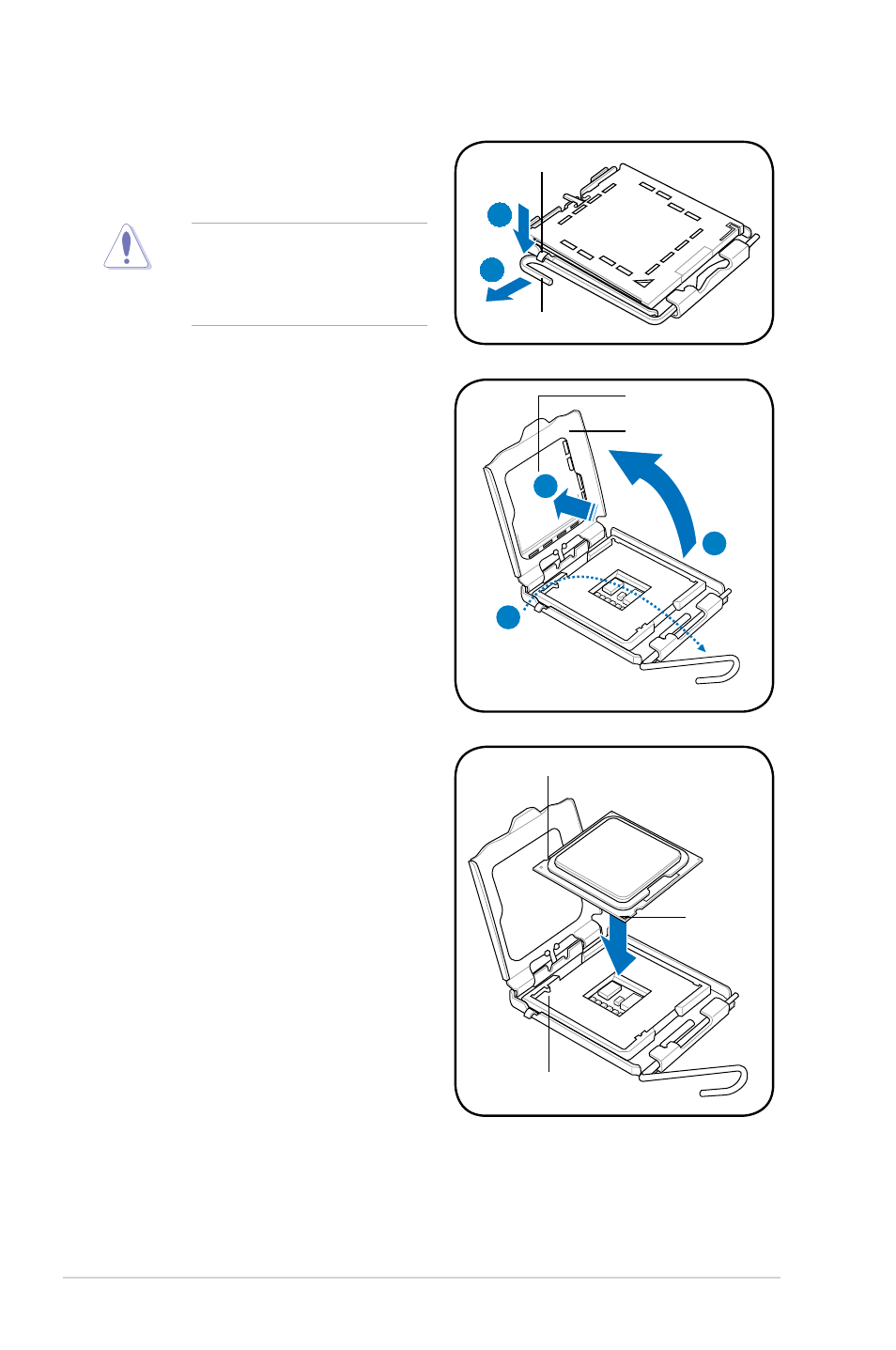

2. Press the load lever with your thumb
(A), then move it to the left (B) until it
is released from the retention tab.
A
B
Load lever
Retention tab
4. Lift the load plate with your thumb
and forefinger to a 100º angle (4A),
then push the PnP cap from the
load plate window to remove (4B).
3. Lift the load lever in the direction of
the arrow to a 135º angle.
Load plate
PnP cap
4A
4B
3
5. Position the CPU over the socket,
ensuring that the gold triangle is on
the bottom-left corner of the socket
then fit the socket alignment key
into the CPU notch.
Gold
triangle
mark
Alignment key
CPU notch
