2 . 2 . 2 . 2 . 2 . I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E 1 ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E 1 ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E 1 ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E 1 ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E 1 )
This connector is for an Ultra DMA 100/66 signal cable. The Ultra
DMA 100/66 signal cable has three connectors: a blue connector for
the primary IDE connector on the motherboard, a black connector for
an Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive),
and a gray connector for an Ultra DMA 100/66 IDE master device (hard
disk drive). If you install two hard disk drives, you must configure the
second drive as a slave device by setting its jumper accordingly. Refer
to the hard disk documentation for the jumper settings.
• Pin 20 on the IDE connector is removed to match the covered hole
on the Ultra DMA cable connector. This prevents incorrect insertion
when you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.
P5CR-VM

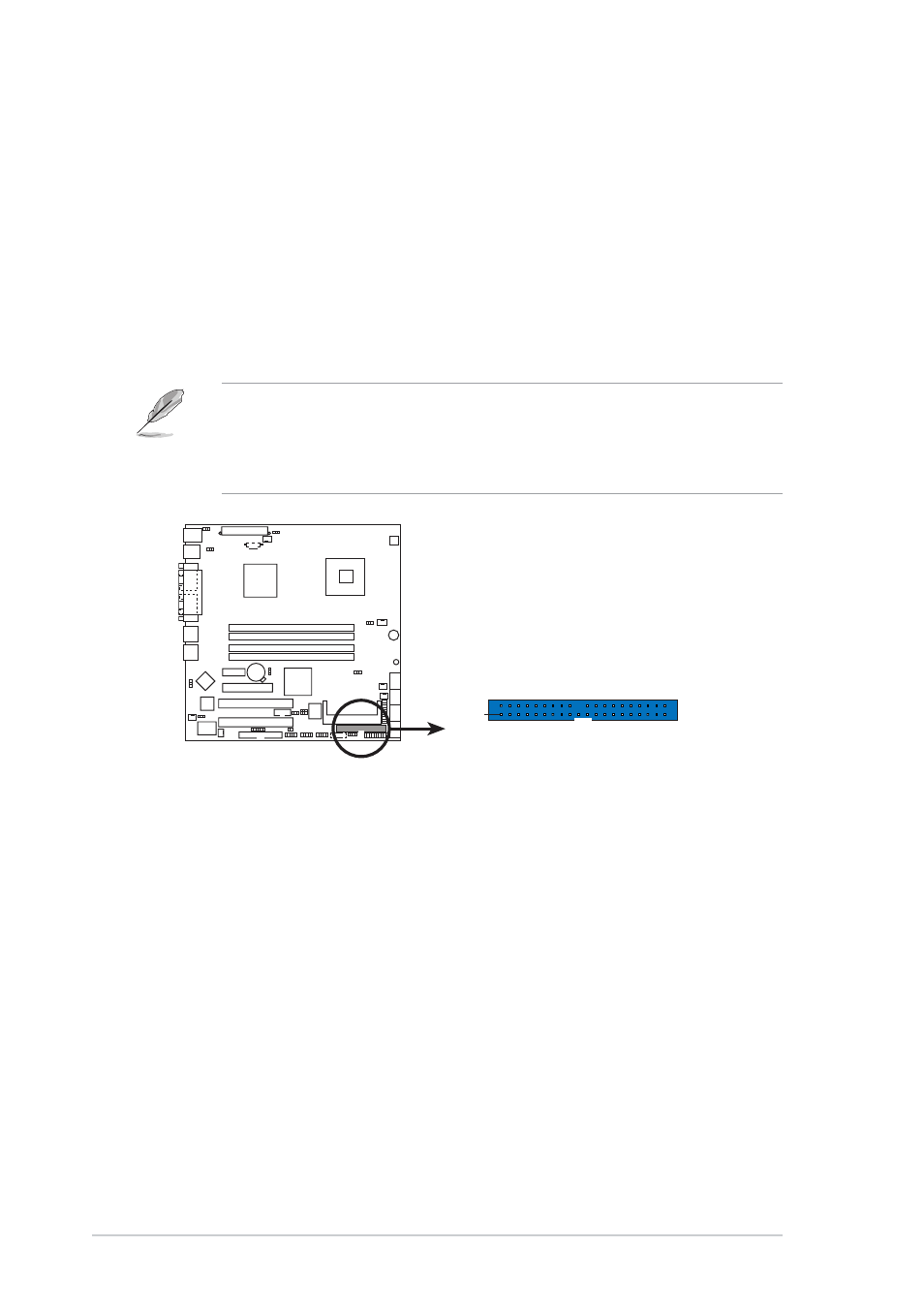

P5CR-VM IDE connector
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
PRI_IDE1
PIN 1
