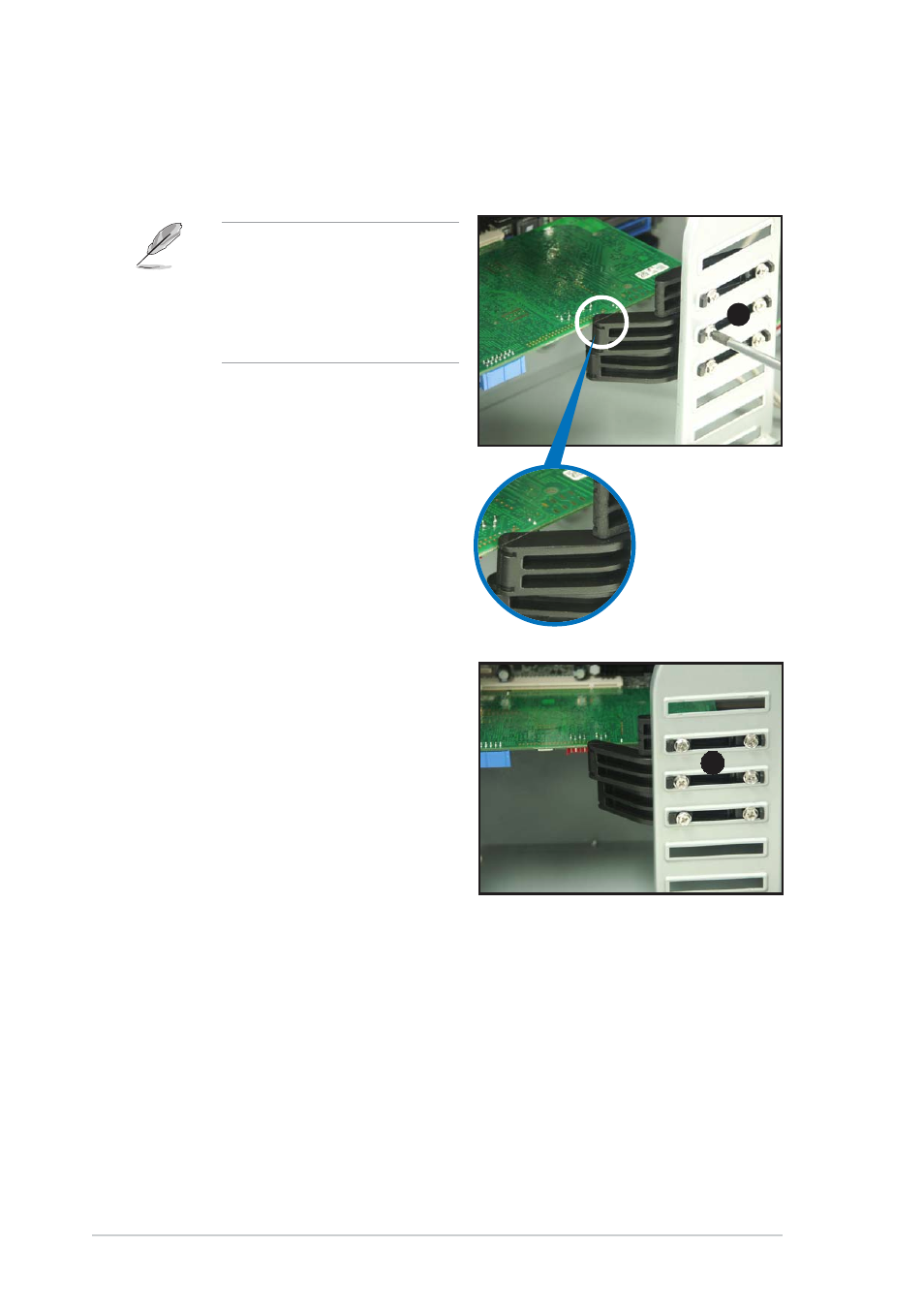

To hold long expansion cards:
1. Place the card holder at level with the expansion card.
Do not use the smaller card
holder, which is for long AGP
cards. The P5CR-VM
motherboard does not have
an AGP slot. The other card
holders are for long PCI cards.
2. Loosen the screw(s) to adjust
the card holder forward or
sideward until its groove fits the
edge of the expansion card.
3. Fasten the card holder screw(s).
4. Follow the same steps in holding
other long expansion cards.
