C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p 2 - 1 4 2 - 1 4 2 - 1 4 2 - 1 4 2 - 1 4

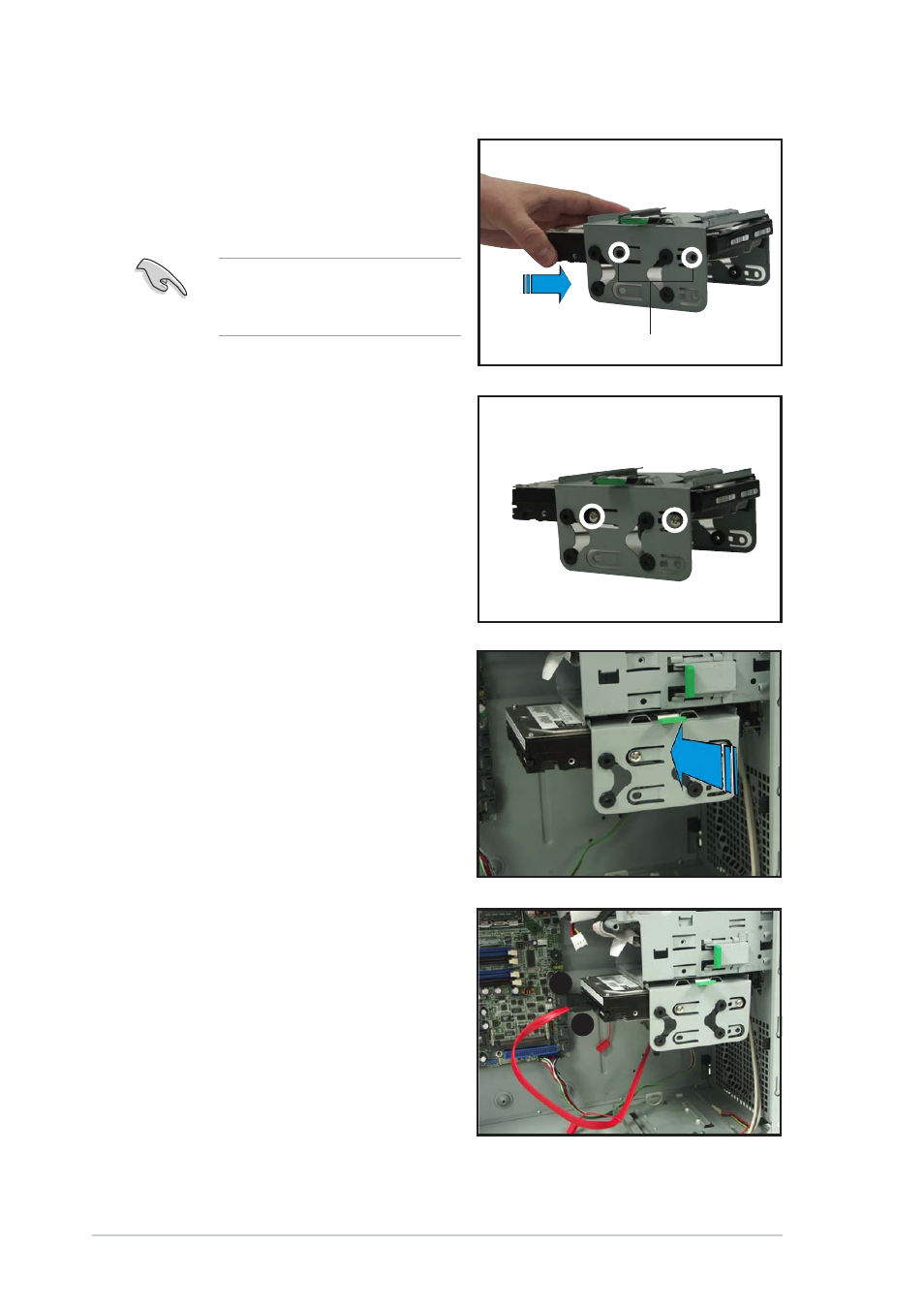

2. Insert an HDD to the upper bay
of the cage. Make sure that the
HDD screw holes are aligned with
the HDD cage screw holes.
3. Secure the HDD to the cage with
two screws on both sides of the
cage.
S c r e w h o l e s S c r e w h o l e s S c r e w h o l e s S c r e w h o l e s S c r e w h o l e s
4. Reinstall the HDD cage to the
chassis. Align the HDD cage and
bay assembly rails, then carefully
push the HDD cage until it is
flushed to the chassis.
D O N O T D O N O T D O N O T D O N O T D O N O T install a hard disk
drive to the lower bay of the
cage.
5. Connect one end of the supplied
7-pin SATA cable to the SATA
connector at the back of the
drive.
6. Connect the other end to a
SATA connector on the
motherboard. See page 3-6 for
the location of the SATA
connectors.
5 5 5 5 5
6 6 6 6 6
