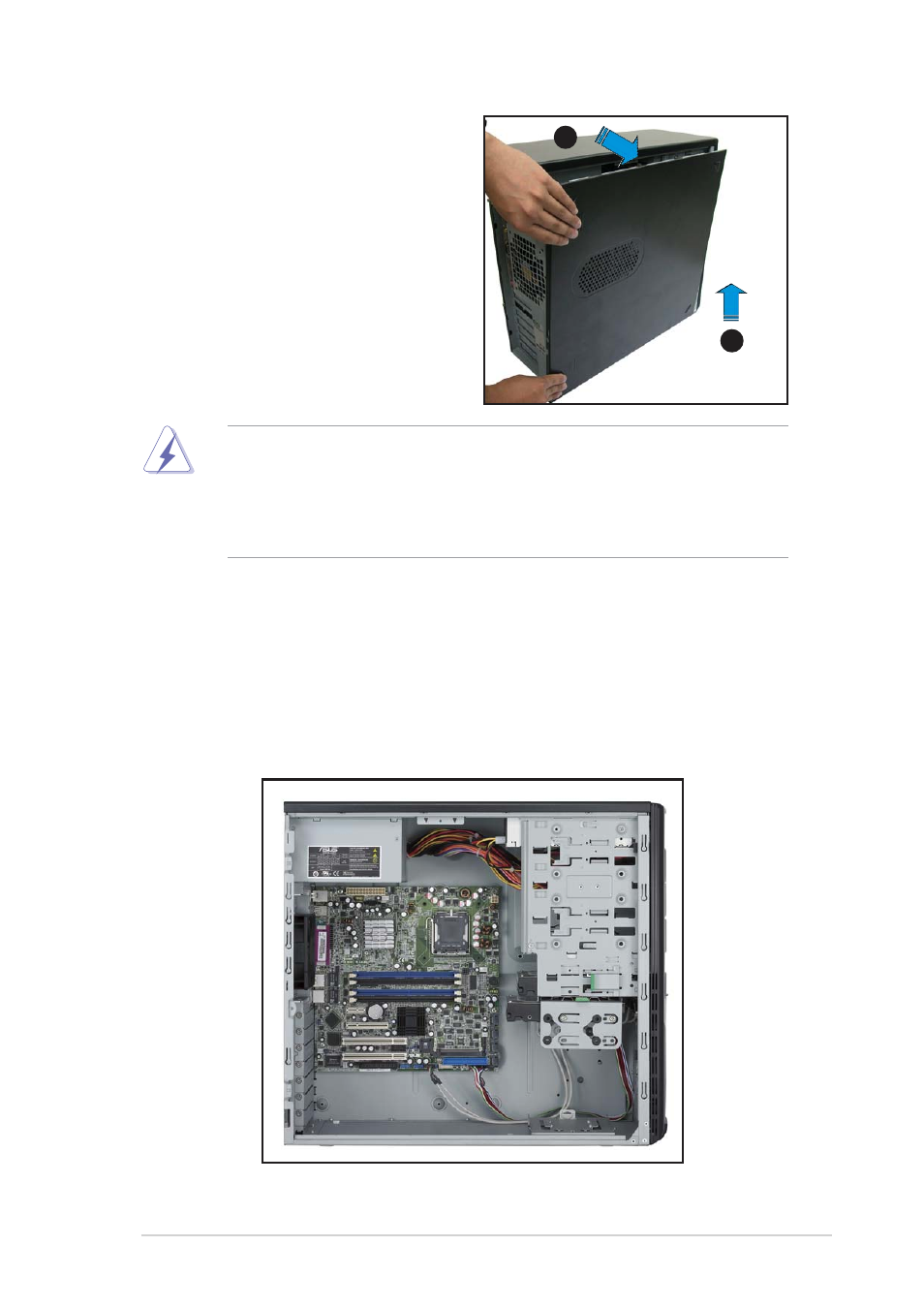

3. Move the side cover to the
direction of the arrow.
4. Lift the side cover, then set
aside.
Viewing the internal structure Viewing the internal structure Viewing the internal structure Viewing the internal structure Viewing the internal structure
Without the side cover, the internal structure and installed components of
the barebone server appear as shown in the following picture.
Perform the procedures in the succeeding sections to install the CPU,
system memory, disk drives, and expansion cards.
4 4 4 4 4
3 3 3 3 3
• Make sure that you unplug the power cord before removing the side
cover.
• Take extra care when removing the side cover. Keep your fingers
from components inside the chassis that can cause injury, such as
the CPU fan, rear fan, and other sharp-edged parts.
