ASUS P4S533 motherboard user guide

P4S533

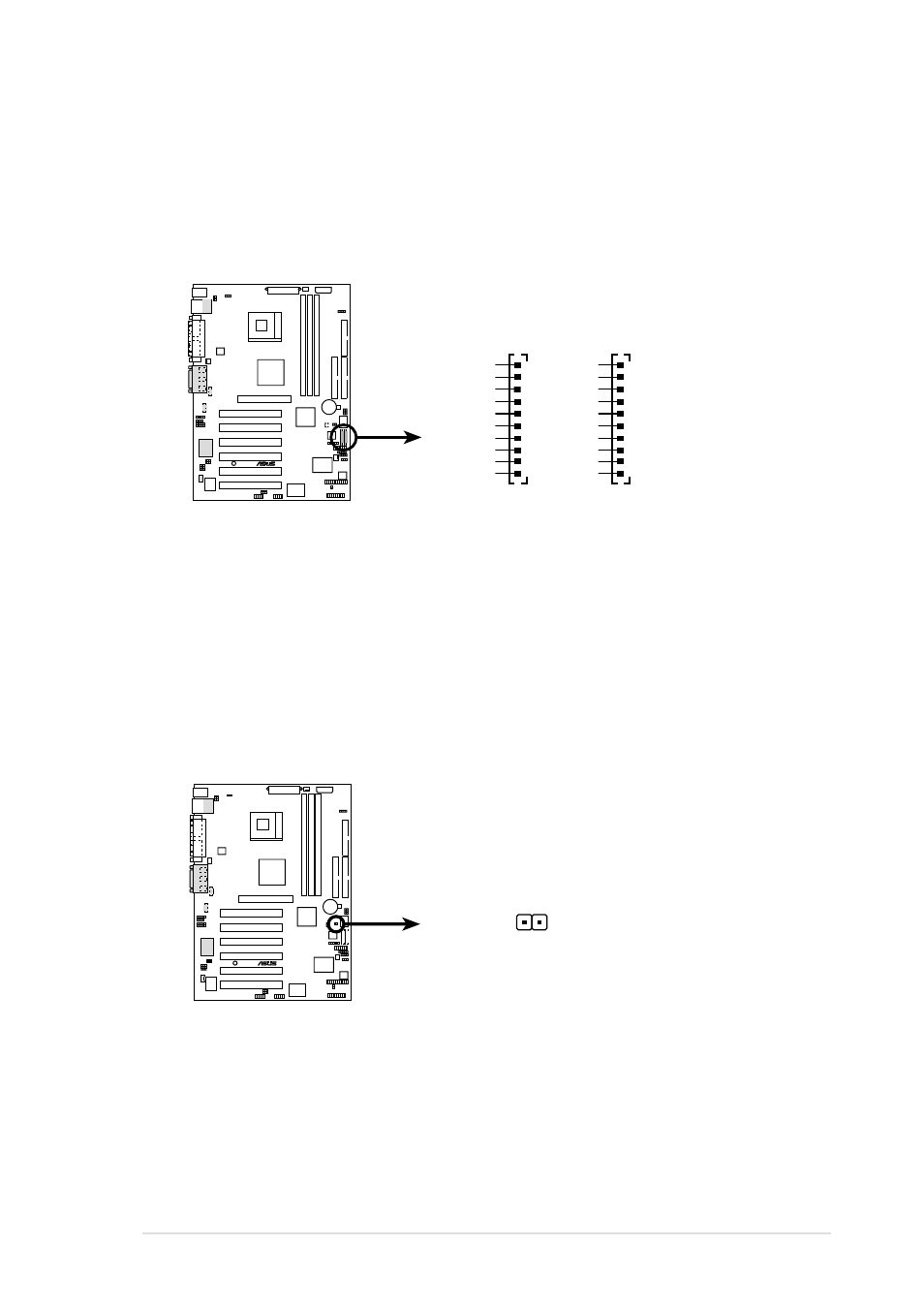

P4S533 SD MS Connectors

MS1

SD1

SDALED

SDAPWCTL#

SDACLK

SDA5

SDA3

SDA4

MSDA2

+3V

MSDA1

GND

SDBLED

SDBPWCTL#

SDBCLK

SDB5

SDB3

SDB4

SDB2

+3V

SDB1

GND

P4S533

P4S533 Thermal Sensor Connector

PWRTMP1

Power Supply Thermal Sensor

23. SD and MS Connector (10-1 pin SD, MS)

These connectors support sophisticated memory devices: Secure Digital (SD)
memory card and Memory Sticks (MS). They facilitate fast and secure
downloading of all types of digital files. The SD and MS media may also be
used to record photos, music and movies.

24. Power Supply Thermal Sensor Connector (2 pin JTPWR)

If you have a power supply with thermal monitoring, connect its thermal sensor
cable to this connector.
