ASUS P4S533 motherboard user guide 41
P4S533
®

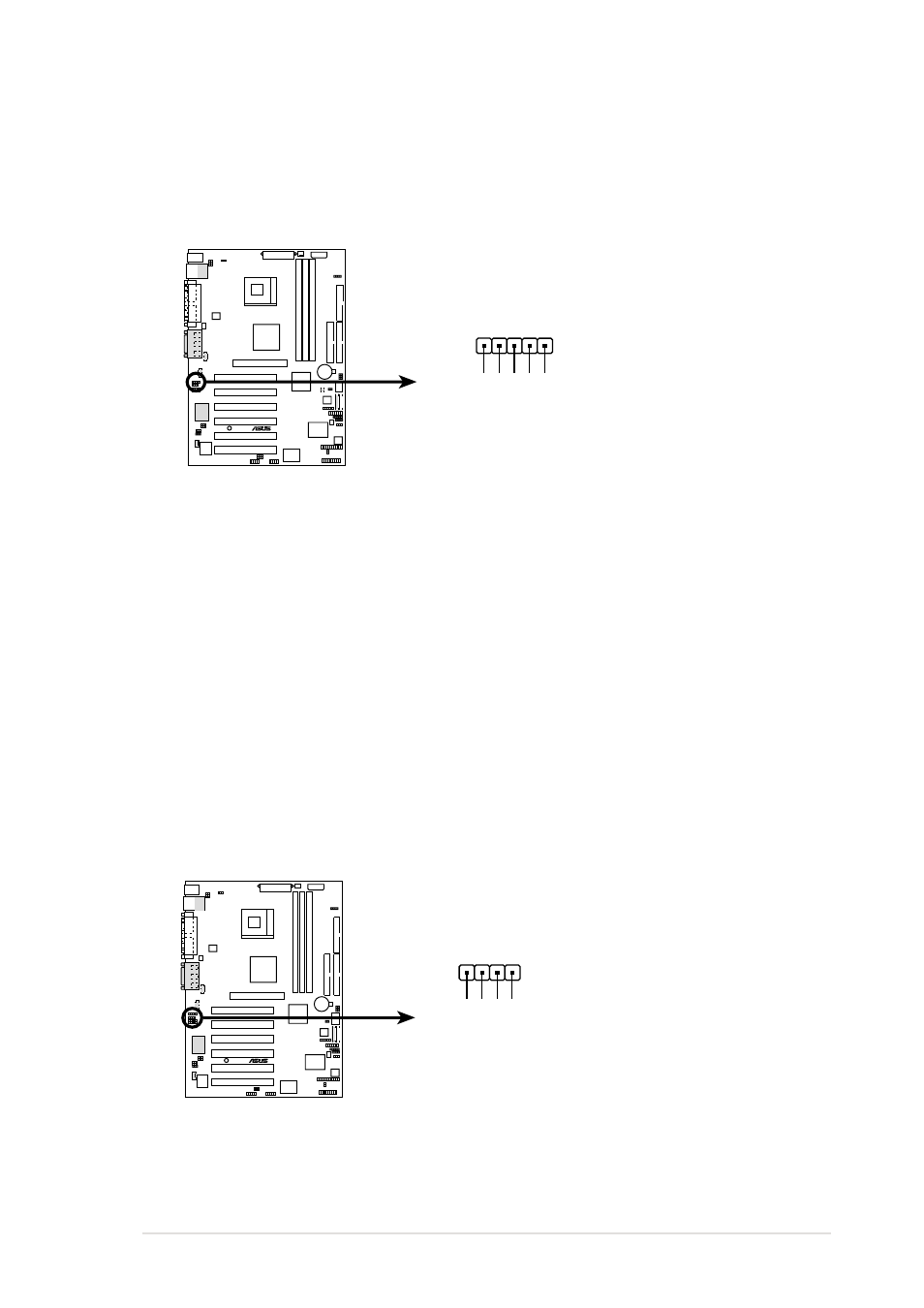

P4S533 LINE_IN Connector
ALIN1
GND
ALIN1_LINR2 ALIN1_LINR1 ALIN1_LINL1 ALIN1_LINL2
1
P4S533
®
P4S533 ALOUT Connector
ALOUT1
1
ALOUT1_LOUTL1 BLOUT1_LOUTR2 ALOUT1_LOUTR1 BLOUT1_LOUTL2
21. Line-out Selector Jumpers (4 pin ALOUT1)
By default, these jumpers are shorted (jumpers on) to route the signal from
the audio controller to the rear panel Line Out jack to make it available for
audio out devices such as speakers or a headphone. If you connect the Intel
Front Panel audio cable to the IAPANEL connector (see next page), then
remove the caps from these two jumpers to permit automatic switching of
audio signals between the rear panel Line Out jack and the Intel audio cable.
20. Audio Input Line In Header (LINE_IN)
This connector suports audio input on left and right stereo audio channels.
NOTE: The motherboard ships with Jumper caps over pins 1-2 and 4-5.
Remove them only when making audio input connections.
