ASUS AT4NM10-I 1-16

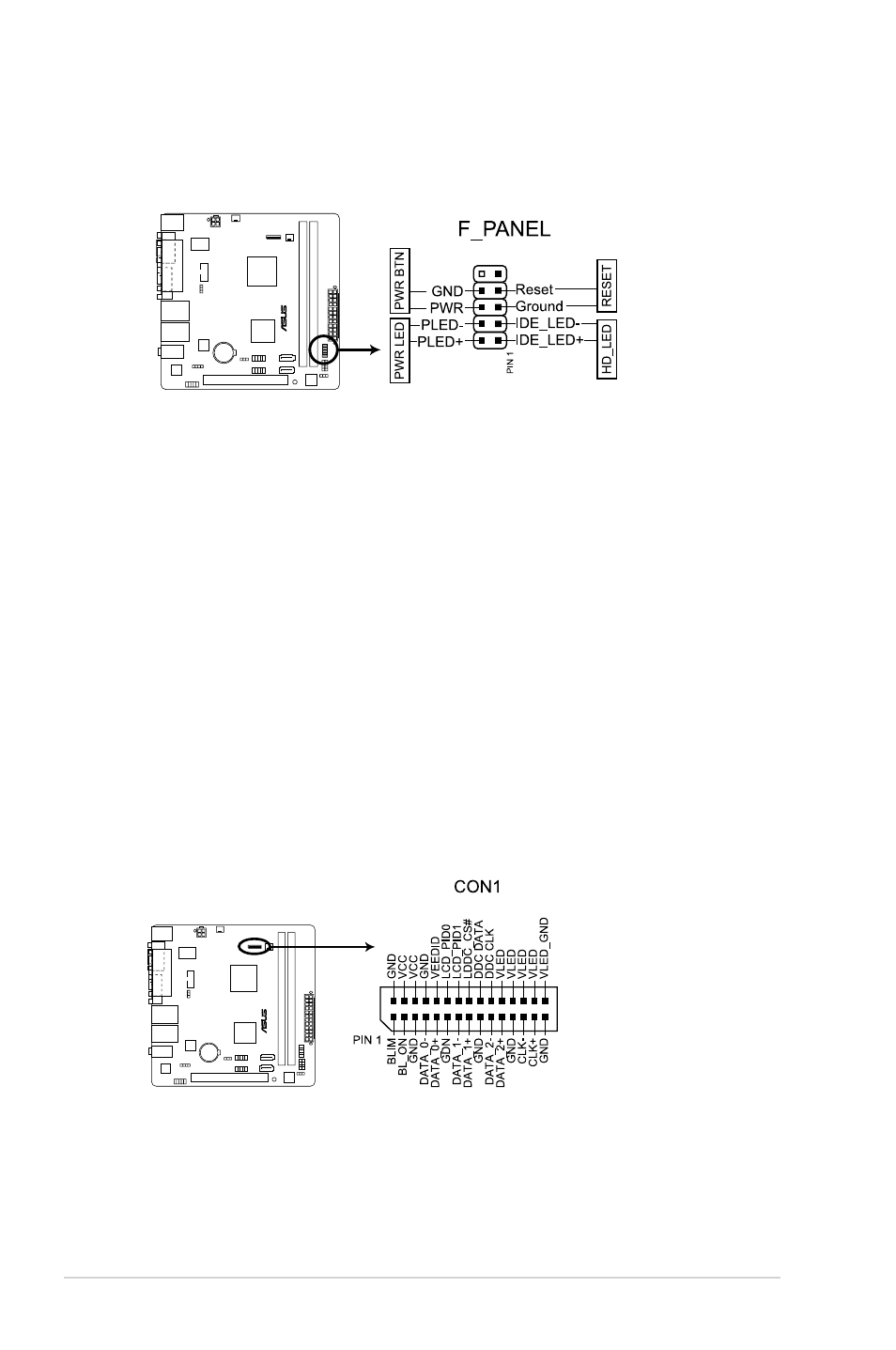

8. System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
AT4NM10-
I
AT4NM10-I System panel connector
• System power LED (2-pin PWR LED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin HD_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The HD LED lights up or flashes when data is read from or written to
the HDD.
• ATX power button/soft-off button (2-pin PWRBTN)
This connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
9. LVDS connector (30-pin CON1)
This connector is for a LCD monitor that supports Low-voltage differential signaling
(LVDS) interface.
AT4NM10-I LVDS connector
AT4NM10-
I
