1-3

Chapter 1: Product introduction

1.3

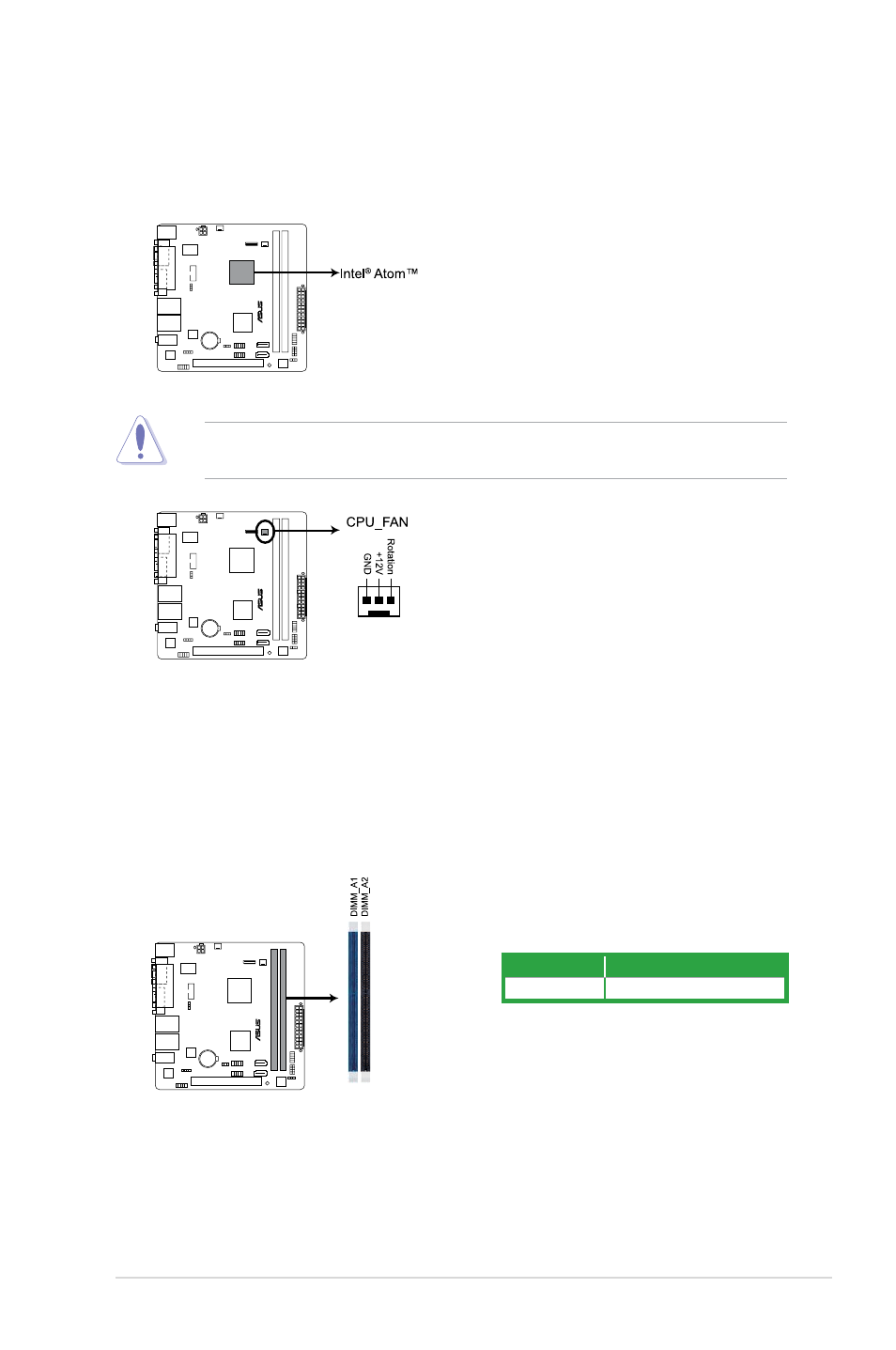

Central Processing Unit (CPU)

The motherboard comes with an onboard Intel

®

Atom™ D410 processor and a specially

designed CPU heatsink.

AT4NM10-I CPU - Atom D410

D410

AT4NM10-

I

AT4NM10-I CPU fan connector

AT4NM10-

I

If you need to use an additional CPU fan, connect the CPU fan cable to the connector on

the motherboard labeled CPU_FAN.

1.4

System memory

1.4.1

Overview

The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory Modules

(DIMM) sockets. The figure illustrates the location of the DDR2 DIMM sockets:

AT4NM10-I 240-pin DDR2 DIMM sockets

AT4NM10-

I

Channel

Sockets

Channel A

DIMM_A1 and DIMM_A2
