ASUS P4PE2-X motherboard

2-17

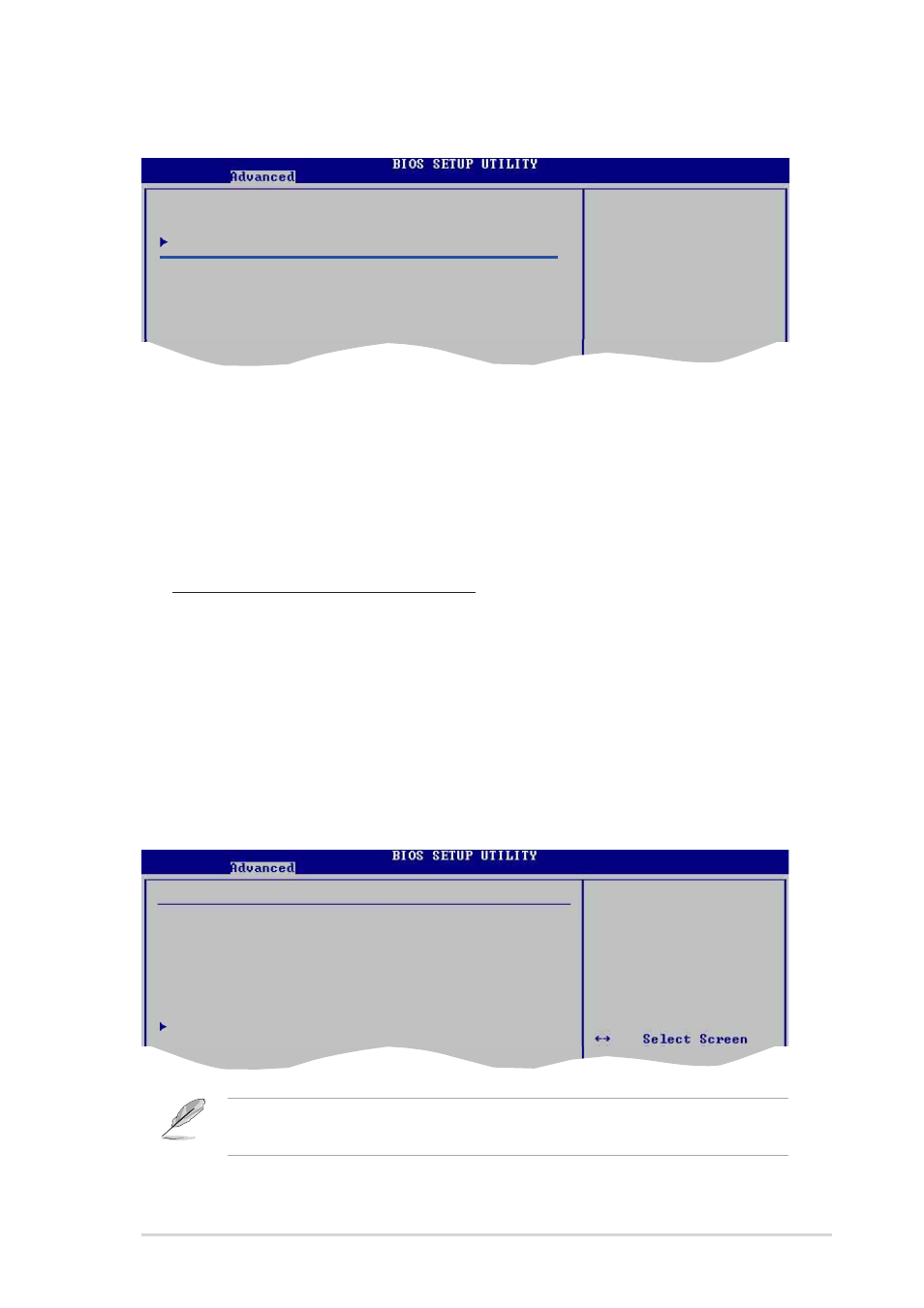

2.4.4 Onboard Devices Configuration

OnBoard AC’97 Audio [Enabled]

Allows you to enable or disable the onboard AC’97 audio controller.
Configuration options: [Enabled] [Disabled]

OnBoard LAN [Enabled]

Allows you to enable or disable the onboard LAN controller.
Configuration options: [Enabled] [Disabled]

OnBoard LAN Boot ROM [Disabled]

Allows you to enable or disable the option ROM in the onboard LAN controller.
This item appears only when the Onboard LAN item is set to Enabled.
Configuration options: [Disabled] [Enabled]

USB Configuration

The items in this menu allows you to change the USB-related features. Select an
item then press to display the configuration options.

OnBoard AC’97 Audio

[Enabled]

Onboard LAN

[Enabled]

OnBoard LAN Boot ROM

[Disabled]

USB Configuration

Serial Port1 Address

[3F8/IRQ4]

Parallel Port Address

[Disabled]

Parallel Port Mode

[Normal]

Parallel Port IRQ

[IRQ7]

OnBoard Game/MIDI Port

[Disabled]

USB Configuration

Module Version : 2.22.4-5.3
USB Devices Enabled: None

USB Function

[Enabled]

Legacy USB Support

[Auto]

USB 2.0 Controller

[Enabled]

USB 2.0 Controller Mode

[FullSpeed]

USB Mass Storage Device Configuration

The Module Version and USB Devices Enabled items show the auto-detected
values. If no USB device is detected, the item shows None.
