1-18

Chapter 1: Product introduction

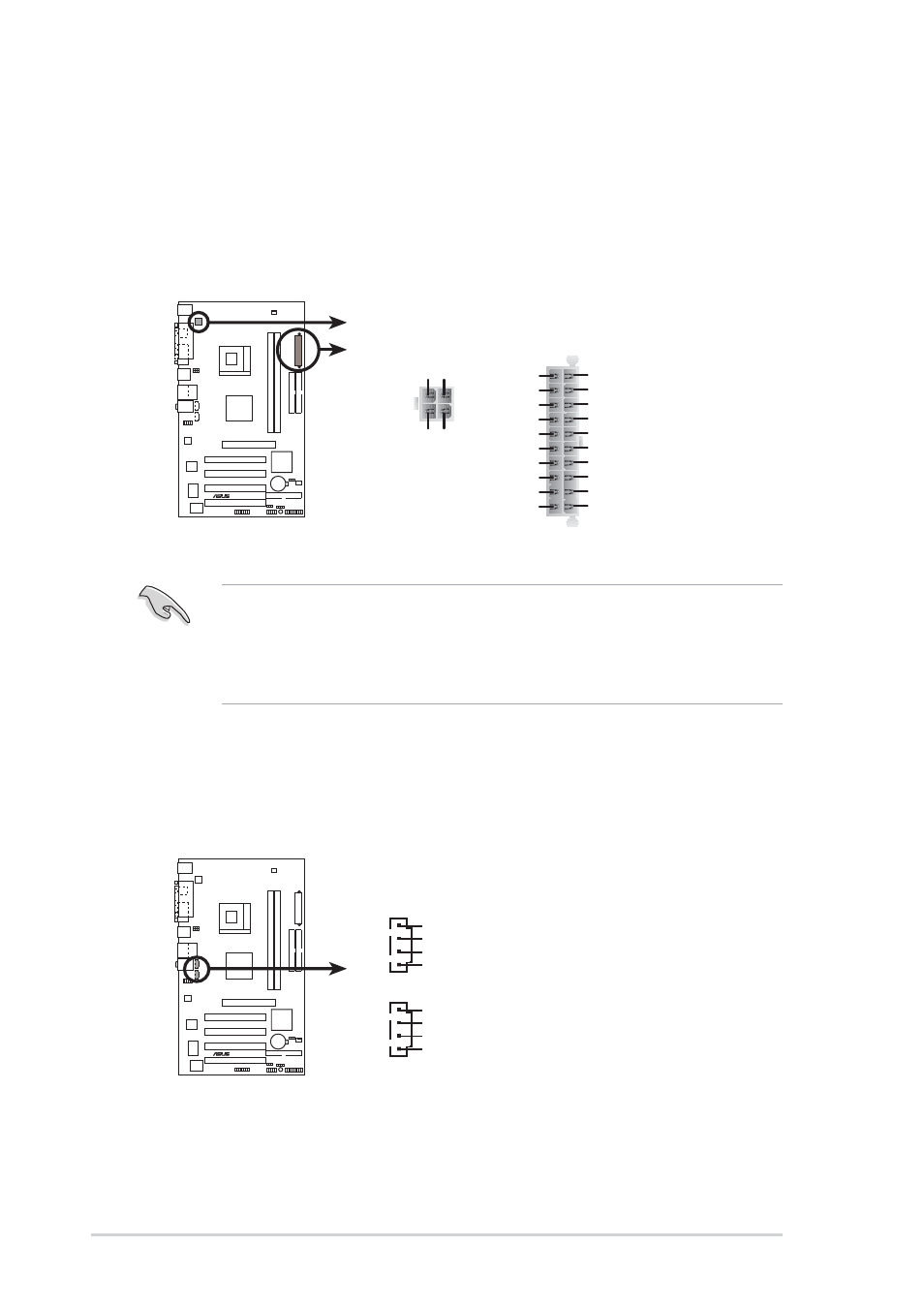

3. ATX power connectors (20-pin ATXPWR, 4-pin ATX12V)

These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.

In addition to the 20-pin ATX power connector, this motherboard requires that
you connect the 4-pin ATX +12V power plug to provide sufficient power to the
CPU.

Make sure that your ATX 12V power supply can provide 8A on the +12V lead
and at least 1A on the +5-volt standby lead (+5VSB). The minimum
recommended wattage is 230W, or 300W for a fully configured system. The
system may become unstable and may experience difficulty powering up if the
power supply is inadequate.

4. Internal audio connectors (4-pin CD, AUX)

These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.

P4PE2-X

®

P4PE2-X ATX Power Connector

ATXPWR

ATX12V

+12V DC GND

+12V DC GND

Pin 1

+3.3VDC

-12.0VDC

COM

PS_ON#

COM
COM

COM

-5.0VDC

+5.0VDC

+5.0VDC

PWR_OK

+12.0VDC

+3.3VDC

+3.3VDC

COM

+5.0VDC

COM

+5.0VDC

COM

+5VSB

P4PE2-X

®

P4PE2-X Internal Audio Connectors

CD(Black)

AUX(White)

Right Audio Channel

Left Audio Channel

Ground

Ground

Right Audio Channel

Left Audio Channel

Ground

Ground
