Page 58

2-40

Chapter 2: Hardware information

Chapter 2

2.3.10

Rear panel connection

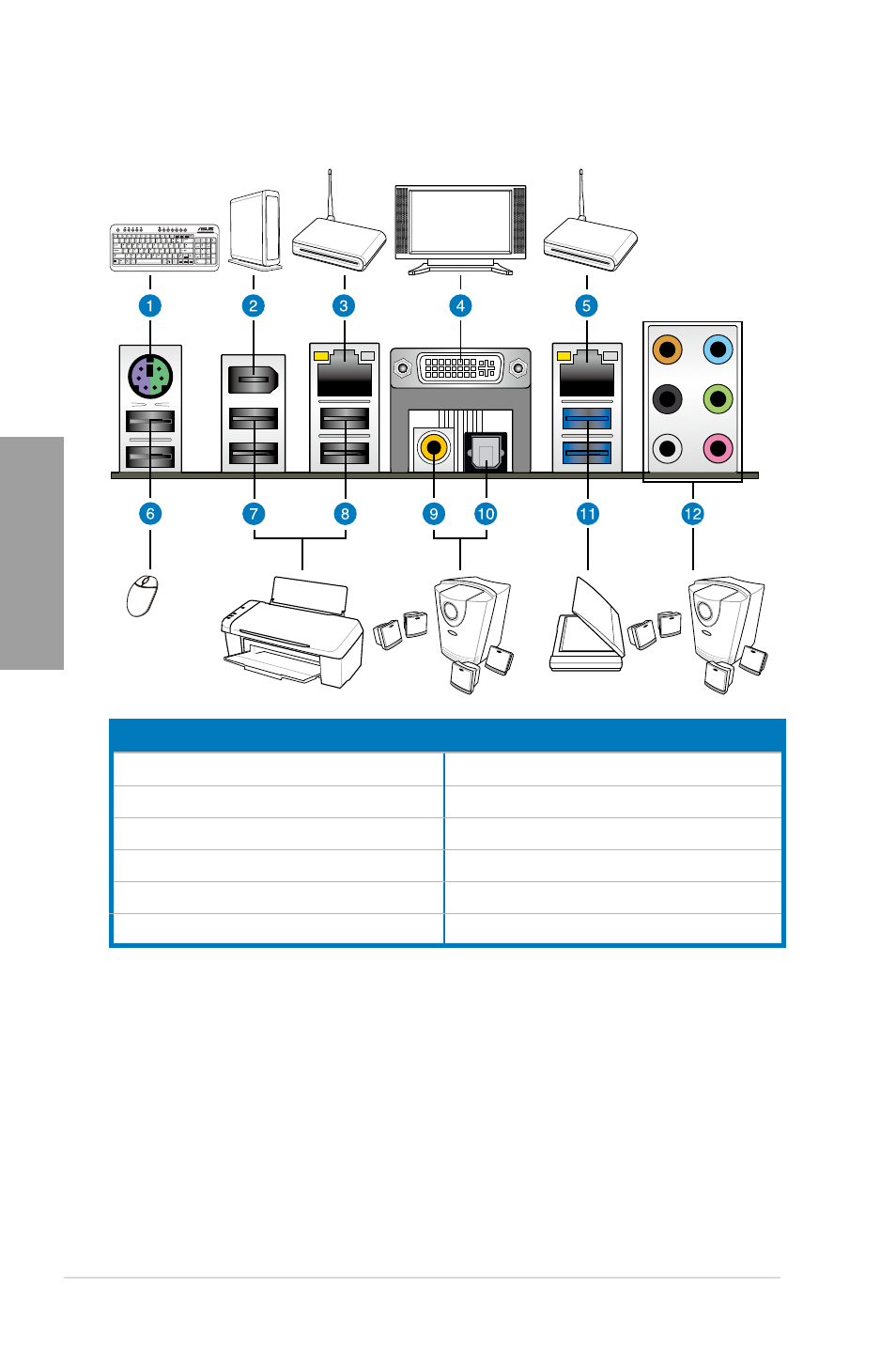

Rear panel connectors

1. PS/2 mouse and keyboard port

7. USB 2.0 ports 7 and 8

2. IEEE 1394a port

8. USB 2.0 ports 5 and 6

3. LAN (RJ-45) port 2*

9. Coaxial S/PDIF Out port

4. DVI port

10. Optical S/PDIF Out port

5. LAN (RJ-45) port 1*

11. USB 3.0 ports 3 and 4

6. USB 2.0 ports 9 and 10

12. Audio I/O ports**

*and **: Refer to the tables on the next page for LAN port and audio port definitions.
