2-24 Chapter 2: Hardware information
Refer to the audio configuration table below for the function of the audio ports in
2, 4, 6, or 8-channel configuration.
9. Microphone port (pink). This port connects a microphone.
10. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio configuration.
Audio 2, 4, 6, or 8-channel configuration
11. USB 2.0 ports 1 and 2, 3 and 4. These 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
Connect the IR receiver ONLY to USB port 3 and 4, which support remote
control function. Plugging any other USB devices to these two ports will turn on
the computer.

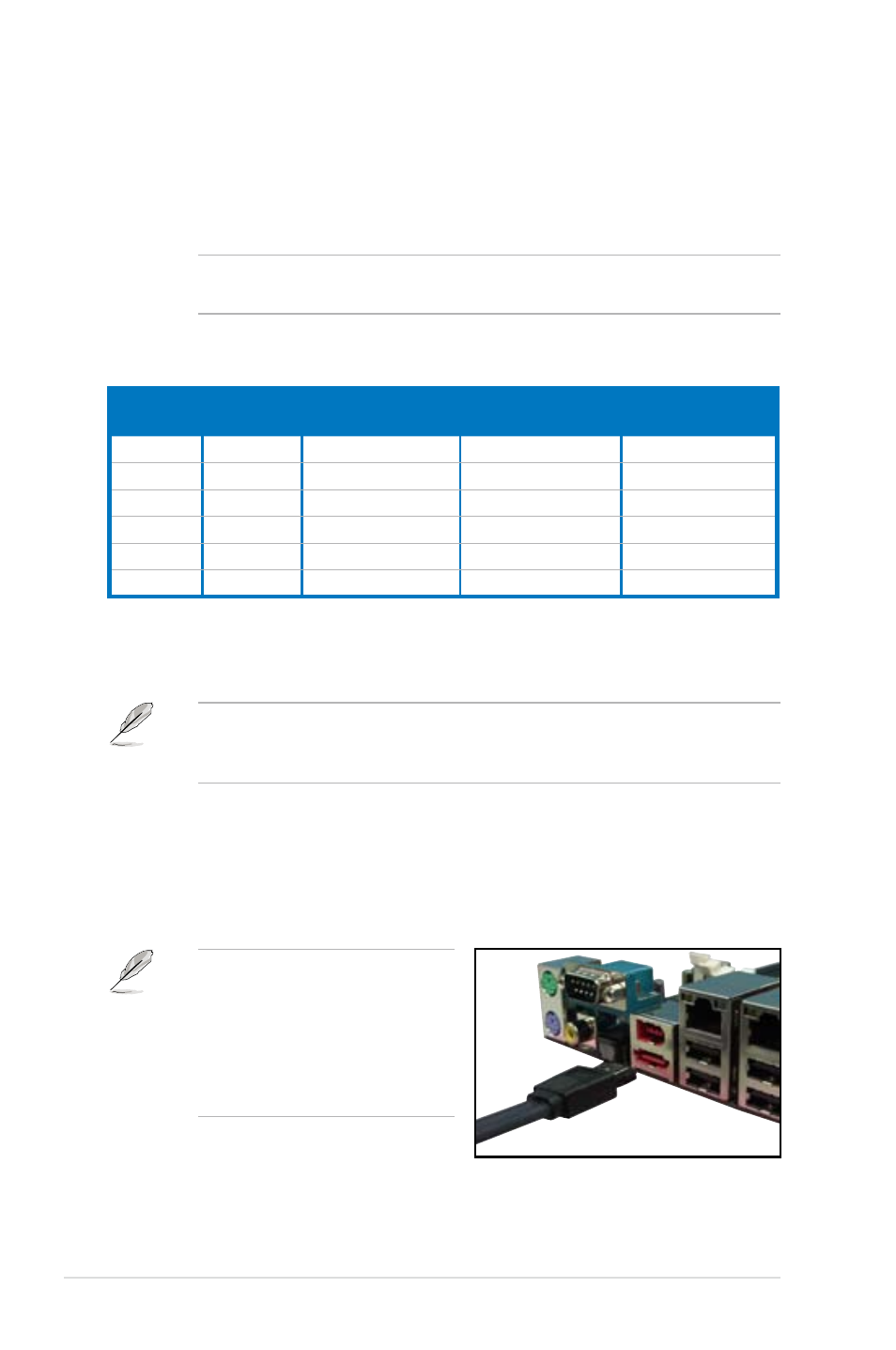

12. External SATA port. This port connects to an external SATA box or a Serial
ATA port multiplier. This port supports a Serial ATA hard disk drive that you
can combine with an external Serial ATA 3.0 Gb/s device to configure a RAID
0, RAID 1, or JBOD set through the onboard Silicon Image ® SATA RAID
controller.
The external SATA port supports
external Serial ATA
3.0 Gb/s devices. Longer
cables support higher power
requirements to deliver signal up
to two meters away, and enables
improved hot-swap function.
Port
Headset
2-channel 4-channel
6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Ou Rear Speaker Out
Gray – – – Side Speaker Out
