ROG MAXIMUS IV GENE-Z/GEN3 3-25

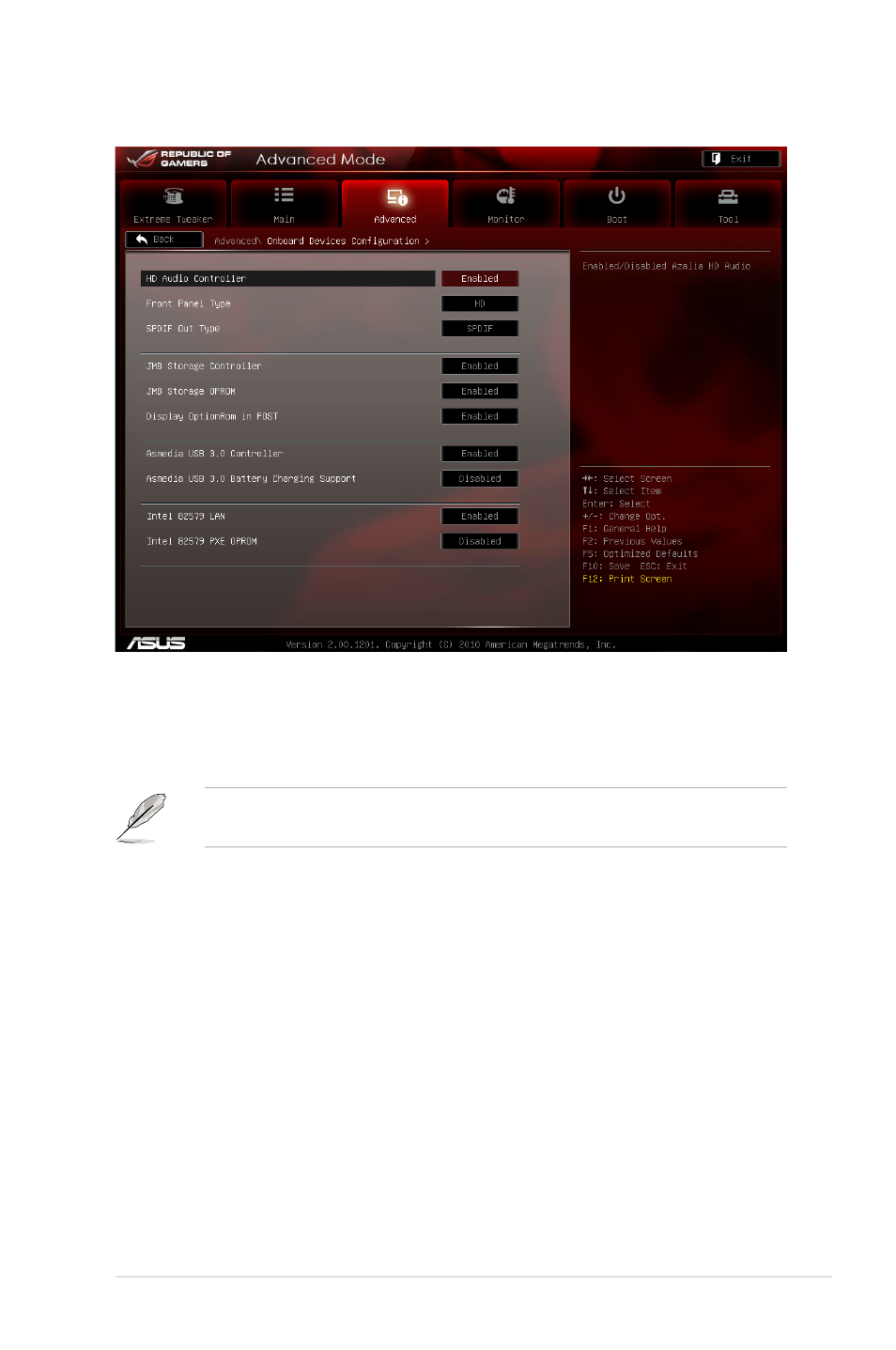

3.�.� Onboard Devices Configuration
HD Audio Controller [Enabled]
[Enabled] Enables the High Definition Audio Controller.
[Disabled] Disables the controller.
The following two items appear only when you set the HD Audio Controller
item to [Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or
high-definition audio depending on the audio standard that the front panel audio
module supports.
[HD]
Sets the front panel audio connector (AAFP) mode to high
definition audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy
AC’97.
SPDIF Out Type [SPDIF]
[SPDIF] Set the SPDIF OUT mode to SPDIF.
[HDMI] Set the SPDIF OUT mode to HDMI.
