2.3.10 Rear panel connection
1
6 7 8 9 11 12 13
2
10
3 4 5

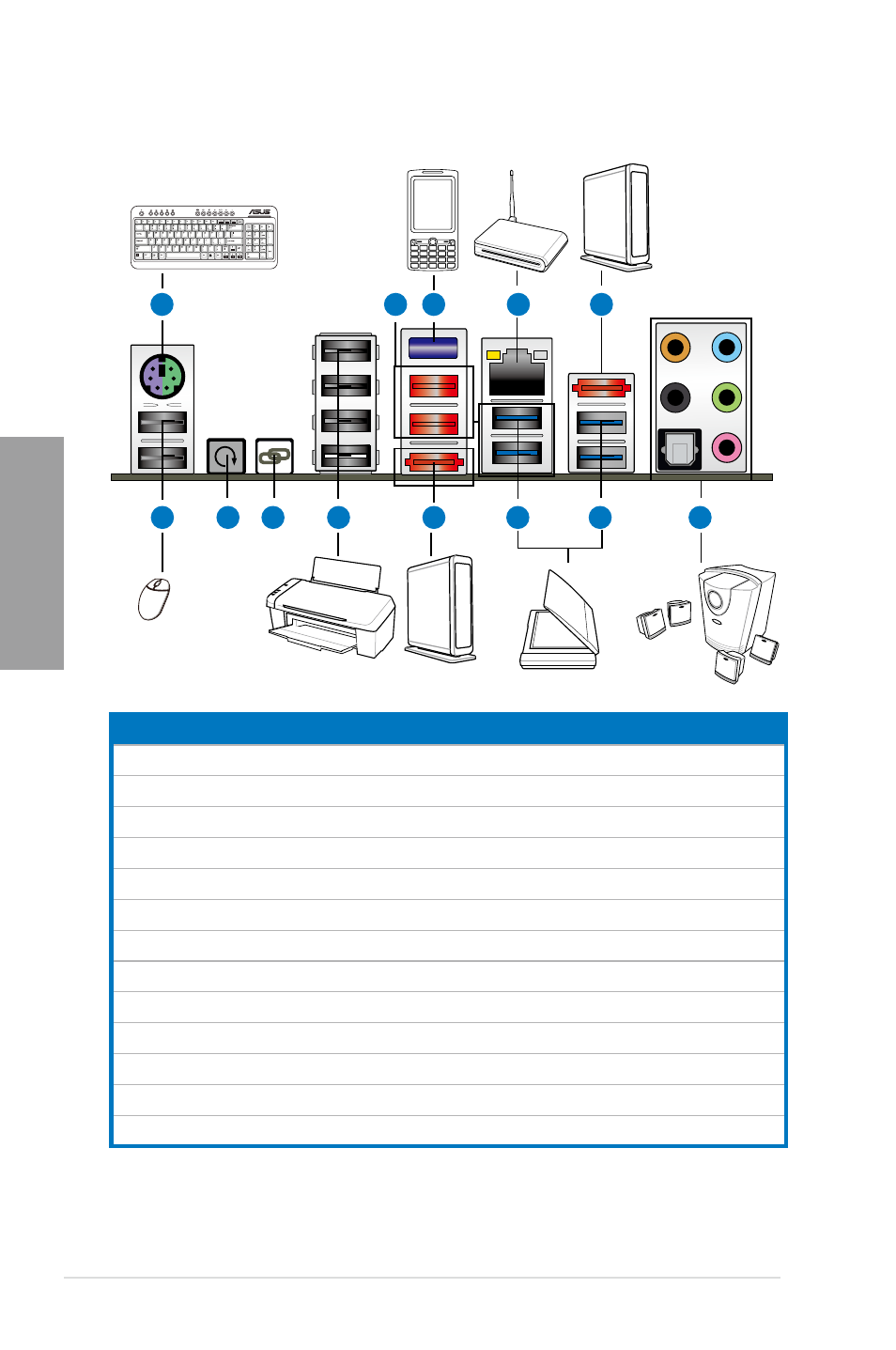

Rear panel connectors
1. PS/2 mouse and keyboard port
2. USB 2.0 ports 7 and 8
3. Bluetooth module
4. LAN (RJ-45) port*
5. External SATA port 2
6. USB 2.0 ports 1 and 2
7. Clear CMOS switch
8. ROG Connect switch
9. USB 2.0 ports 3 to 6 (port 6 is also for ROG Connect)
10. External SATA port 1
11. USB 3.0 ports 1 and 2
12. USB 3.0 ports 3 and 4
13. Audio I/O ports with Optical S/PDIF Out port**
* and **: Refer to the tables on the next page for LAN port LED, and audio port definitions.
