1.5.3

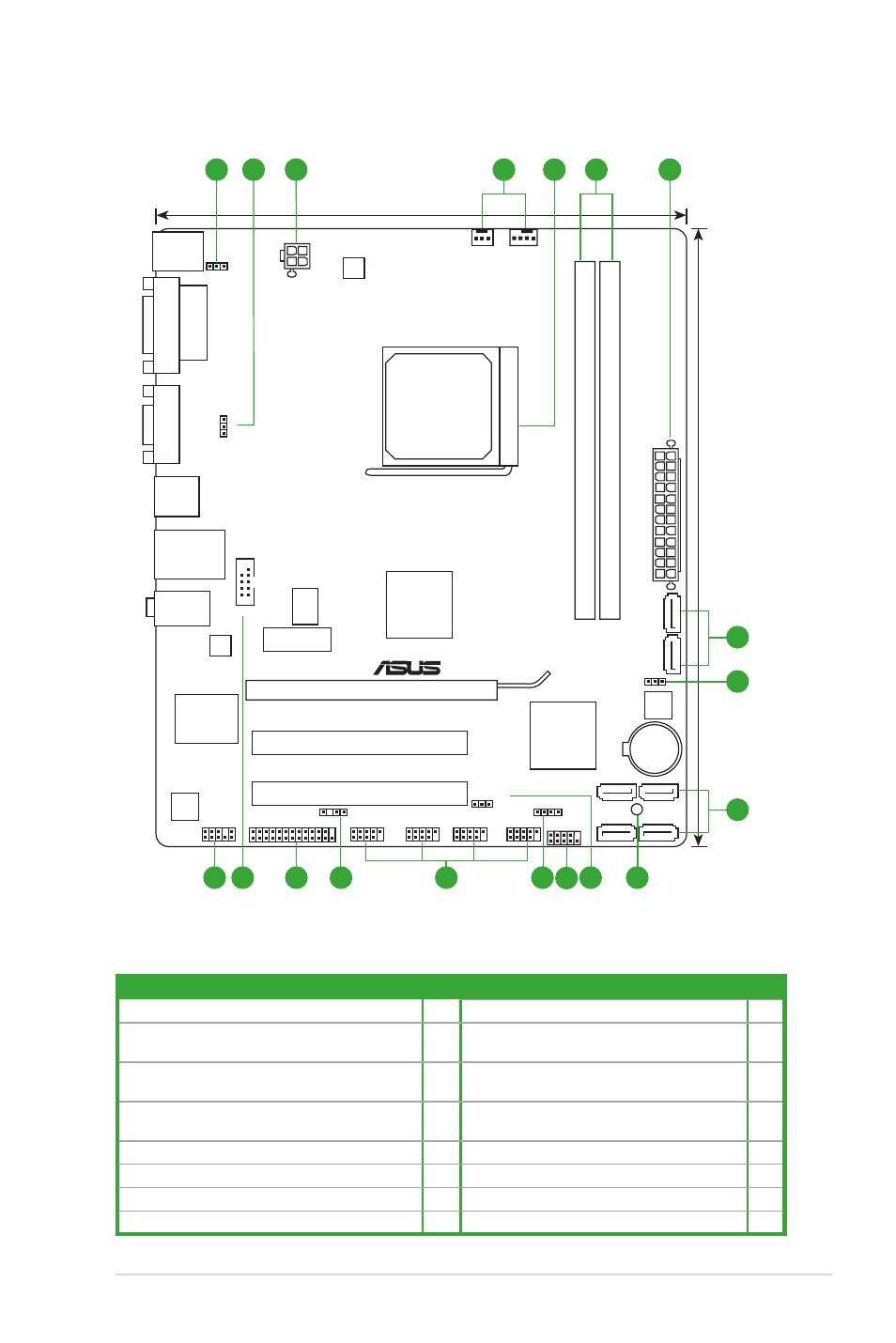

Motherboard layout
M5A78L-M LE
PCIEX16
PCIEX1_1
PCI2
PCI1
USB1112
USB910
USB78
USB56
AAFP
ATX12V
EATXPW
R
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
RTL
8111E
IC
S
9LPRS483
KBMS
16Mb
BIOS
SB_PWR
USBPW5-12
USBPW1-4
KBPWR
CLRTC
20.8cm(8.2in)
24.4cm(9.6in)
AMD
®
RS780L
AMD
®
SB710
DDR3 DIMM_A1 (64bit, 240-pin module
)
SOCKET AM3
+
DDR3 DIMM_B1 (64bit, 240-pin module
)
SATA3G_2
SATA3G_5
SATA3G_6
SATA3G_4
SATA3G_1 SATA3G_3
AUDIO
LAN1_USB12
USB34
CHA_FAN
SPDIF_OUT
LPT
COM1
EPU
F_PANEL
VG
A
DVI
SPEAKER
3
1
5
3
2
6
12
10 2
15
16
14
13
4
7
7
8
9
11
1.5.4
Layout contents
Connectors/Jumpers/Slots
Page
Connectors/Jumpers/Slots
Page
1. Keyboard power (3-pin KBPWR)
1-19 9. Onboard LED (SB_PWR)
1-5
2. USB device wake-up (3-pin USBPW1-4,
USBPW5-12)
1-19 10. System panel connector (10-1 pin PANEL)
1-25
3. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
1-22 11. Speaker connector (4-pin SPEAKER)
1-25
4. CPU and chassis fan connectors (4-pin
CPU_FAN, 3-pin CHA_FAN)
1-27 12. USB connectors (10-1 pin USB56, USB78,
USB910, USB1112)
1-26
5. AMD CPU socket
1-8
13. Digital audio connector (4-1 pin SPDIF_OUT) 1-26
6. DDR3 DIMM sockets
1-11 14. LPT connector (26-1 pin LPT)
1-23
7. Serial ATA connectors (7-pin SATA3G_1~6)
1-24 15. Serial port connector (10-1 pin COM1)
1-23
8. Clear RTC RAM (CLRTC)
1-18 16. Front panel audio connector (10-1 pin AAFP) 1-21
ASUS M5A78L-M Series
1-7
