Asus M4N78-AM V2 User Manual
Page 19
2.

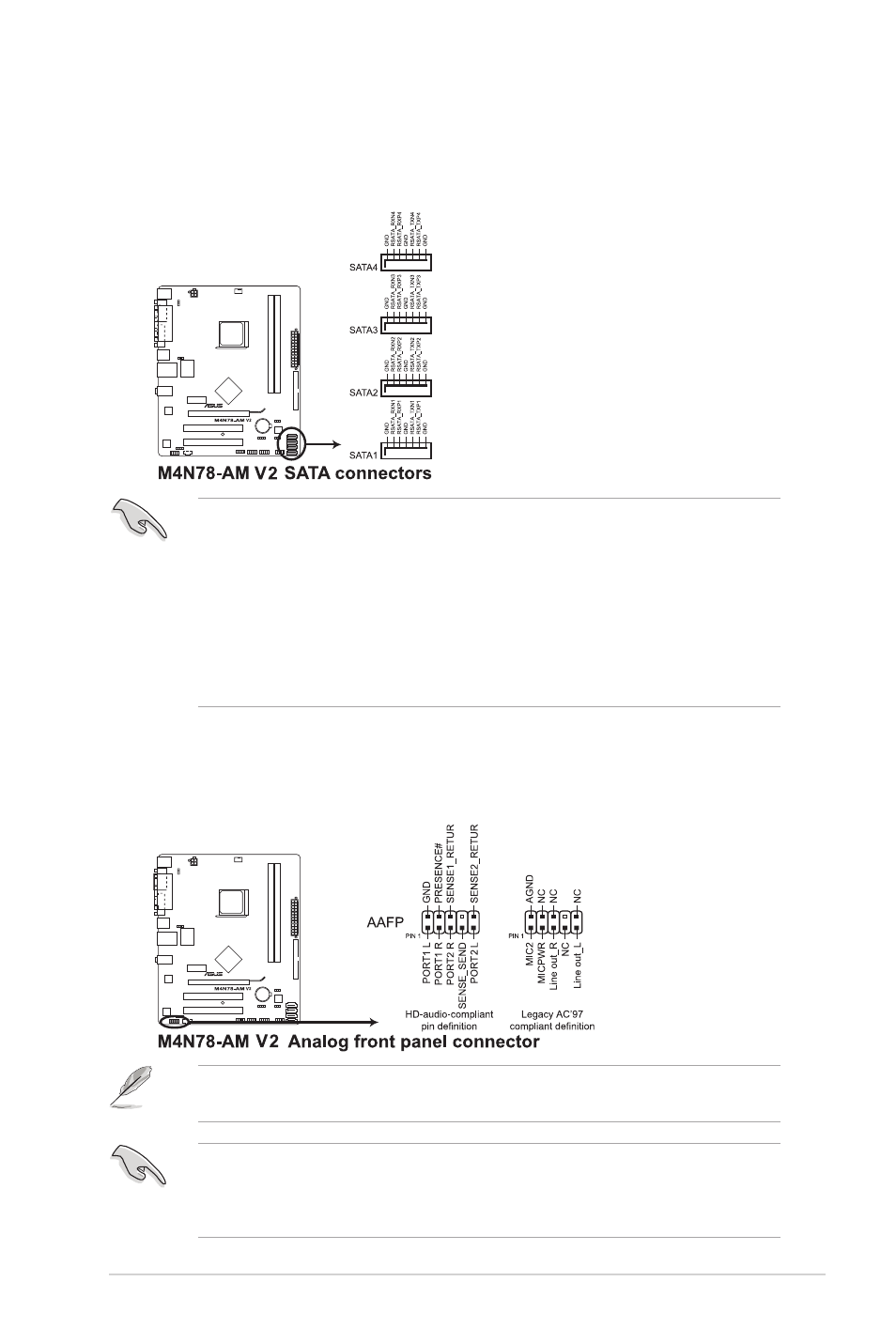

Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk
and optical disk drives. The Serial ATA 3Gb/s is backward compatible with Serial ATA
1.5Gb/s specification. The data transfer rate of the Serial ATA 3Gb/s is faster than that
of the standard parallel ATA (133MB/s).
• Install the Windows
®
XP Service Pack 1 or later versions before using Serial ATA.
• The motherboard does not provide a floppy disk drive connector. You could use a USB
floppy disk drive when installing Windows
®
XP operating system on a hard disk drive
that includes a RAID/AHCI set.
• Due to Windows
®
XP limitation, Windows
®
XP may not recognize the USB floppy disk
drive.
• For more details on RAID/AHCI, refer to the RAID/AHCI Supplementary Guide included
in the folder named Manual in the support DVD.
3.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Definition Audio or AC`97 audio standard.
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard high-definition audio capability.
If you want to connect a high-definition front panel audio module to this connector, ensure
that the Front Panel Select item in the BIOS is set to [HD Audio]. If you want to connect
an AC97 front panel audio module to this connector, set the item to [AC97]. See page 2.4.3
Chipset for details.
1-10
ASUS M4N78-AM V2
