1-26 Chapter 1: Product introduction
1.10 Connectors

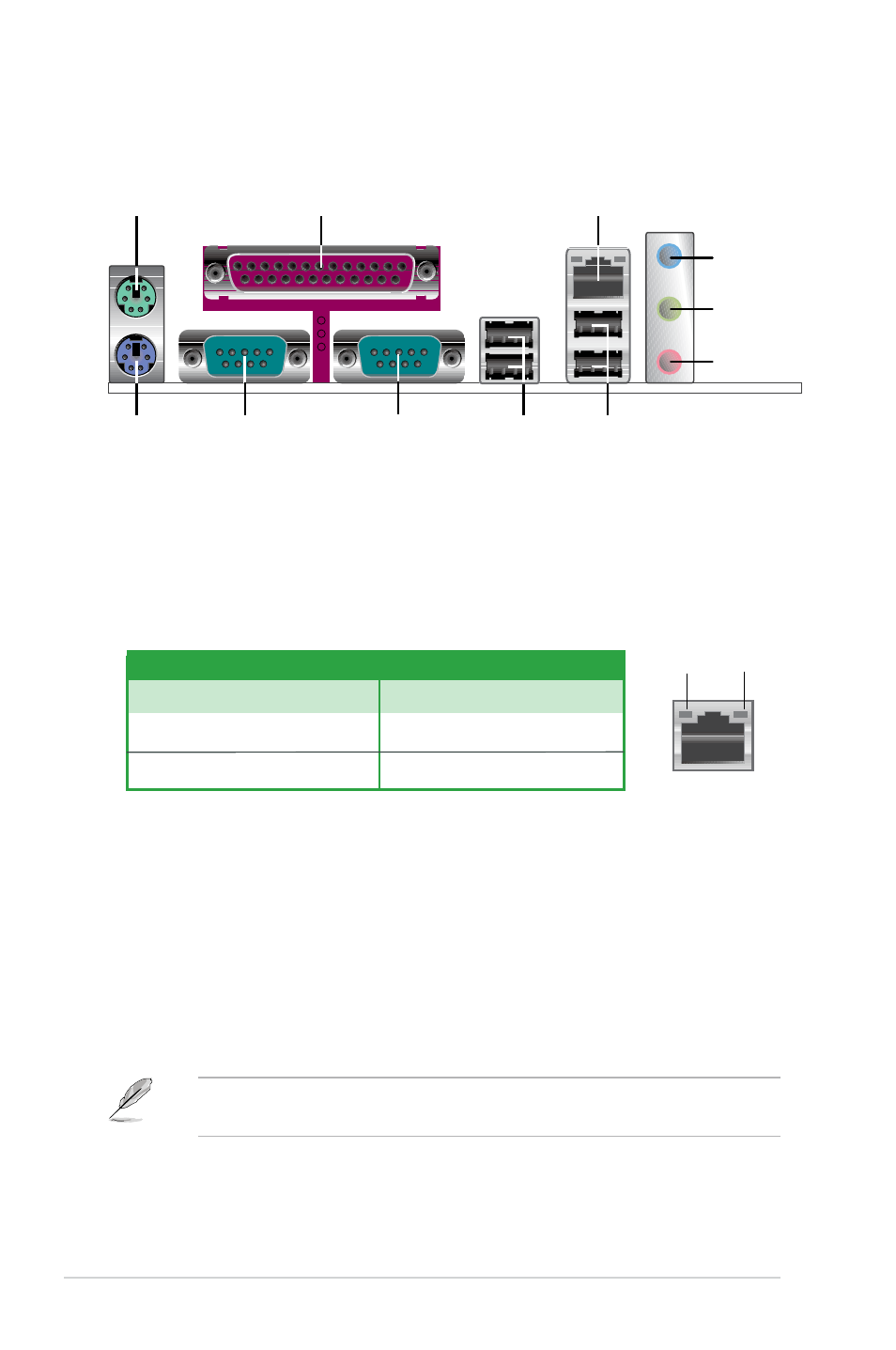

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. This port allows Network (LAN) through a network hub.
4. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel and 6-channel configuration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink). This port connects a microphone. In a 6-channel
configuration, the function of this port becomes Center/Bass.
Refer to the audio configuration table below for the function of the audio ports in
2, 4, or 6-channel configuration.
1
11
4
5
6
7
2 3
8 10 9
LAN port LED indications
LAN port
GREEN ORANGE ORANGE LED GREEN LED
Status Description Status Description
OFF No link OFF No Link
Orange 100 Mbps connection Green 10 Mbps connection
