ASUS P8P67 LX 1-32

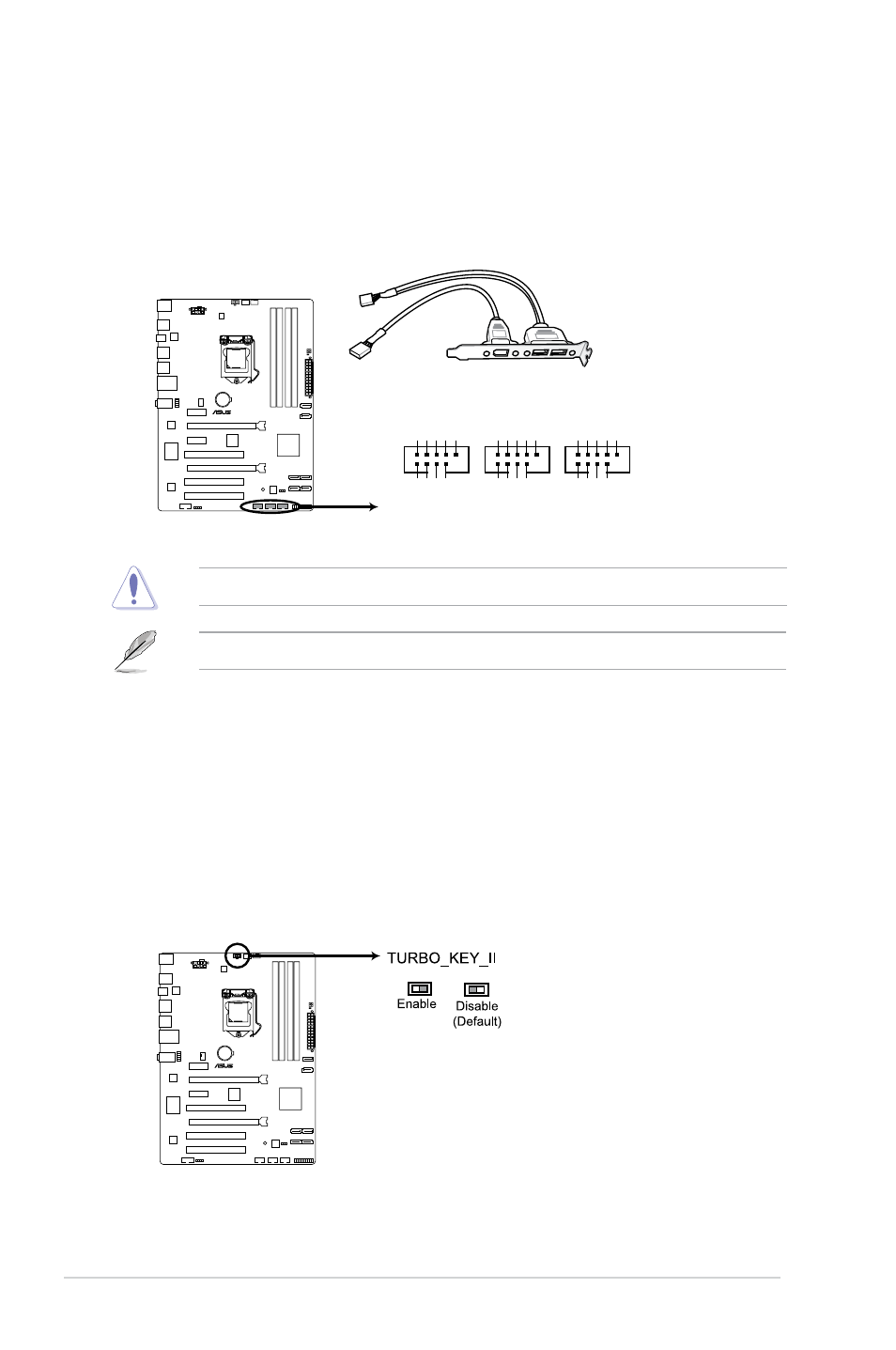

9. USB connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB module cable is purchased separately.
P8P67 LX
P8P67 LX USB2.0 connectors
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11- USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V USB_P9- USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
USB78
PIN 1
1. Turbo Key II switch
This switch allows you to enable or disable the Turbo Key II function.
P8P67 LX
P8P67 LX Turbo Key II switch
1.11 Onboard switches
Onboard switches allow you to fine-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to
enhance system performance.
