ASUS P8P67 LX 1-30
7. Intel ® P67 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
configurations with the Intel ® Rapid Storage Technology through the onboard Intel ® P67
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows ® XP Service Pack 2 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows ® XP SP2 or later version.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Configuration for details.
P8P67 LX
GN
D
RSATA_TXP4 RSATA_TXN4
GN
D
RSATA_RXP
4
RSATA_RXN4
GN
D
SATA3G_4 SATA3G_3
SATA3G_2 SATA3G_1
GN
D
RSATA_TXP3 RSATA_TXN3
GN
D
RSATA_RXP
3
RSATA_RXN3
GN
D
GN
D
RSATA_RXN2 RSATA_RXP2 GN
D
RSATA_TXN2 RSATA_TXP2 GN
D
GN
D
RSATA_RXN1 RSATA_RXP1 GN
D
RSATA_TXN1 RSATA_TXP1 GN
D

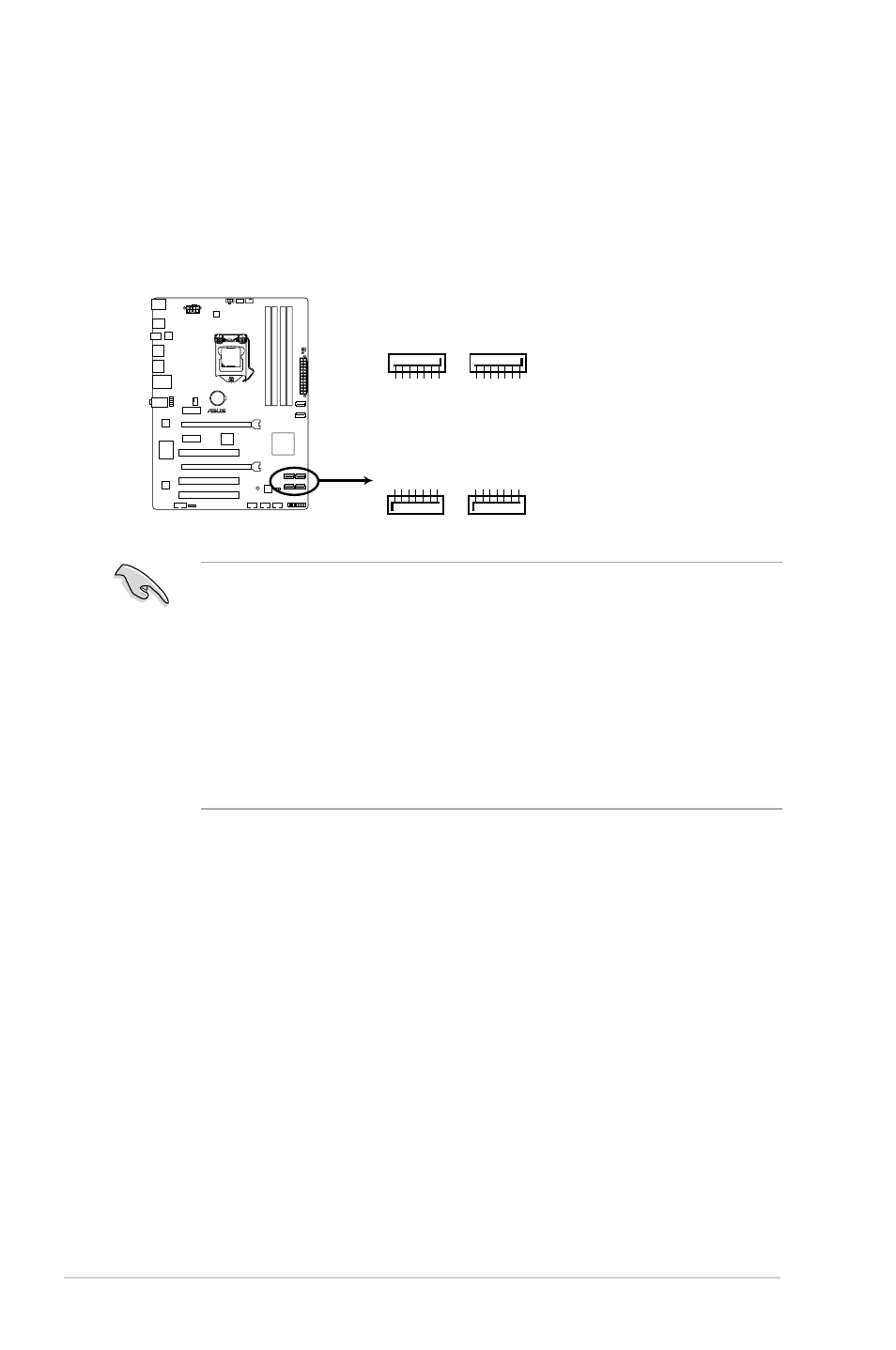

P8P67 LX SATA 3.0Gb/s connectors
